DC2222A-B
LTC2508-32 Demo Board | 32-Bit Over-Sampling ADC with Configurable Digital Filter (Requires DC590, DC2026 or DC890)
トップへ
製品概要
製品概要

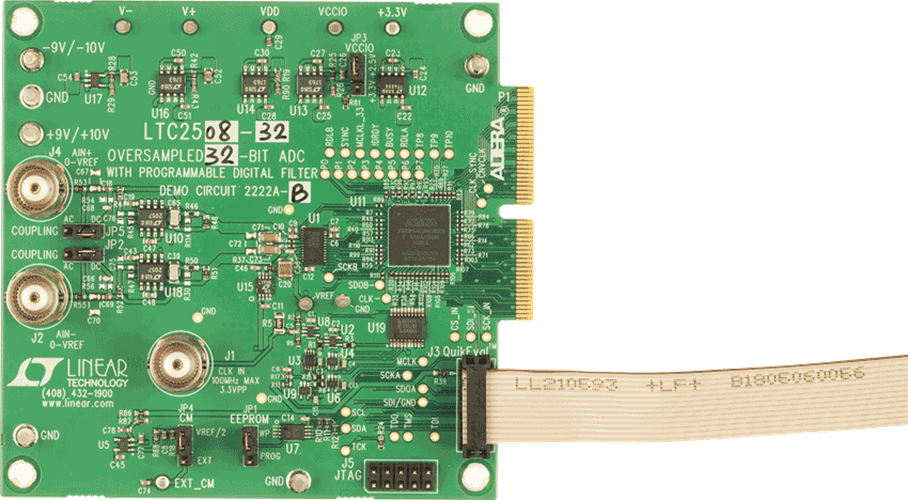

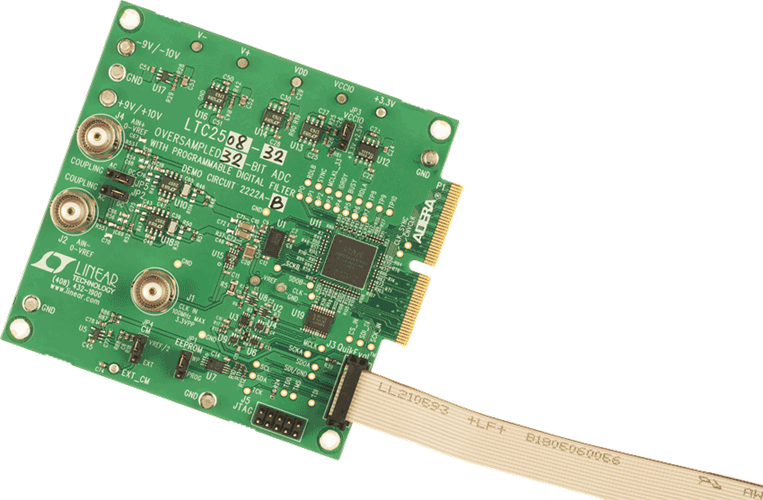

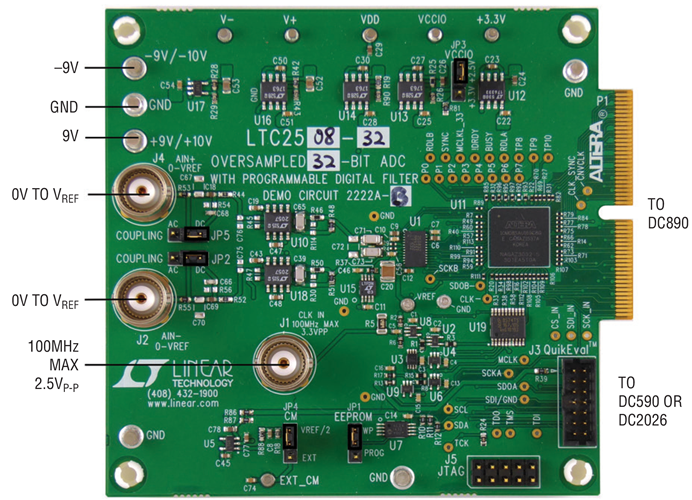

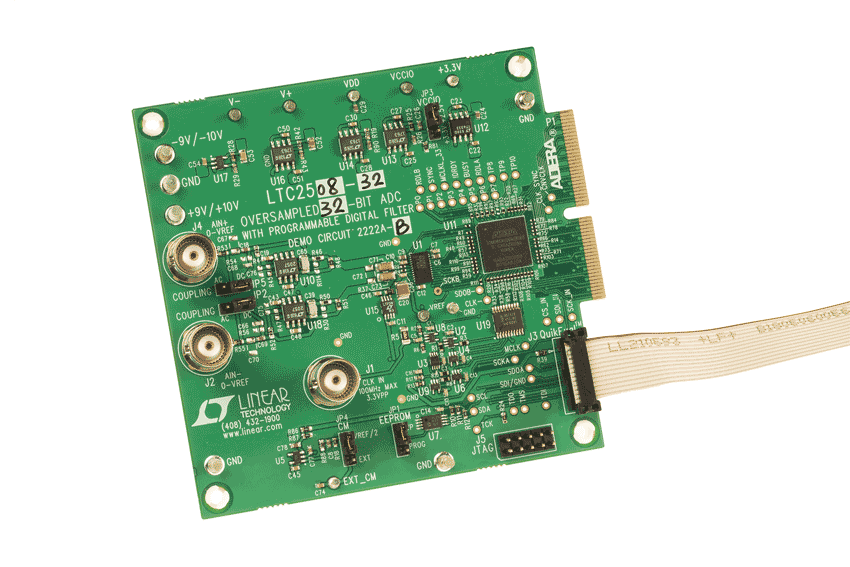

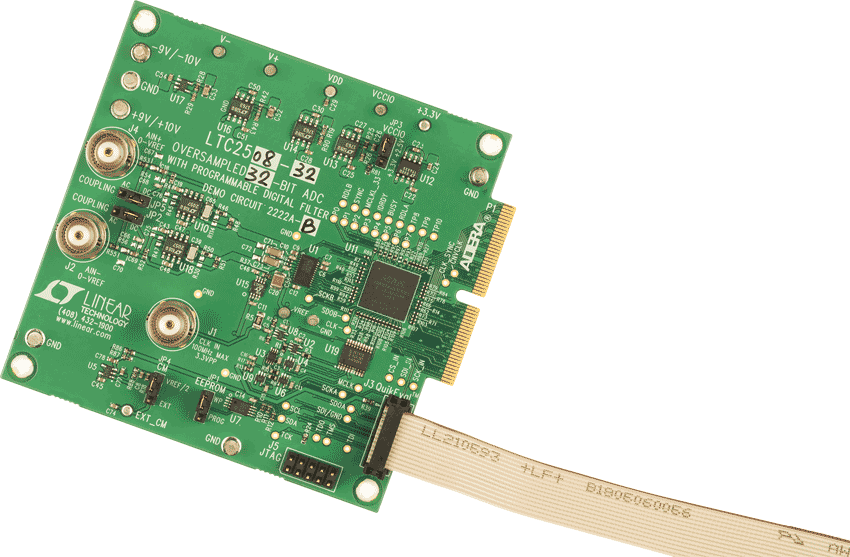

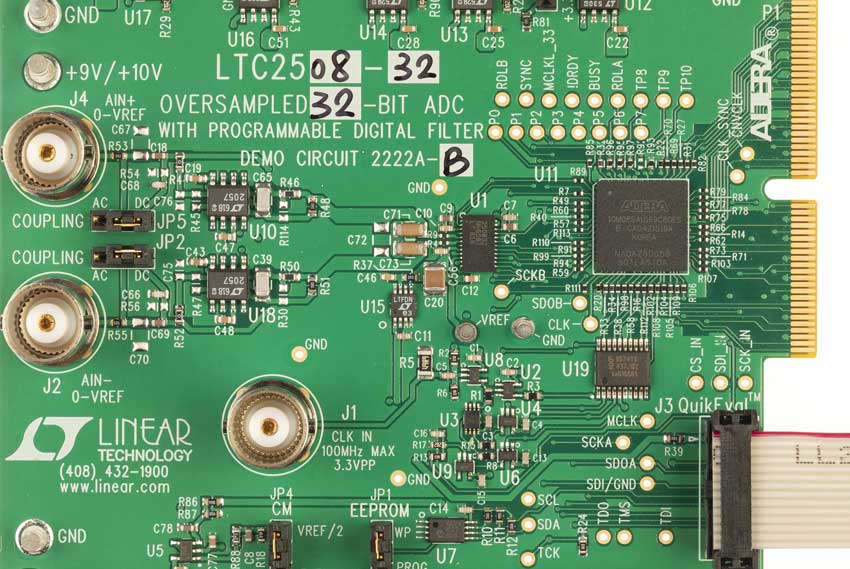

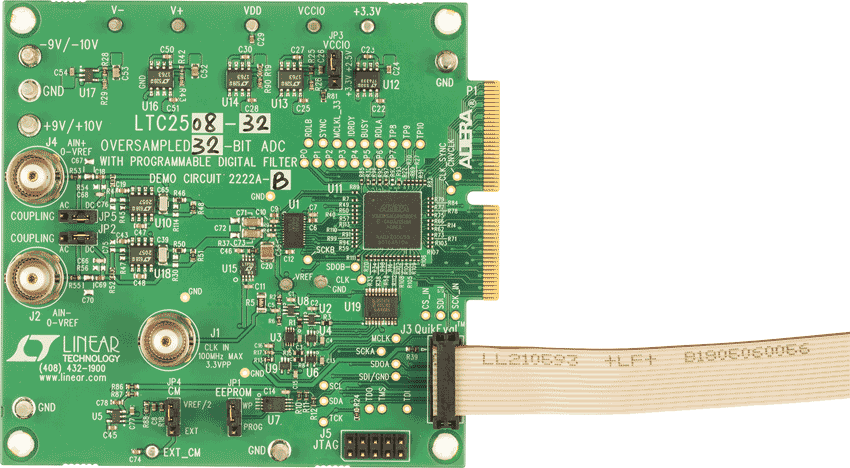

Demonstration circuit 2222A features the LTC2508-32 and LTC2512-24 ADCs. The LTC2508-32 and LTC2512-24 are low power, low noise, high speed, 32-bit/24-bit SAR ADCs with an integrated configurable digital averaging filter that operate from a single 2.5V supply. The demo manual refers to the LTC2508-32 but applies to both parts, the only difference being sample rate and number of bits. The DC2222A demonstrates the DC and AC performance of the LTC2508-32 in conjunction with the DC590 or DC2026 QuikEval™ and DC890 PScope™ data collection boards. Use the DC590 or DC2026 to demonstrate DC performance such as peak-to-peak noise and DC linearity.
関連資料
-
DC2222A - Schematic2016/12/14PDF237K
-
DC2222A - Demo Manual2017/01/16PDF766K
-
DC2222A - Design Files2016/12/14ZIP2M
