DC1794A
LTM2885 Demo Board | 6.5kV Isolated RS485/RS422 μModule Transceiver + Power
トップへ
製品概要
製品概要
Demonstration circuit 1794A is an isolated RS485/RS422 μModule® transceiver + power featuring the LTM2885. The demo circuit is a 6500VRMS galvanically isolated RS485/ RS422 transceiver interface. The demo circuit features an EMI optimized circuit configuration and printed circuit board layout. The demo circuit operates from a single external supply on VCC. The part generates the output voltage VCC2 and communicates all necessary signaling across the isolation barrier using LTC’s isolator μModule technology.
関連資料
-

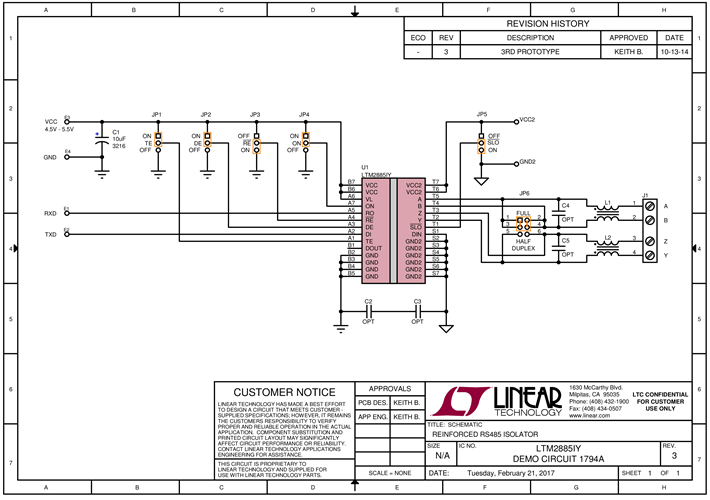

DC1794A - Schematic2017/02/21PDF20K
-
DC1794A - Demo Manual2016/12/13PDF281K
-
DC1794A - Design Files2017/02/21ZIP302K
