LTM8047 Demo Board | 725VDC Isolated uModule DC/DC Converter; 4.5V ≤ VIN ≤ 30V, VOUT = 5V @ Up to 350mA
トップへ
製品概要
製品概要
The demo circuit 1693A is an isolated flyback μModule® DC/DC converter featuring the LTM8047. The demo circuit is designed for a 5V output from a 4.5V to 30V input. The typical current capability of the 5V output varies with input voltage from about 110mA at VIN = 4.5V to about 350mA at VIN = 30V.
関連資料
-

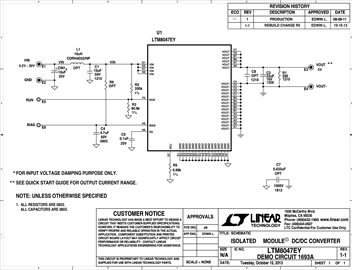

DC1693A - Schematic2014/01/15PDF28K
-
