DC1540B
LTC2977 Demo Board Set: Eight µModule Power Supply Management (Includes DC1360B + DC1361B) (Requires DC1613)
トップへ
製品概要
製品概要

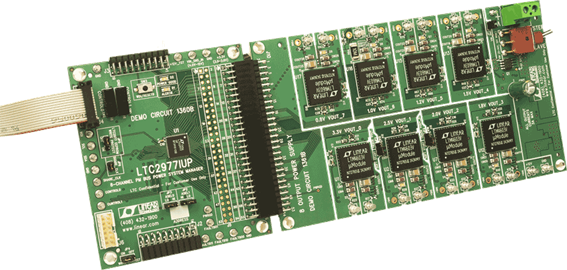

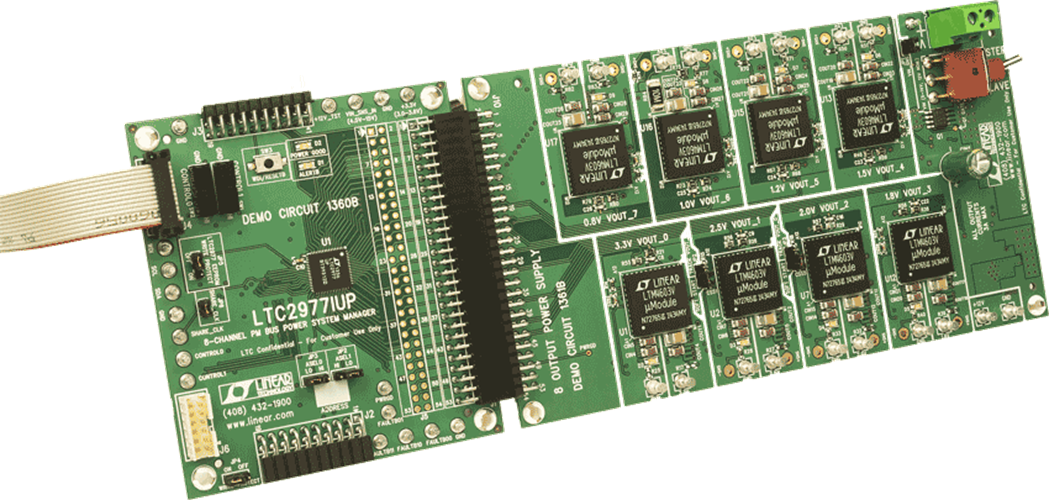

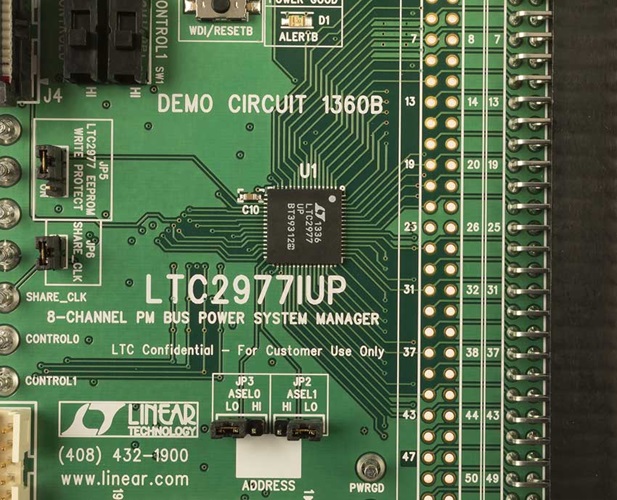

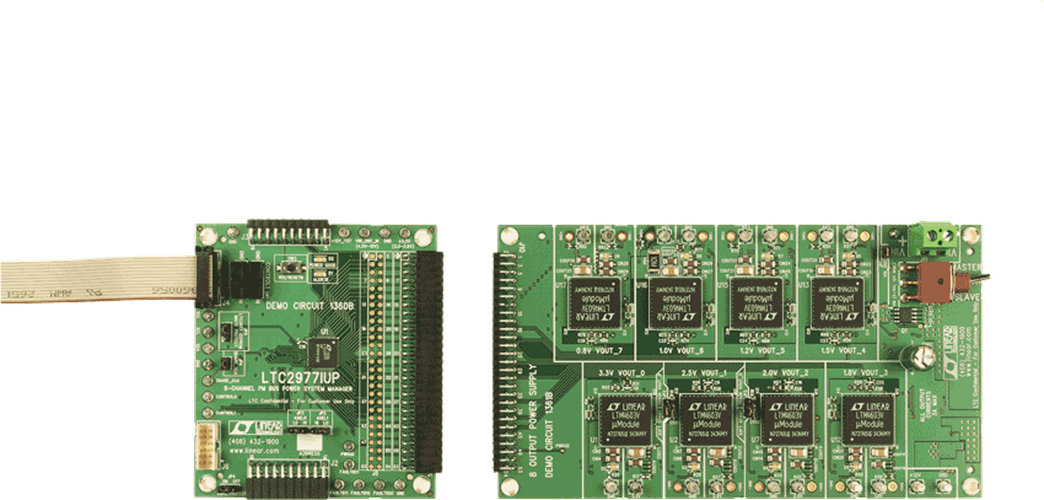

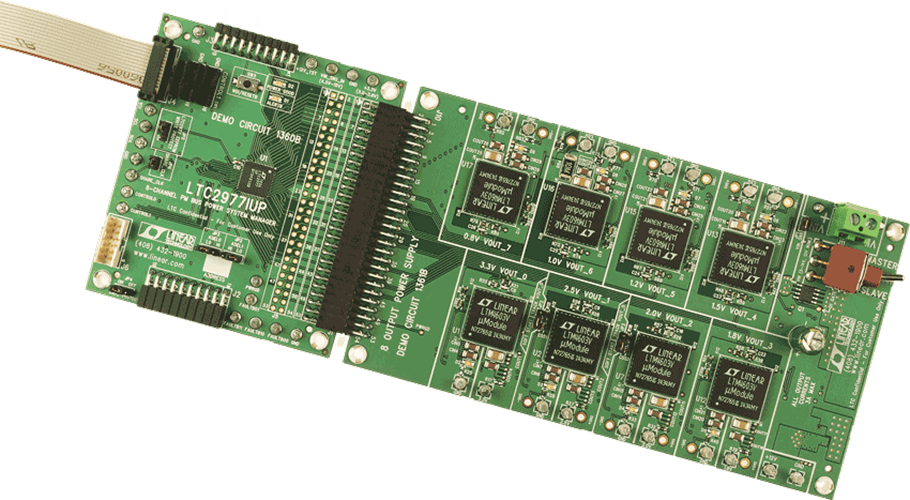

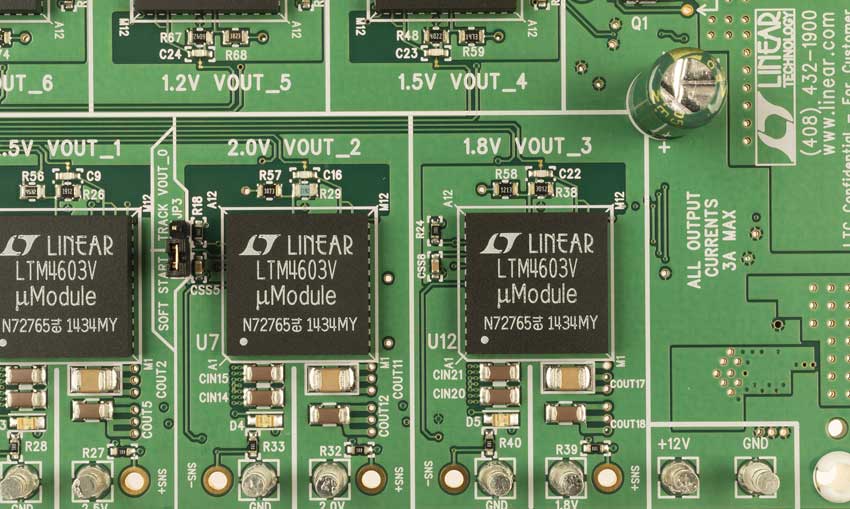

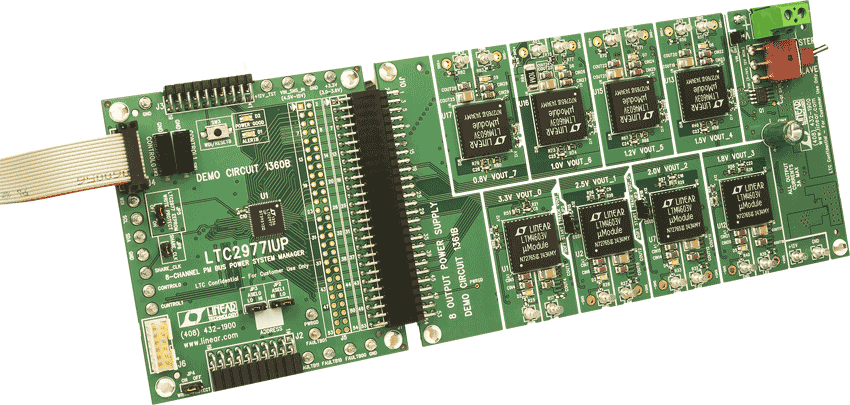

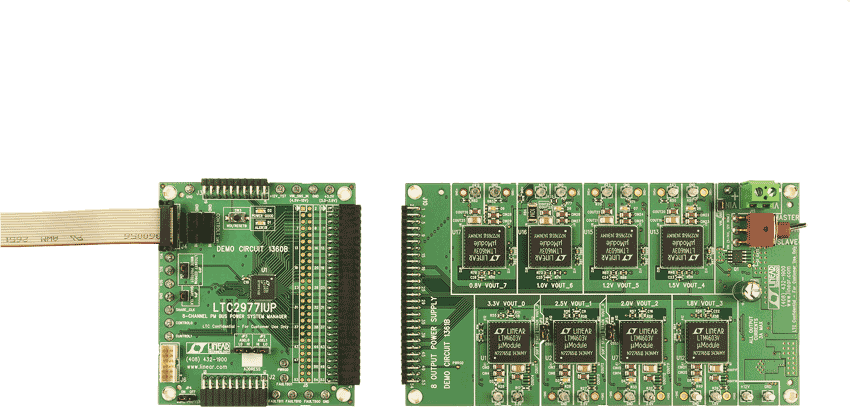

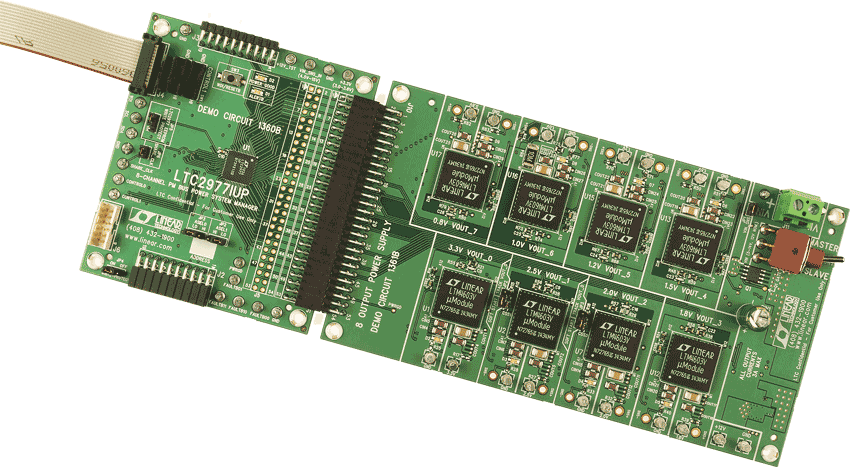

The DC1540B is a demonstration system for the LTC2977 8-channel I2C/SMBus/PMBus Power System Manager with EEPROM. It consists of 2 circuit boards namely the DC1360B and DC1361B. The DC1360B contains all the circuitry needed to insert the LTC2977 into a power system and control eight power supplies. The DC1361B contains eight power supplies (LTM4603EV) which are configured to be controlled by an LTC2977. Together these two boards form a sophisticated, 8-channel, digitally programmable power supply.
関連資料
-
LTpowerPlay®2017/11/17
-

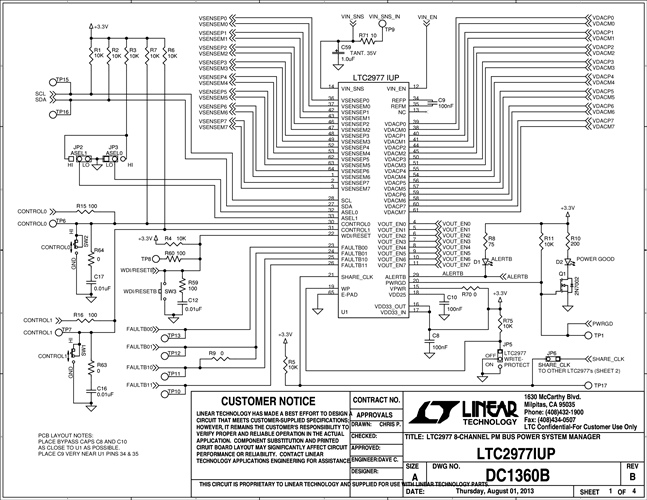

DC1540B - Schematic2016/09/06PDF338K
-
DC1540B - Demo Manual2015/05/22PDF2M
-
DC1540B - Design Files2015/05/22ZIP32M
