AN-1138: LINB DLL Programmer´s Guide

Introduction

This application note describes the library functions available in the LINBWSD.dll library. These functions can be used to create an USB-to-LIN downloader for integrated battery sensor devices. LINBWSD.dll uses Protocol 6 for Flash/EE memory programming via LIN. Protocol 6 is explained in detail in Application Note AN-946. LINBWSD.dll can be used for LIN programming with the following IBS devices:

• ADuC7032-8L
• ADuC7033
• ADuC7036DCPZ
• ADuC7039

Disclaimer

All LINBWSD library code provided by Analog Devices, Inc., including this file, is provided as is without warranty of any kind, either expressed or implied. Users assume all risk from the use of this code. It is the responsibility of the user integrating this code into an application to ensure that the resulting application performs as required and is safe.

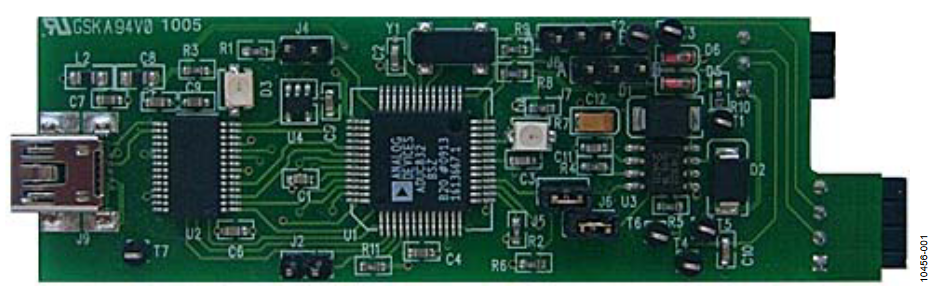

Hardware Setup

Downloader Jumper Settings

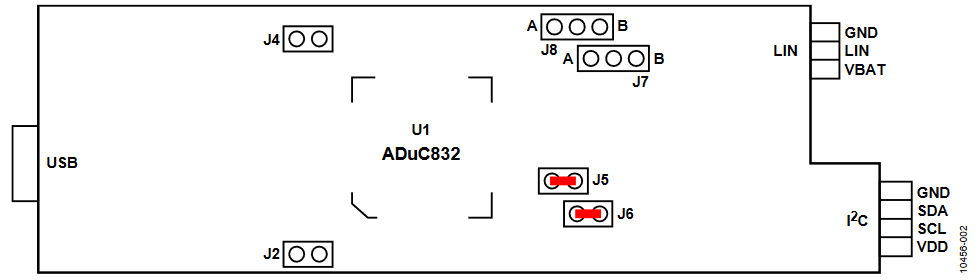

The downloader board allows two interfaces to be connected, LIN and I²C. The LIN functionality of the interface is determined by the on-board jumper connections, J5 and J6, as shown in Figure 2.

Download Sequence

LINBWSD.dll contains a security sequencer to prevent corruption of the Flash. The normal download sequence using the DLL functions follows:

• OpenDongle();
• GetDongleStatus();
• ReadDongleIdent();
• AssignNAD();


• If no default, NAD should be used
• InitLINkernel();
• ImportHexData();
• GetImportInfo();
• DoPageErase();


• Number of pages get by GetImportInfo();
• DoDataWrite();


• Number of bytes get by GetImportInfo();
• DoWriteCRC();
• DoResetKernel();


• Used if necessary
• CloseDongle();


• If no more CPUs to be programmed
• ReadByIdentifier();

GetDLLInfo

Getting the DLL version information.

void GetDLLInfo (char *pcDLLInfo, BYTE *pusStringLen)

Parameters

Return Value

There is no return value.

Remark

It is necessary that an application close the opened USB port before closing the application. If an error occurs, the DLL opens a MessageBox.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
GetDLLInfo(pMessage,&usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
MessageBox(strMessage);

OpenDongle

Opening USB port and looking for LIN-Dongle.

BYTE OpenDongle (char *pcOpenPortError, BYTE *pusStringLen)

Parameters

Return Value

The return values for OpenDongle are as follows:

• 0 = no error.
• 1 = error during opening of USB port or no LIN-Dongle connected.

Remark

If the application tries to open an already open port, the DLL ignores the command.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = OpenDongle(pMessage,&usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) 		// Error
{
	MessageBox(strMessage);
	return;
}

CloseDongle

Close USB port.

BYTE CloseDongle()

Parameters

There are no parameters.

Return Value

The return values for CloseDongle are as follows:

• 0 = no error.
• 1 = error during closing of USB port.

Remark

It is necessary that the application close the open USB port before closing the application. If an error occurs, the DLL opens a MessageBox.

Example

BYTE usResult;

usResult = closeDongle();

GetDongleStatus

Starting dongle firmware, and testing hardware and software version from dongle.

BYTE GetDongleStatus (char *pcOpenPortError, BYTE *pusStringLen)

Parameters

Return Value

The return values for GetDongleStatus are as follows:

• 0 = no error.
• 1 = error during dongle initialization or wrong dongle.

Remark

There is no remark.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = GetDongleStatus(pMessage,&usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) // Error
{
	MessageBox(strMessage);
	return;
}

DoReadDongleIdent

Reading dongle firmware information.

BYTE DoReadDongleIdent (1, char *pcDongleIdent, BYTE *pusStringLen)

Parameters

Return Value

The return values for DoReadDongleIdent are as follows:

• 0 = no error.
• 1 = error during getting dongle information.

Remark

There is no remark.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = DoReadDongleIdent(1,pMessage,&usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0)
{
	MessageBox(strMessage);
	return
}

InitLinKernel

Connecting to kernel and getting its identification.

BYTE InitLinKernel (char *pcLinInitError, BYTE *pusStringLen, BYTE *pusCPU_Ident)

Parameters

Return Value

The return values for InitLinKernel are as follows:

• 0 = no error.
• 1 = error during initialization or no LIN-Dongle connected.
• 2 = detecting wrong CPU signature.

Remark

If GetDongleStatus() failed, the application should not use this function.

If the application does not use the default NAD, the AssignNAD() should call before InitLinKernel is called.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
BYTE usCPU_Ident;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = InitLinKernel(pMessage,&usStrLen,&usCPU_Ident);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) / 	/ Error
{
	MessageBox(strMessage);
	return;
}

ImportHexData

Importing the file that should be programmed.

BYTE ImportHexData (char *cHexFilePath, char *pcImportError, BYTE *pusStringLen)

Parameters

Return Value

The return values for ImportHexData are as follows:

• 0 = no error.
• 1 = error during import.

Remark

The application should use GetImportInfo() to get information about the imported data for erase, program, and verify.

Example

char *pMessage;
char szFileName[1024];
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = ImportHexData(szFileName ,pMessage, &usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) 		// Error
{
	MessageBox(strMessage);
	return;
}

GetImportInfo

Getting information about the imported file.

BYTE GetImportInfo (&ulEndAdr, &ulHexBytes, &ucMaxPages, &ulAdrOffset)

Parameters

Return Value

There is no return value.

Remark

There is no remark.

Example

char *pMessage;
char szFileName[1024];
BYTE usStrLen;
BYTE usResult;
CString strMessage;

unsigned long ulEndAdr, ulHexBytes, ulAdrOffset;
BYTE ucMaxPages;

pMessage = strMessage.GetBuffer(100);
usResult = ImportHexData(szFileName ,pMessage, &usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) // Error
{
	MessageBox(strMessage);
	return;
}
else
{
	GetImportInfo(&ulEndAdr, &ulHexBytes, &ucMaxPages, &ulAdrOffset);
}

DoPageErase

Erase one single page.

BYTE DoPageErase (char *pcPageEraseError, BYTE *pusStringLen, BYTE *pusErasedPageNumber)

Parameters

Return Value

The return values for DoPageErase are as follows:

• 0 = no error.
• 1 = error during page erase.
• 2 = application tries to erase more pages than necessary.

Remark

usErasedPageNumber is always 1.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

BYTE ucPage = 0;

do
{
	pMessage = strMessage.GetBuffer(100);
	usResult = DoPageErase(pMessage, &usStrLen, &usErasedPageNumber);
	strMessage.ReleaseBuffer();
	if(usResult == 1)
	{
		strMessage.SetAt(usStrLen,'\0');
		MessageBox(strMessage);
		return;
	}
	if(usResult == 2)
	{
		MessageBox(„No more pages to erase“);
		ucPage = ucMaxPages;
	}
	ucPage ++;
}
while(ucPage<ucMaxPages);
// ucMaxPage contains the value get by GetImportInfo()

DoDataWrite

Writing data to flash, and verifying the written data.

BYTE DoDataWrite (char *pcWriteDataError, BYTE *pusStringLen, BYTE *pusDataLen)

Parameters

Return Value

The return values for DoDataWrite are as follows:

• 0 = no error.
• 1 = error during data write.

Remark

If not all pages are erased, the application cannot write data.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
BYTE usDataLen;
CString strMessage;

unsigned long ulWrittenHexBytes = 0;

do
{
	pMessage = strMessage.GetBuffer(100);
	usResult = DoDataWrite(pMessage, &usStrLen, &usDataLen);
	strMessage.ReleaseBuffer();
	if(usResult == 1)
	{
		strMessage.SetAt(usStrLen,'\0');
		MessageBox(strMessage);
		return;
	}
	ulWrittenHexBytes += (unsigned long)usDataLen;
}
while(ulWrittenHexBytes < ulHexBytes);
// ulHexBytes contains the value get by GetImportInfo()

DoWriteCRC

Writing checksum to 0x80014.

BYTE DoWriteCRC (char *pcWriteCRCError, BYTE *pusStringLen, usCRC_Val)

Parameters

Return Value

The return values for DoWriteCRC are as follows:

• 0 = no error.
• 1 = error during writing checksum.

Remark

If program and verify are not successful, the DLL blocks this function.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = DoWriteCRC(pMessage,&usStrLen, 1); // code development
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) 		// Error
{
	MessageBox(strMessage);
	return;
}

DoResetKernel

Reset of the CPU

BYTE DoResetKernel (char *pcResetKernelError, BYTE *pusStringLen)

Parameters

Return Value

The return values for DoResetKernel are as follows:

• 0 = no error.
• 1 = error during reset of kernel.

Remark

There is no remark.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = DoResetKernel(pMessage,&usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) // Error
{
	MessageBox(strMessage);
	return;
}

AssignNAD

Assigning a new NAD to the kernel.

BYTE AssignNAD (char *pcAssignNADError, BYTE *pusStringLen, BYTE usNewNAD)

Parameters

Return Value

The return values for AssignNAD are as follows:

• 0 = no error.
• 1 = error during assignment of NAD.

Remark

There is no remark.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = AssignNAD(pMessage,&usStrLen);
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) 		// Error
{
	MessageBox(strMessage);
	return;
}

ReadByIdentifier

Reading the identifiers.

BYTE ReadByIdentifier (char *pcRBIError, BYTE *pusStringLen, BYTE usIdentifier)

Parameters

Return Value

The return values for ReadByIdentifier are as follows:

• 0 = no error.
• 1 = error during read by identifier.

Remark

There is no remark.

Example

char *pMessage;
BYTE usStrLen;
BYTE usResult;
CString strMessage;

pMessage = strMessage.GetBuffer(100);
usResult = ReadByIdentifier(pMessage,&usStrLen,0); // reading 0x0
strMessage.ReleaseBuffer();
strMessage.SetAt(usStrLen,'\0');
if(usResult != 0) 		// Error
{
	MessageBox(strMessage);
	return;
}
