製造中Precision 10V Reference
- 製品モデル
- 9
- 1Ku当たりの価格
- 最低価格:$225.77
製品情報
- MIL-PRF-38535 Class V Compliant Version – 5962R88600
- Ultralow Drift: 5ppm/°C Max Temperature Coefficient
- Very Low Noise: 6µVP-P (0.1Hz to 10Hz)
- Long Term Stability: 15ppm/kHr
- Trimmed Output Voltage

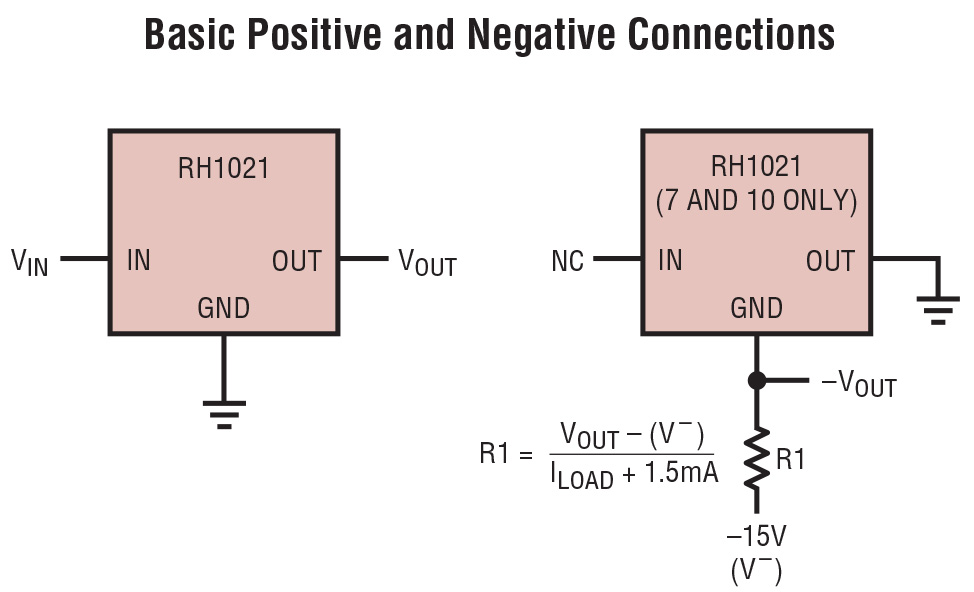

- Operates in Series or Shunt Mode
- Configure As Positive Or Negative Reference
- Output Sinks Or Sources 10mA
- Available in Metal Can, Ceramic Flatpack and as Unpackaged Dice
Radiation Performance
- Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- 100kRad (Si), per condition D at 10mRads(Si)/sec
- ELDRS Pass 100kRad(Si)
The RH1021-10 is a precision 10V reference with ultralow drift and noise, extremely good long-term stability and almost total immunity to input voltage variations. The reference output will source and sink up to 10mA. This reference can also be used as a shunt regulator (2-terminal Zener). Unique circuit design makes the RH1021-10 the first IC reference to offer ultralow drift without the use of high power on-chip heaters.
The wafer lots are processed to Linear Technology’s in-house Class S flow to yield circuits usable in stringent military applications.
Applications
- A/D and D/A Convertors
- Precision Regulators
- Measurement and Control Systems
- Power Supply Monitors
ドキュメント
データシート 1
信頼性データ 2
管理された図面 2
仕様に関するお知らせ 1
放射線レポート 4
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|

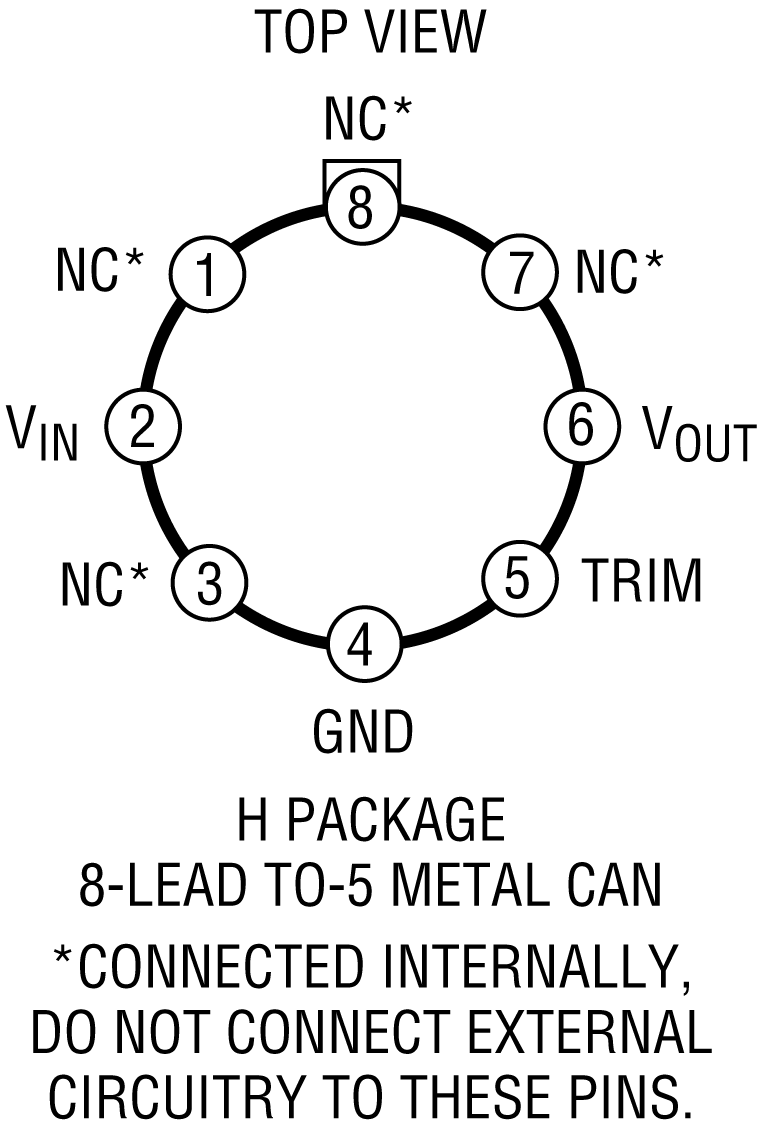

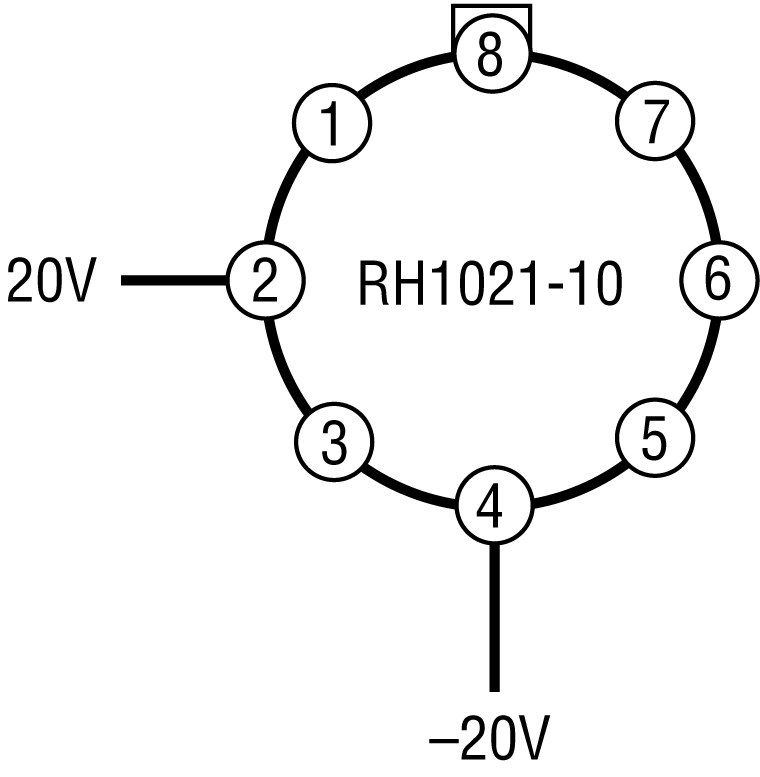

5962R8860001VGA | 8-Lead TO-5 (0.2 Inch PCD) | ||
5962R8860002V9A | CHIPS OR DIE | ||
5962R8860002VGA | 8-Lead TO-5 (0.2 Inch PCD) | ||

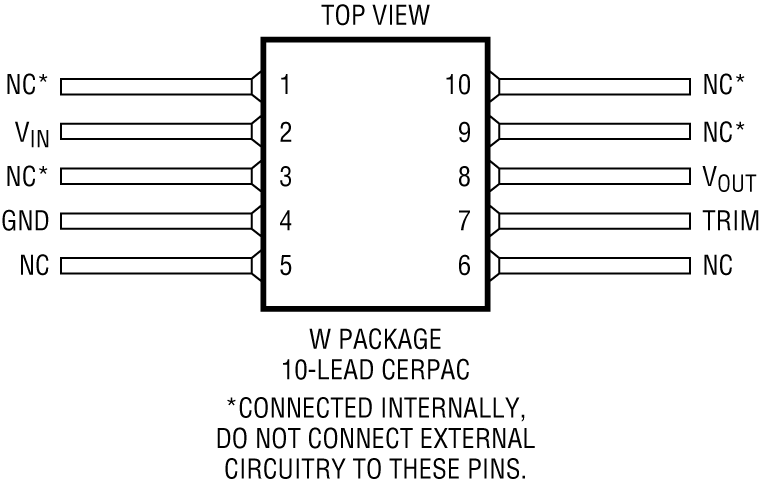

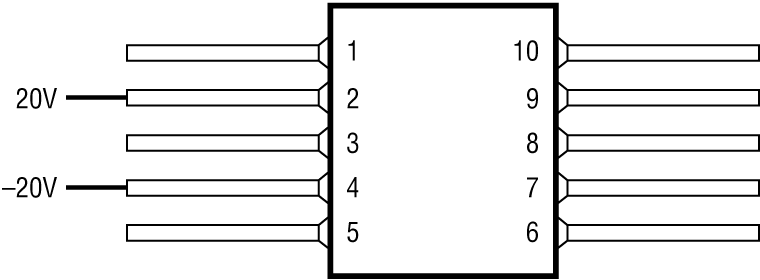

5962R8860002VHA | 10-Lead Flatpak (Glass Sealed Hermetic) | ||
RH1021BMH-10 | 8-Lead TO-5 (0.2 Inch PCD) | ||
RH1021C-10DICE | CHIPS OR DIE | ||
RH1021CMH-10 | 8-Lead TO-5 (0.2 Inch PCD) | ||
RH1021CMW-10 | 10-Lead Flatpak (Glass Sealed Hermetic) | ||
RH1021CMW-10-EMX | CERPAK(HERM CER SRF MOUNT) |
