Power over Data (PoD) Solutions
ADI offers power over data solutions that enable the use of single-pair cable for both point-to-point and multidrop networks. Because the data and power share the same, single-wire cable, power over data reduces cabling costs and simplifies installation. ADI offers three complementary PoD technologies: Home Bus, PD-Link, and SPoE.
Value and Benefits
- Cost & Simplicity: Power over Data (PoD) reduces cable size/cost and simplifies two-wire, polarity-agnostic installation.
- Flexible Integration: Home Bus couples power and data; PD-Link supports non-native protocols with software-agnostic DC balance.
- Plug-and-Play Ethernet: SPoE delivers easy PoD deployment for T1L Ethernet.
- System Advantage: Easy installation with significant cabling cost savings.
Fast Heat Pump Installs
Watch how ADI’s Home Bus transceivers (MAX22288 and MAX22088) make it easy to design a multidrop, power-delivering backbone that installs fast and shrinks thermostats and sensors.
ADI’s Home Bus Power over Data Solution
Home Bus transceivers enhance communication with dynamic cable termination improving signal quality over longer cables and higher data rates. This webinar introduces Home Bus power over data technology and offers design tips for multinode systems.
Solution Resources

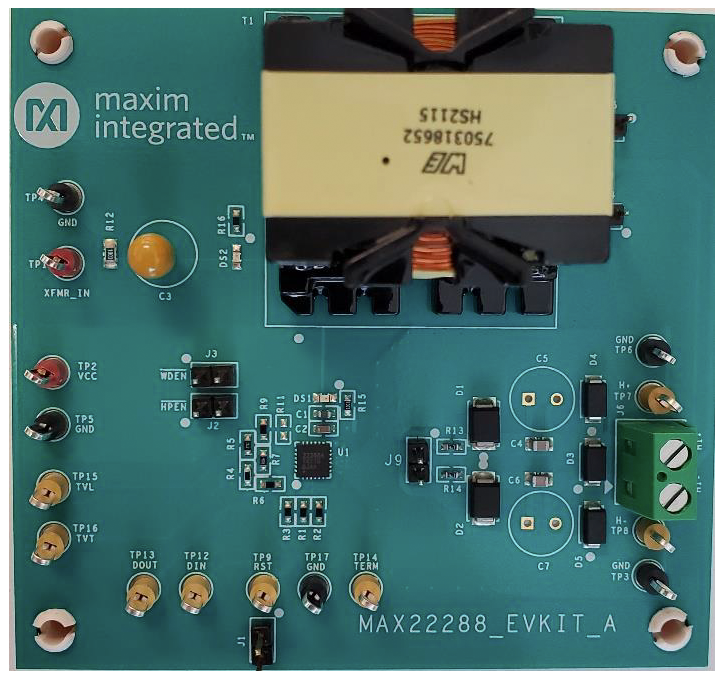

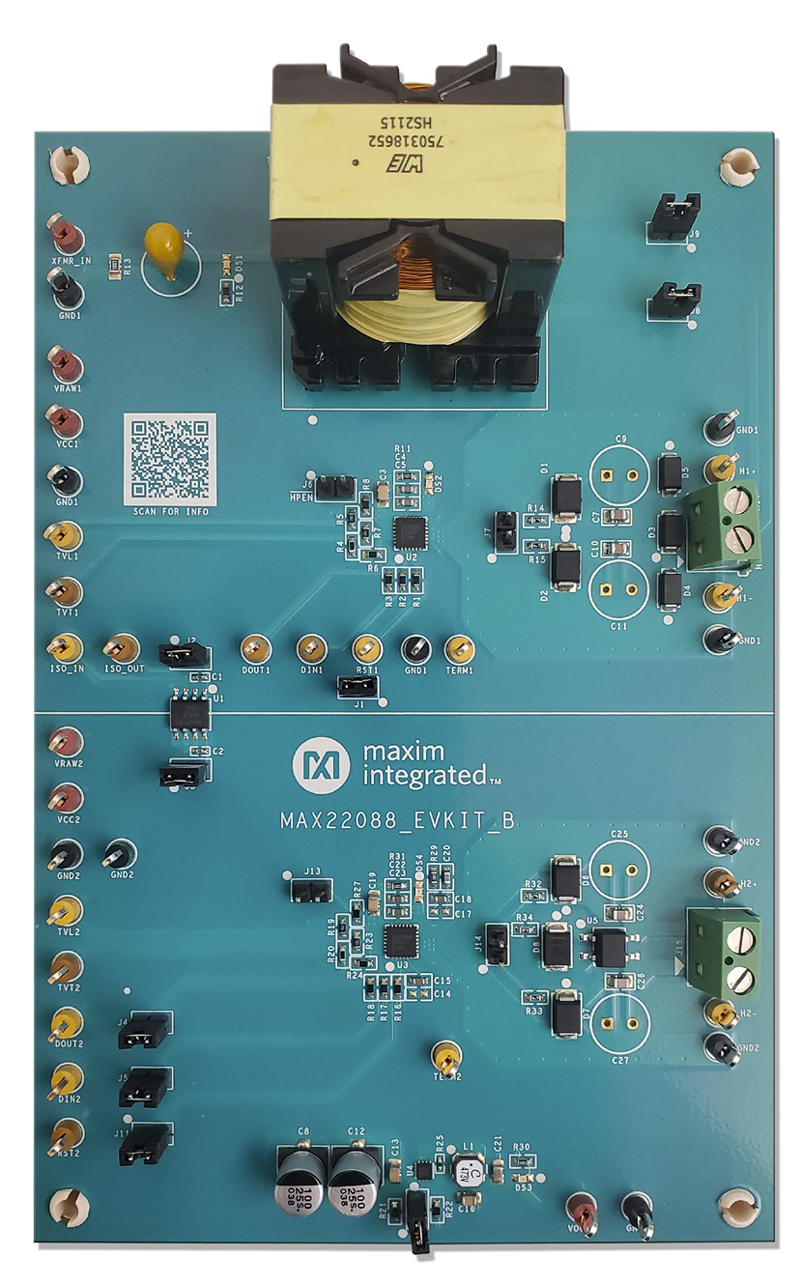

Evaluation Boards and Kits
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
Developer Tools and Resources
Simulation Models
Training and Support
