Industrial Wired Connectivity Solutions

Today, wired connectivity technology still dominates the industrial landscape. Legacy serial interfaces are deployed extensively in existing factory networks to ensure uninterrupted, high-performance connections. These interfaces offer simplicity but lack the advantages of direct IP addressability possible with Ethernet, which dominates at the control level. In addition, new and old equipment must coexist in the factory of the future, and the latest wired connectivity technology facilitates this interoperability.

Value and Benefits

Offering superior performance, robustness, and reach, Analog Devices’ wired connectivity solutions leverage the latest wired serial and Ethernet technologies. For last mile connectivity to sensors or actuators at the edge we offer 10BASE-T1L and IO-Link®, and for high-speed applications, low-latency gigabit Ethernet, MLVDS, and RS-485. For industrial PC connectivity, we offer the latest isolated USB solutions with best-in-class robustness.

Our low-power, low latency, and robust gigabit PHY, MAC PHY, and switch technology optimizes system design and adds Ethernet connectivity. For IO-Link enabled intelligent connected sensors and actuators, we offer industry-leading, robust, enhanced feature set solutions, and a range of fully verified and tested reference designs. Choose from a range of isolated and nonisolated RS-485, RS-232, RS-422, RS-562, and CAN transceivers using ADI’s iCoupler® and isoPower® isolation technology, designed for robust, quiet connectivity in harsh industrial environments. Our compact USB port isolators allow ease of design-in for full signal integrity, EMC compliance, and proven iCoupler robustness.

Offers a range of fully tested and verified reference designs

Enables quick and simple solution development

Removes the need for multiple external protection components

ADIN1300

Robust, Industrial, Low Latency and Low Power 10 Mbps, 100 Mbps, and 1 Gbps Ethernet PHY X +

ADIN1300

The ADIN1300 is a low power, single port, Gigabit Ethernet transceiver with low latency and power consumption specifications primarily designed for industrial Ethernet applications.

This design integrates an energy efficient Ethernet (EEE) physical layer device (PHY) core with all associated common analog circuitry, input and output clock buffering, management interface and subsystem registers, and MAC interface and control logic to manage the reset and clock control and pin configuration.

The ADIN1300 is available in a 6 mm × 6 mm, 40-lead lead frame chip scale package (LFCSP). The device operates with a minimum of 2 power supplies, 0.9 V and 3.3 V, assuming the use of a 3.3 V MAC interface supply. For maximum flexibility in system level design, a separate VDDIO supply enables the management data input/output (MDIO) and MAC interface supply voltages to be configured independently of the other circuitry on the ADIN1300, allowing operation at 1.8 V, 2.5 V, or 3.3 V. At power-up, the ADIN1300 is held in hardware reset until each of the supplies has crossed its minimum rising threshold value. Brown-out protection is provided by monitoring the supplies to detect if one or more supply drops below a minimum falling threshold (see Table 19 on the datasheet), and holding the device in hardware reset until the power supplies return and satisfy the power-on reset (POR) circuit.

The MII management interface (also referred to as MDIO interface) provides a 2-wire serial interface between a host processor or MAC (also known as management station (STA)) and the ADIN1300, allowing access to control and status information in the PHY core management registers. The interface is compatible with both the IEEE 802.3 Standard Clause 22 and Clause 45 management frame structures.

The ADIN1300 can support cable lengths up to 150 meters at Gigabit speeds and 180 meters when operating at 100 Mbps or 10 Mbps.

Applications

Industrial automation
Process control
Factory automation
Robotics/motion control
Time sensitive networking (TSN)
Building automation
Test and measurement
Industrial internet of things (IoT)

View Detailed Information View Pricing

Applications

Intelligent Building Solutions

Surveillance Camera Solutions
Smart Building Automation Systems
Building Automation Controllers and Network Solutions

Industrial Automation Technology (IAT)

Industrial Connectivity Technology
Industrial Wired Connectivity Solutions
Industrial Power Supply Solutions
Field Instrument Systems
Temperature Controllers
Intelligent Motion Control Solutions
Predictive Maintenance Solutions
Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)
Industrial Robotics Solutions
Uninterruptable Power Supply Solutions

Instrumentation and Measurement Solutions

EV High Voltage Drivetrain Test Solutions
Data Acquisition Solutions
Oscilloscopes and Digitizer Solutions
Precision Signal Analyzer Solutions
Science Lab Equipment and Automation Solutions

Consumer Technology Solutions

Unified Communications (UC) and ProAV

Energy Solutions

Energy Storage Solutions

MAX22514

Surge Protection IO-Link Device Transceiver with DC-DC X +

MAX22514

The MAX22514 IO-Link transceiver integrates high voltage functionality, including one 24V line driver, an integrated DC-DC buck regulator, and 5V and 3.3V linear regulators. The MAX22514 is targeted for IO-Link devices, masters, and industrial switching sensor applications, and can be configured and monitored using a standard SPI interface.

Applications

IO-Link and Industrial Sensor and Actuator Devices
The MAX22514 features a SPI interface for configuration and diagnostics. A high level of integration (including two linear regulators, a DC-DC buck regulator, and integrated surge protection, combined with low power dissipation and small packages) optimizes the MAX22514 for use in many different industrial and IO-Link small sensor applications.
IO-Link Master Transceivers: The MAX22514 is capable of being used in both IOLink devices and IO-Link master applications. A SPI interface is used for extended configurability and diagnostics, and the transceiver is capable of operating at the COM1, COM2, and COM3 IO-Link data rates. The MAX22514 can be configured to enable the required 5mA pull-down/pull-up current on the C/Q line and generate a wake-up pulse.

View Detailed Information View Pricing

Applications

Industrial Automation Technology (IAT)

Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)
Field Instrument Systems
Smart Factory IO - Link Sensor Actuator Solutions
Smart Factory IO - Link Master Solutions
Industrial Wired Connectivity Solutions
Wired Asset Health Monitoring Solutions

ADM2867E

5.7 kV RMS Signal and Power Isolated RS-485 Transceiver with ±15 kV IEC ESD X +

ADM2867E

The ADM2861E, ADM2863E, ADM2865E, and ADM2867E are 5.7 kV rms signal and power isolated RS-485 transceivers. These devices are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E). The devices pass radiated emissions testing to the EN 55032 Class B standard with margin on a 2-layer printed circuit board (PCB) using two small external 0402 ferrites on isolated power and ground pins. The device features an integrated, low electromagnetic interference (EMI), isolated dc-to-dc converter, which eliminates the need for an external isolated power supply. The isolation barrier provides immunity to system level electromagnetic compatibility (EMC) standards. The family of isolator devices features ±12 kV contact and ±15 kV air IEC61000-4-2 ESD protection on the RS-485 A, B, Y, and Z pins. The devices also features cable invert pins, allowing the user to quickly correct reversed cable connection on the A, B, Y, and Z bus pins while maintaining full receiver fail-safe performance.

Slew rate limited versions are available, which are optimized for low speed over long cable runs, and have a maximum data rate of 500 kbps. Half duplex and full duplex variants are available. The full duplex generics allow independent cable inversion of the driver and receiver for additional flexibility.

Applications

Heating, ventilation, and air conditioning (HVAC) networks
Industrial field buses
Building automation
Utility networks
Energy meters

View Detailed Information View Pricing

Applications

Healthcare Solutions

Therapy Device Solutions for Healthcare

Intelligent Building Solutions

Building Automation Controllers and Network Solutions

Industrial Automation Technology (IAT)

Temperature Controllers
Industrial Connectivity Technology
Industrial Wired Connectivity Solutions
Accelerating the Path to Industry 4.0
Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)
Intelligent Motion Control Solutions
Industrial Robotics Solutions
Field Instrument Systems
Predictive Maintenance Solutions

Instrumentation and Measurement Solutions

Protocol Analyzer Solutions
EV High Voltage Drivetrain Test Solutions
Science Lab Equipment and Automation Solutions
Battery Formation and Testing

Aerospace and Defense Systems

Avionic Systems

Automotive Solutions

Electrification and Powertrain Solutions
Automotive Battery Management Systems

Wireless Communication Solutions

Wireless Infrastructure Solutions

Energy Solutions

Smart Grid Infrastructure Solutions
Power Quality Monitoring Solutions
Smart Meter Technology
Energy Storage Solutions
Wind Turbine Solutions
Solar Inverter Solutions
Energy Storage Systems

Key Resources

Brochures

PDF

Scalable Ethernet, Timed to Perfection

8.35 M

Video

Aug 1, 2023

02:05

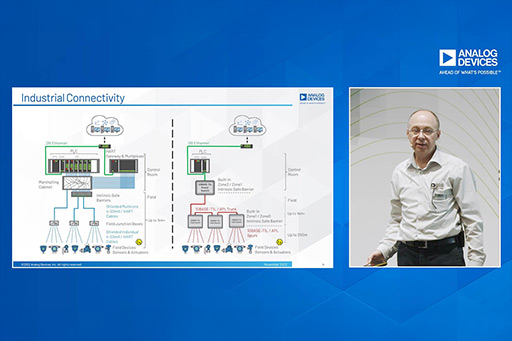

Introduction to I/O Link
