Solar Inverter Solutions

Solar inverter platforms are continually advancing to enhance system efficiencies, find the optimal balance between size and power output, bolster reliability, and uphold stringent safety standards. They also adapt to varying environmental conditions and evolving grid standards.

Analog Devices’ solutions streamline development efforts, expedite time to market, offer flexibility and scalability, and maintain quality standards to elevate system safety levels and lower total ownership costs.

Value and Benefits

Our solutions for solar inverters utilize precision voltage and current measurement, isolation technology, intelligent power management and low-latency signal processing to enhance the system’s efficiency, reliability, safety, and performance. Our solutions enable the seamless integration and synchronization of solar power into the broader energy network. They enable precision insights into energy production, grid interaction and system health.

Achieves optimal power conversion, early fault detection, and insights into grid interaction and system health

Safeguards system integrity by preventing electrical interference and enhanced safety

Maximizes system uptime and extended equipment lifetime

AD7401A

Isolated Sigma-Delta Modulator X +

AD7401A

The AD7401A is a second-order, sigma-delta (Σ-Δ) modulator that converts an analog input signal into a high speed, 1-bit data stream with on-chip digital isolation based on the Analog Devices, Inc., iCoupler^® technology. The AD7401A operates from a 5 V power supply and accepts a pseudo-differential input signal of ±250 mV (±320 mV full scale). The analog input is continuously sampled by the analog modulator, eliminating the need for external sample-and-hold circuitry. The input information is contained in the output stream as a density of ones with a data rate of up to 20 MHz. The original information can be reconstructed with an appropriate digital filter. The serial I/O can use a 5 V or a 3.3 V supply (V_DD2).

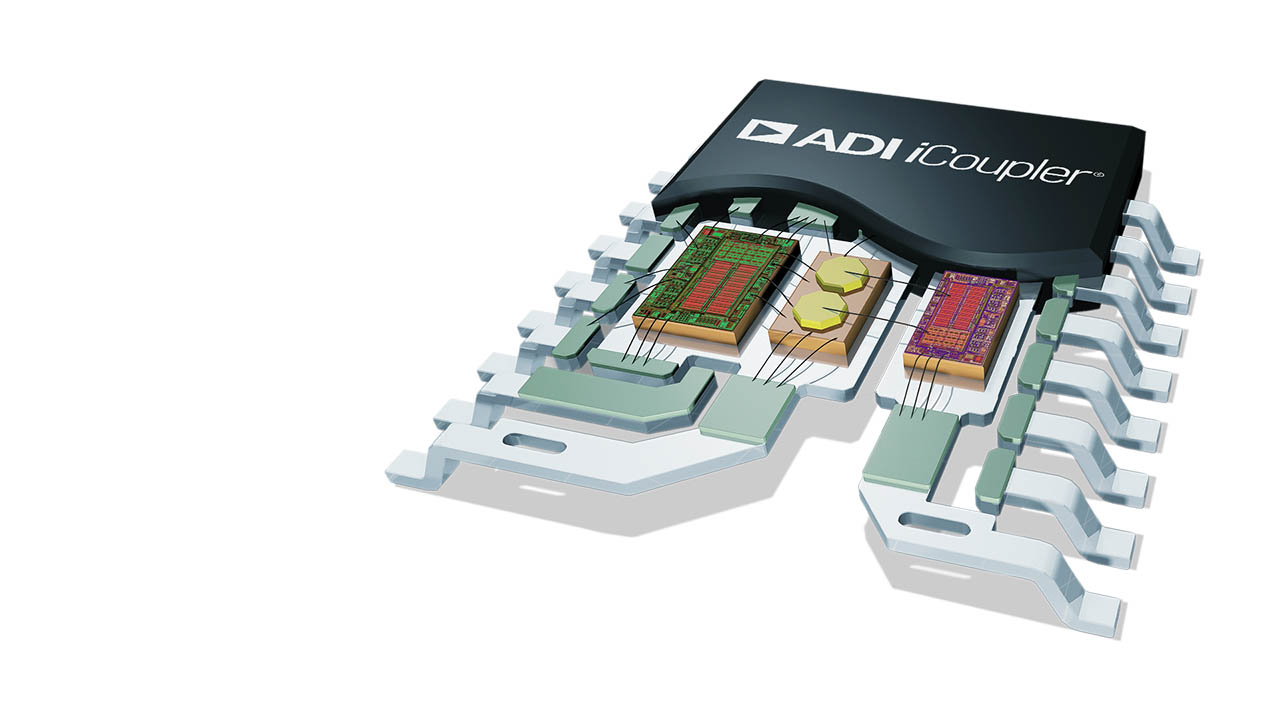

The serial interface is digitally isolated. High speed CMOS, combined with Analog Devices, Inc., iCoupler^® technology, means the on-chip isolation provides outstanding performance characteristics, superior to alternatives such as optocoupler devices. The device contains an on-chip reference. The AD7401A is offered in a 16-lead SOIC and has an operating temperature range of −40°C to +125°C.

Applications

AC motor controls
Shunt current monitoring
Data acquisition systems
Analog-to-digital and opto-isolator replacements

View Detailed Information View Pricing

Applications

Energy Solutions

Energy Storage Systems
Solar Inverter Solutions

Automotive Solutions

Cabin Experience and Infotainment Solutions
Electrification and Powertrain Solutions

Industrial Automation Technology (IAT)

Intelligent Motion Control Solutions

ADSP-CM409F

240MHz ARM Cortex-M4 with 13+ ENOB ADC, BGA212
X +

ADSP-CM409F

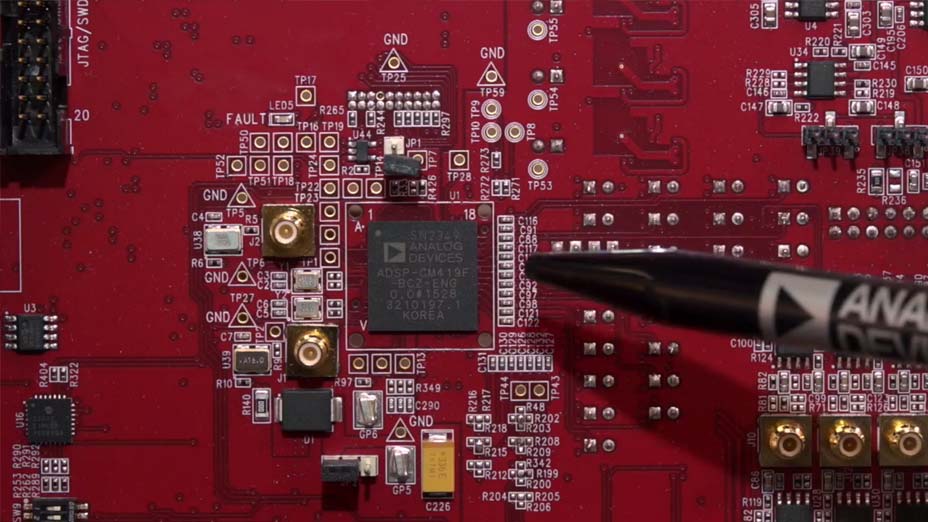

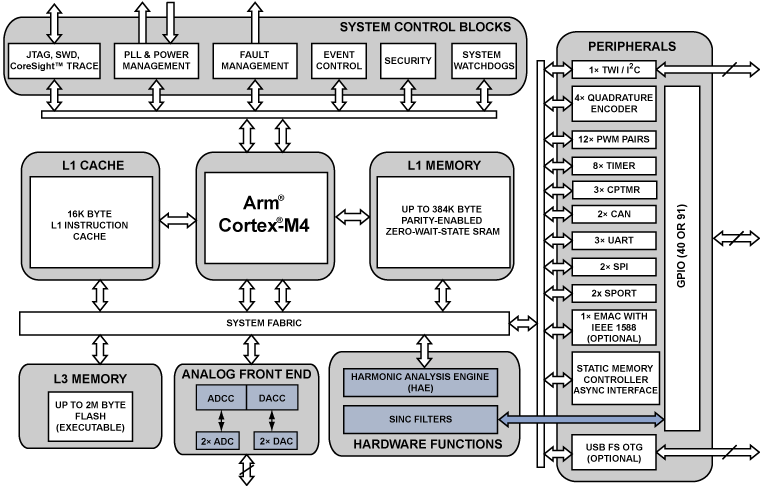

The ADSP-CM409F Mixed-Signal Control Processor integrates dual high precision 16 bit ADCs and an ARM^® Cortex-M4TM processor core with floating-point unit operating at 240 MHz core clock frequency and integrating 384KB of SRAM memory, 2M byte of flash memory, and accelerators and peripherals optimized for motor control, photo-voltaic (PV) inverter control and other embedded control applications.

View Detailed Information View Pricing

Applications

Industrial Automation Technology (IAT)

Industrial Connectivity Technology
Industrial Wired Connectivity Solutions
Field Instrument Systems
Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)
Predictive Maintenance Solutions
Intelligent Motion Control Solutions

Instrumentation and Measurement Solutions

EV High Voltage Drivetrain Test Solutions

Aerospace and Defense Systems

Missiles and Precision Munitions
Avionic Systems

Energy Solutions

Energy Storage Systems
Solar Inverter Solutions

ADuM4135

Single/Dual-Supply High-Voltage Isolated IGBT Gate Driver with Miller Clamp X +

ADuM4135

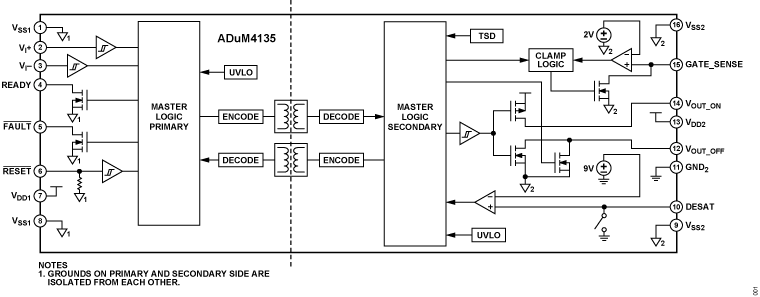

The ADuM4135 is a single-channel gate driver specifically optimized for driving insulated gate bipolar transistors (IGBTs). Analog Devices, Inc., iCoupler^® technology provides isolation between the input signal and the output gate drive.

The ADuM4135 includes a Miller clamp to provide robust IGBT turn-off with a single-rail supply when the gate voltage drops below 2 V (typical). Operation with unipolar or bipolar secondary supplies is possible, with or without the Miller clamp operation.

The Analog Devices chip scale transformers also provide isolated communication of control information between the high voltage and low voltage domains of the chip. Information on the status of the chip can be read back from dedicated outputs. Control of resetting the device after a fault on the secondary is performed on the primary side of the device.

Integrated onto the ADuM4135 is a desaturation detection circuit that provides protection against high voltage short-circuit IGBT operation. The desaturation protection contains noise reducing features such as a 370 ns (typical) masking time after a switching event to mask voltage spikes due to initial turn-on. An internal 537 μA (typical) current source allows low device count and the internal blanking switch allows the addition of an external current source if more noise immunity is needed.

The secondary UVLO is set to 11.67 V (typical) with common IGBT threshold levels taken into consideration.

APPLICATIONS

MOSFET/IGBT gate drivers
PV inverters
Motor drives
Power supplies
Automotive

View Detailed Information View Pricing

Applications

Automotive Solutions

Electric Vehicle Powertrain Solutions

Instrumentation and Measurement Solutions

EV High Voltage Drivetrain Test Solutions

Industrial Automation Technology (IAT)

Field Instrument Systems
Industrial Power Supply Solutions
Intelligent Motion Control Solutions
Uninterruptable Power Supply Solutions

Energy Solutions

Energy Storage Systems
Solar Inverter Solutions

Precision Technology Solutions

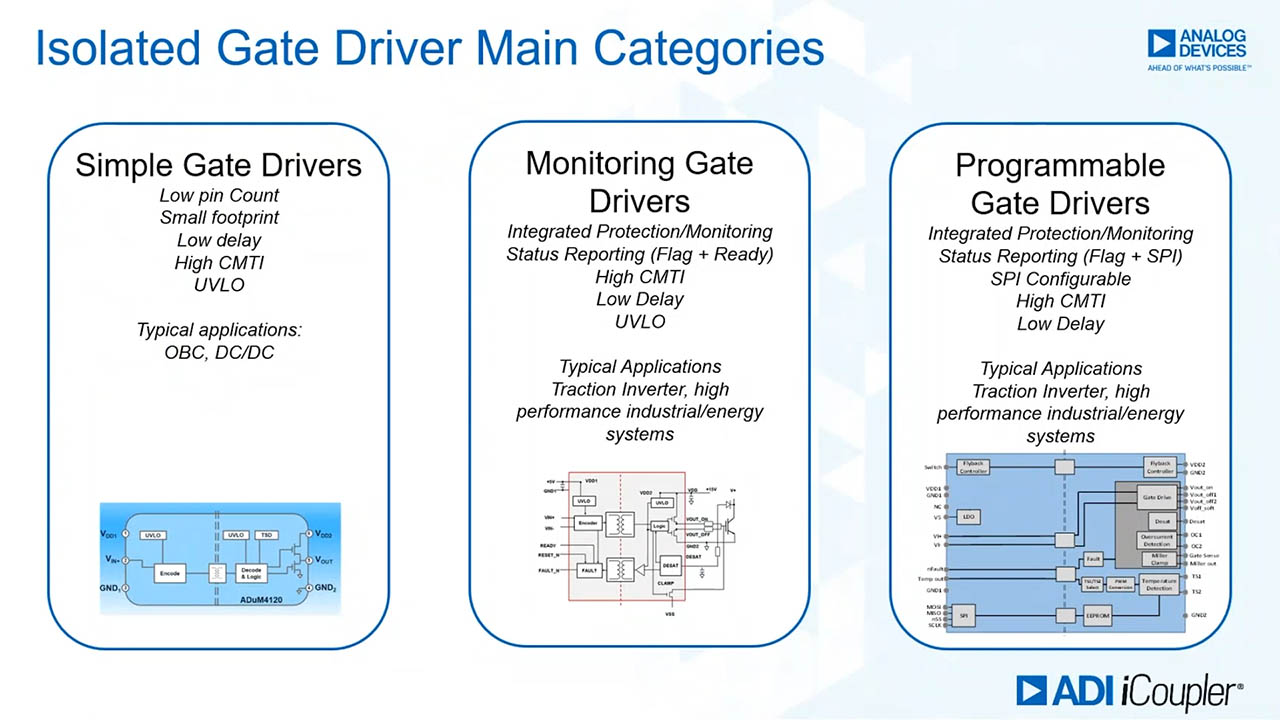

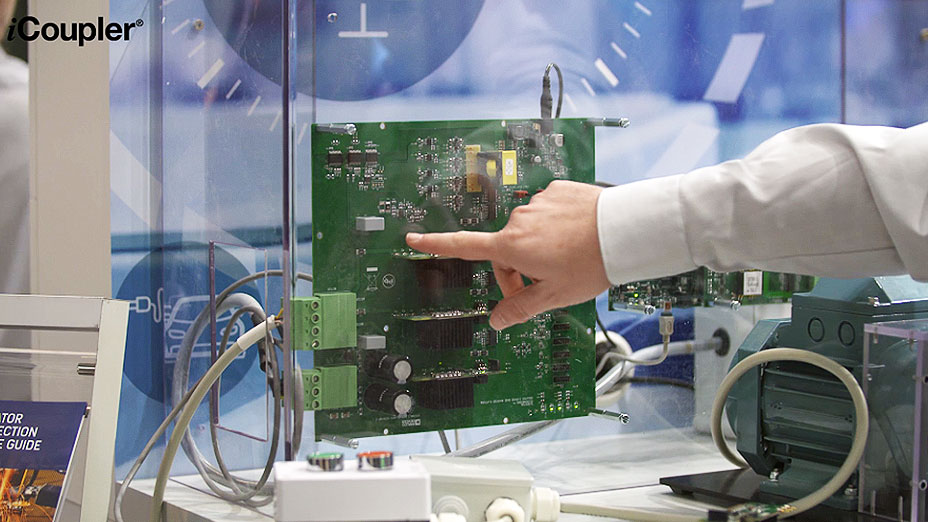

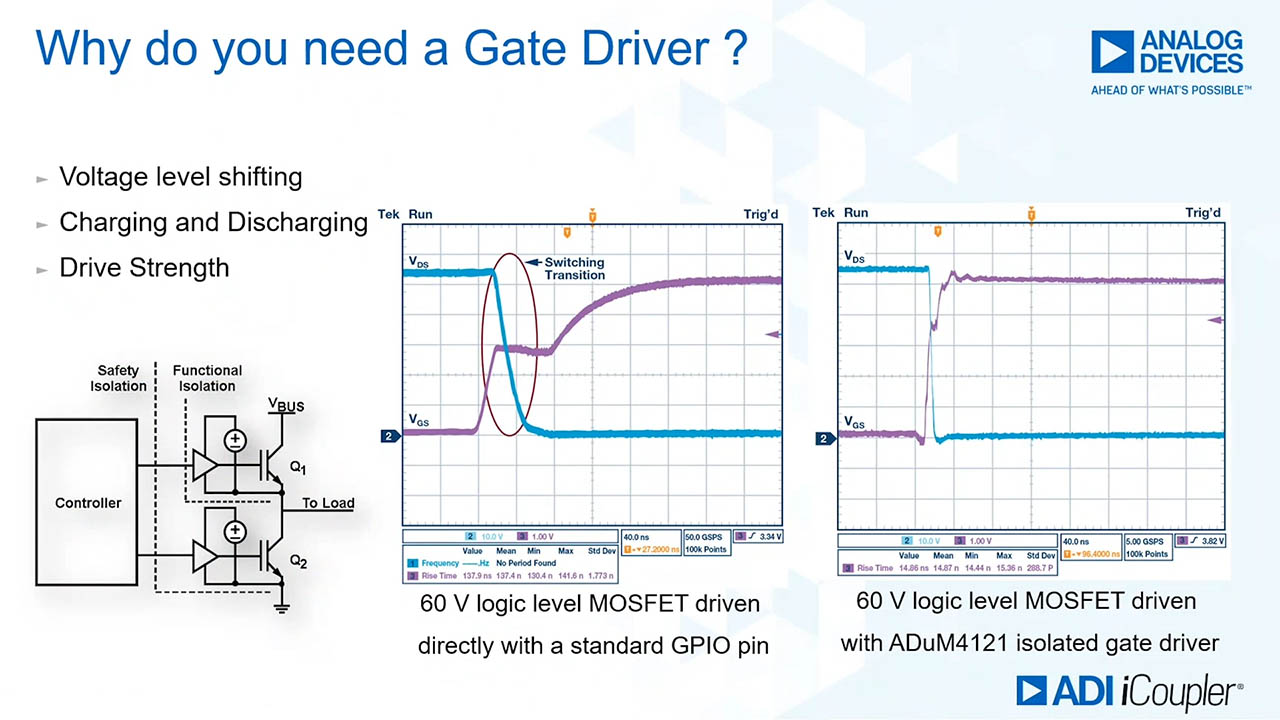

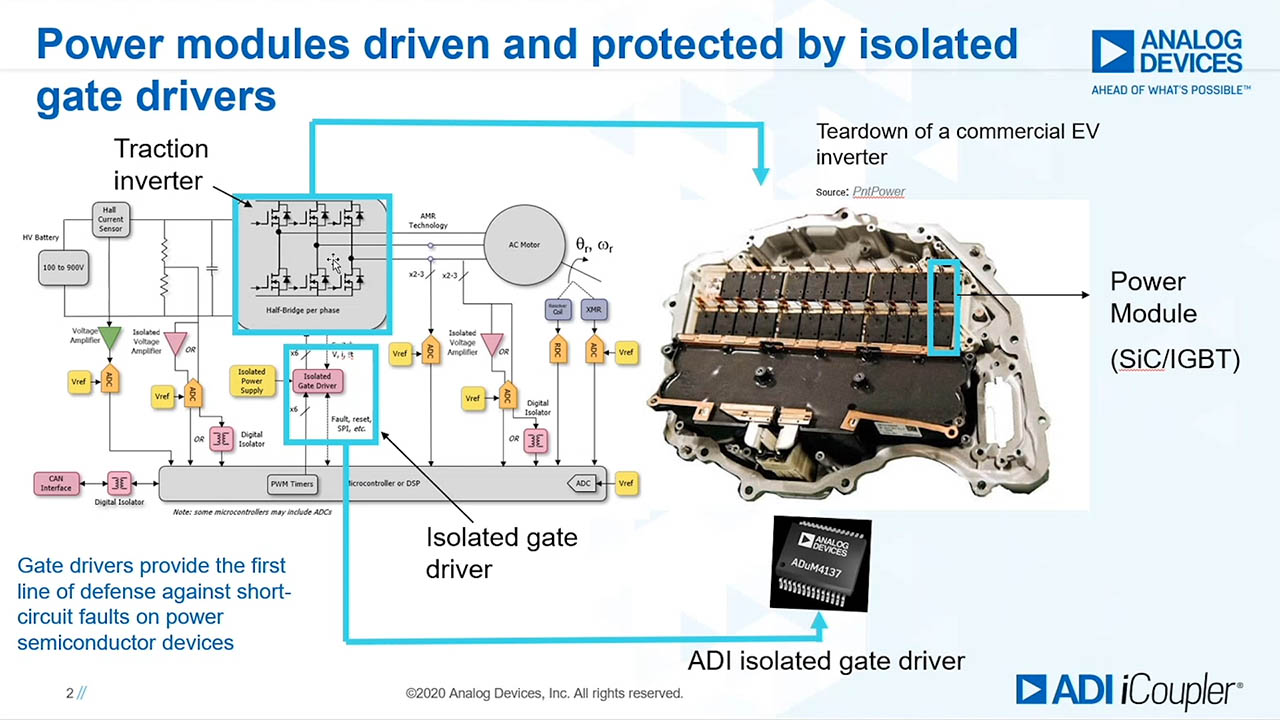

Isolated Gate Driver Solutions

Signal Chains

(2)

< Prev

Next >

Reference Designs

CN0352

Cost Effective, Multichannel Lithium Ion Battery Testing System X +

CN0352

The test system shown in Figure 1 is an accurate, cost effective, 8-channel battery testing system for single-cell, lithium ion (Li-ion) batteries with open circuit voltage (OCV) between 3.5 V and 4.4 V.

Figure 1. Cost Effective, Multichannel Li-ion Battery Testing System

The demand for Lithium ion (Li-ion) batteries is high for use in both low power and high power applications, such as laptop computers, mobile phones, portable wireless terminals, as well as hybrid electric vehicles/all-electric vehicles (HEV/EV). Li-ion batteries therefore require accurate and reliable test systems.

The battery test system in Figure 1 is composed of multiple input/output boards (EVAL-CN0352-EB1Z_IO) for handling the charging and discharging process, an MCU board (EVAL-CN0352-EB1Z_MCU) for battery data acquisition, testing, monitoring, and temperature management, and a backplane base board (EVAL-CN0352-EB1Z_BAS) that provides the signal interconnections between the MCU board and the multiple input/output boards.

The circuit uses the ADP5065 fast charging battery manager for flexible, efficient, high stability charging control with low cost, small printed circuit board (PCB) area, and ease of use compared to traditional discrete solutions.

Highly integrated precision data acquisition and processing is provided by the ADuCM360 precision analog microcontroller. The ADuCM360 acquires the battery voltage, current, and temperature. A high precision analog-to-digital converter (ADC), digital-to-analog converter (DAC), and an on-chip microcontroller allows completely self-contained control of the charging and discharging process.

The analog front end is fully differential with high CMRR and excellent immunity to both common-mode and ground noise caused by large currents generated during the charge and discharge cycles.

The number of channels can easily be expanded to further reduce testing time and cost per battery.

View Detailed Information View Pricing

Applications

Energy Solutions

Smart Grid Infrastructure Solutions
Solar Inverter Solutions
Energy Storage Systems

Instrumentation and Measurement Solutions

Parametric Measurement Solutions
DC Sources and Power Supply Solutions
Precision Measurement Solutions
Data Acquisition Solutions
Analytical Instruments

Healthcare Solutions

Body Temperature Measurement Solutions
Therapy Device Solutions for Healthcare
Wearable Health Monitor Solutions
Insulin Pump Solutions
Oxygen Saturation (SpO2) Measurement Solutions
Non-Invasive Blood Pressure (NIBP) Solutions
Electrocardiogram (ECG) Measurement Solutions

Industrial Automation Technology (IAT)

Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)
Temperature Controllers
Field Instrument Systems

Aerospace and Defense Systems

Avionic Systems
Unmanned Aerial Vehicles (UAV)
Unmanned Aerial Vehicle (UAV) Systems
