Overview

Features and Benefits

  • Wide Operating Current Range: 60µA to 15mA
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

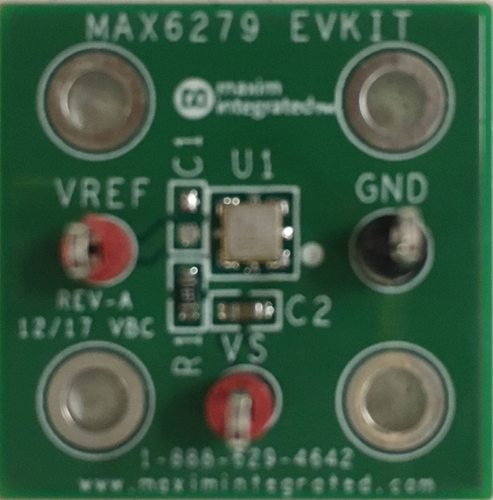

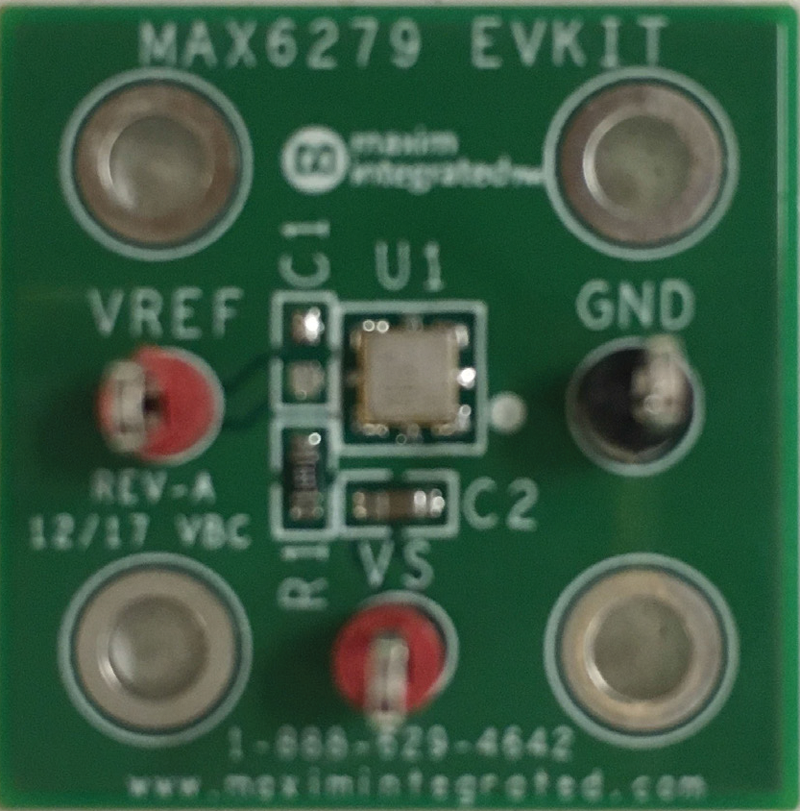

The MAX6279 evaluation kit (EV kit) provides a proven design to evaluate the MAX6279 ceramic shunt voltage reference. The output voltage is set at 1.2V.

The EV kit comes installed with a MAX6279ELA12+ in 8-pin ceramic leadless chip carrier (LCC) package.

Applications

  • Cell Phones
  • Industrial Process Control
  • Notebook Computers
  • Portable, Battery-Powered Equipment
