Overview

Features and Benefits

  • 3.0V to 5.5V Operating Supply Voltage
  • 1.25V at 3A Synchronous Buck Converter (OUT1)
  • 1.8V at 3A Synchronous Buck Converter (OUT2)
  • Programmable Windowed Watchdog
  • Sync-Mode Select Input for Forced-PWM (FPWM), Skip-Mode Selection, or External Frequency Synchronization
  • Individual RESET_ Outputs
  • PV_OV Input Power-Good Indicator
  • Minimized External Components
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

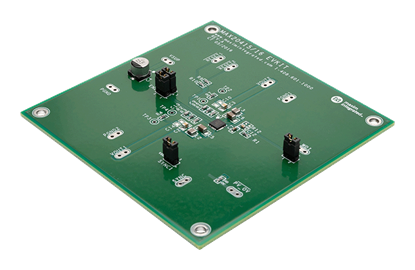

The MAX20415 evaluation kit (EV kit) is a fully assembled and tested PCB that demonstrates the MAX20415 highefficiency, low-voltage DC-DC converter. The synchronous step-down converters operate from a 3.0V to 5.5V input voltage range and provide a 0.8V to 3.8V output voltage range at up to 3A. The 2.2MHz switching-frequency operation allows for the use of all-ceramic capacitors and minimizes external components.

The EV kit features two on/off jumper controls and two reset outputs to indicate output status for each converter. It also provides a sync input to select the operating mode (PWM, skip, or external synchronization), and a PV_OV output as an input power-good indicator.

Applicable Parts

Getting Started

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.

System Requirements

  • Variable 6V power supply capable of supplying 5A
  • Two voltmeters
  • Electronic load
