EVAL-MIC-ALL
MEMS Microphone Evaluation Boards
Top
Overview
Product Details
Analog Devices has sold its MEMS Microphone product line to InvenSense.

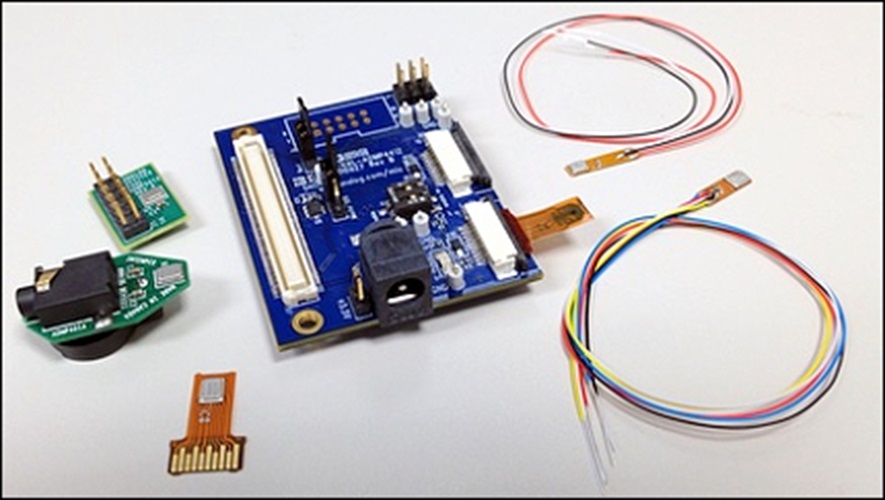

Please visit the InvenSense MEMS Microphone site.This page describes all of the different evaluation board options for the different microphones.
System Requirements
The microphone flex evaluation boards include just the microphone mounted on a small flex board. This can be used to easily mount the microphone in an system and evaluate the mic’s performance. The following flex boards are available:
- EVAL-ADMP401Z-FLEX: Analog microphone mounted on flex
- EVAL-ADMP404Z-FLEX: Analog microphone mounted on flex
- EVAL-ADMP405Z-FLEX: Analog microphone mounted on flex
- EVAL-ADMP411Z-FLEX: Analog microphone mounted on flex
- EVAL-ADMP421Z-FLEX: PDM digital microphone mounted on flex
- EVAL-ADMP441Z-FLEX: I2S digital microphone mounted on flex with ZIF header connection
- EVAL-ADMP504Z-FLEX: Analog microphone mounted on flex
- EVAL-ADMP510Z-FLEX: Analog microphone mounted on flex
- EVAL-ADMP521Z-FLEX: PDM digital microphone mounted on flex
- EVAL-ADMP522Z-FLEX: PDM digital microphone mounted on flex
- EVAL-ADMP621Z-FLEX: PDM digital microphone mounted on flex
