Overview
Features and Benefits
- Programmable Series Resistance
- Range: 511 Ω to 100 kΩ
- Tolerance: ±1% (≤55 kΩ), ±2% (>55 kΩ)
- Programmable Series Capacitance
- Range: 5 pF to 39 nF
- Tolerance: ±25% (<100 pF), ±10% (≥100 pF)
- USB-C Interface
- Small form-factor (2.82” x 1.25”)
Product Details

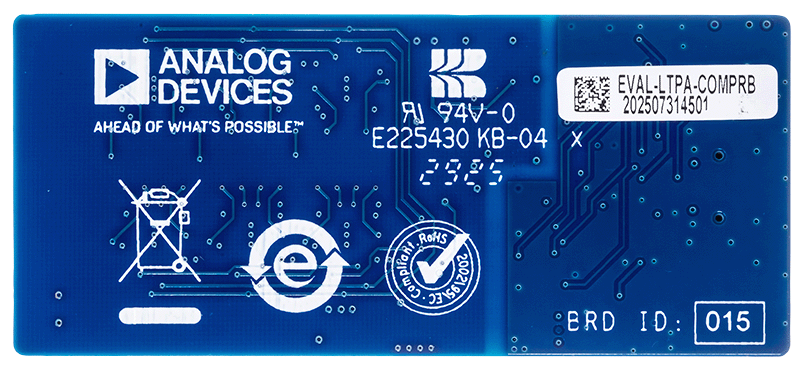

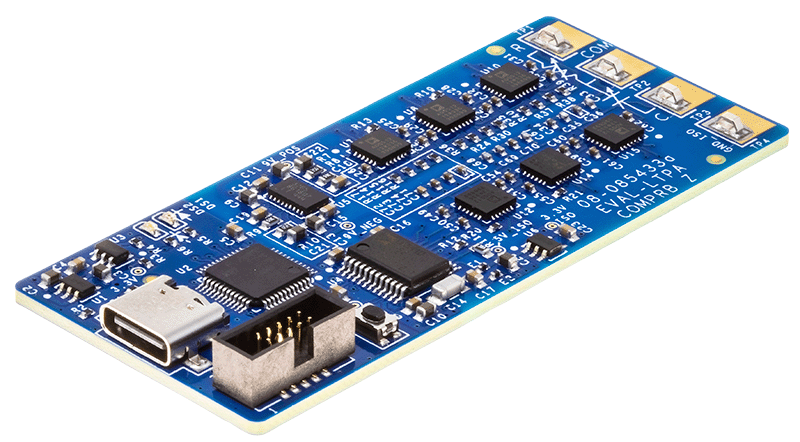

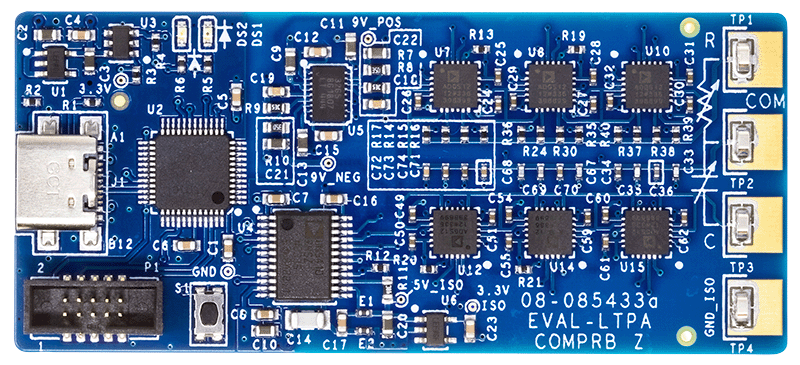

The EVAL-LTPA-COMPRB is a companion board to the LTpowerAnalyzer® and is designed to support the optimization of loop compensation in power supply designs. The board functions as a programmable substitute for the series R-C network in a Type 2 compensator and allows users to easily evaluate Bode plots and transient responses with different combinations of resistances and capacitances.
APPLICATIONS
- Laboratory Instrumentation
Markets and Technologies
Documentation & Resources
-
EVAL-LTPA-COMPRB User Guide (Wiki) (Rev. 0)11/5/2025WIKI
