EVAL-ADRF5063
Evaluating the ADRF5063 9 kHz to 13 GHz, Differential SPDT Switch
Top
Overview
Features and Benefits
- Full-featured evaluation board for the ADRF5063
- Easy connection to the test equipment
- Thru line for calibration
Product Details
The ADRF5063 is a differential SPDT switch manufactured in the silicon on insulator (SOI) process.

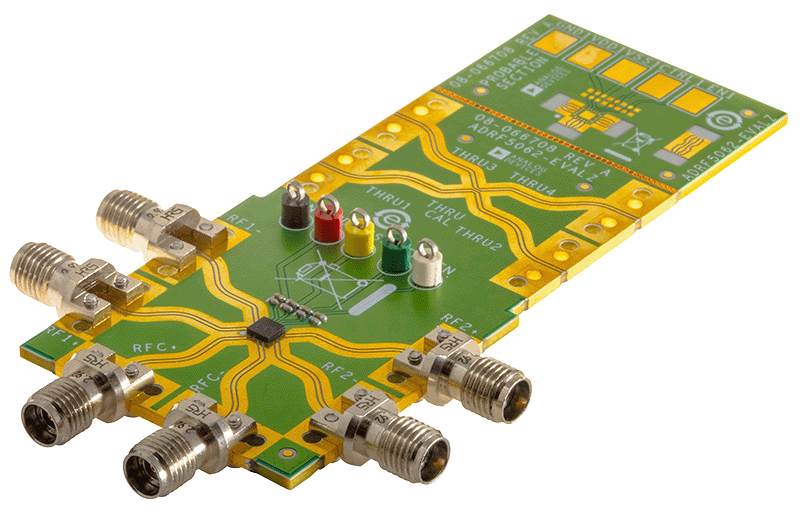

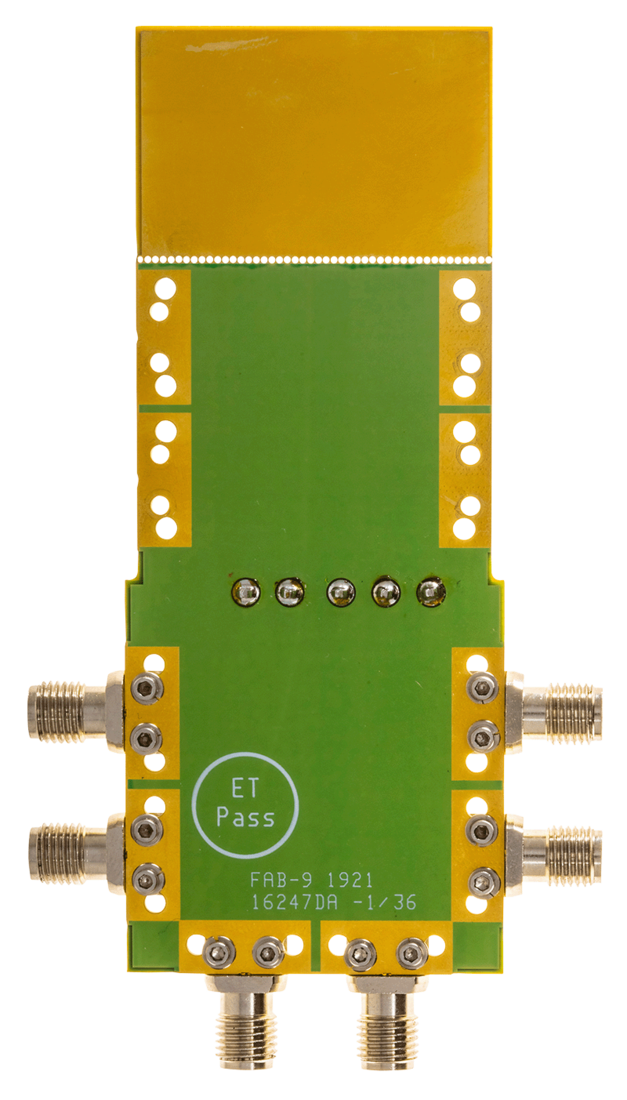

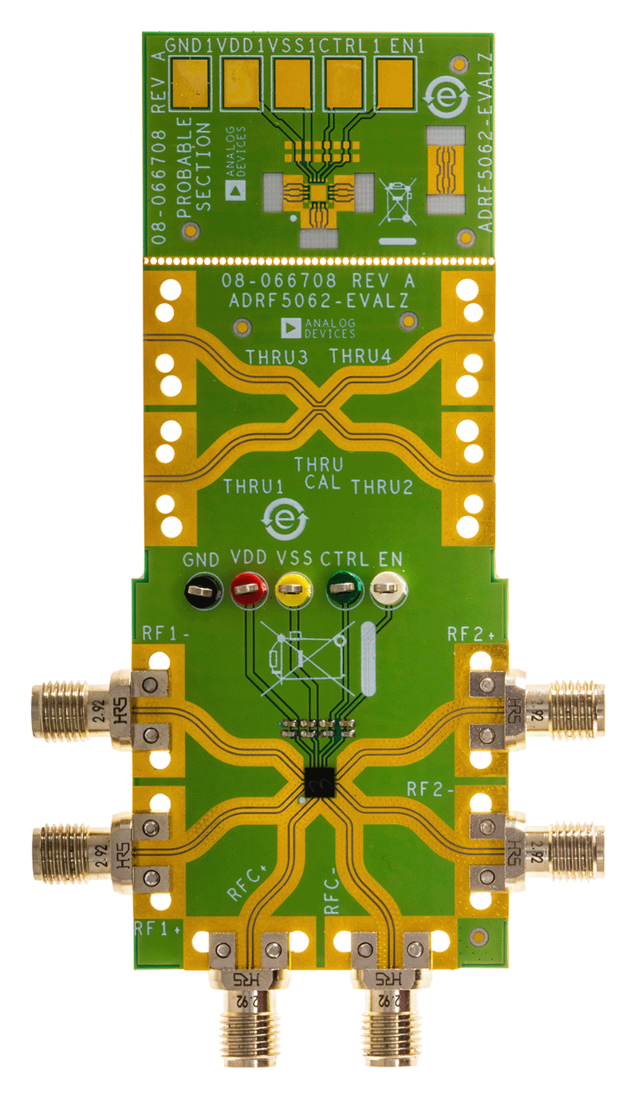

This user guide describes the ADRF5063-EVALZ evaluation board, which was designed to evaluate the features and performance of the ADRF5063.
The ADRF5063-EVALZ uses the same evaluation board as ADRF5062-EVALZ.
Full specifications on the ADRF5063 are available in the ADRF5063 data sheet from Analog Devices, Inc. Consult the data sheet with this user guide when using the ADRF5063-EVALZ evaluation board.
Applicable Parts
Getting Started
EQUIPMENT NEEDED
