EVAL-ADE7913
ADE7913 Evaluation Board
Top
Overview
Features and Benefits
- This board is also used to Evaluate the ADE7912 Product.
Product Details

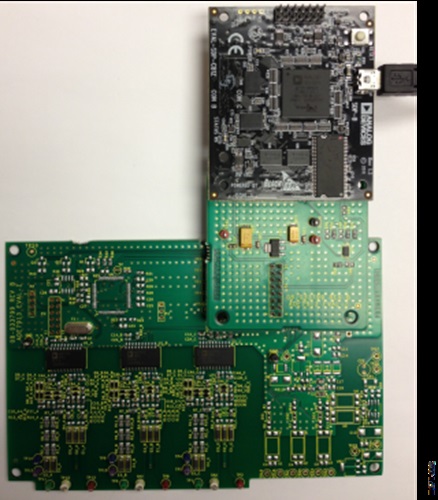

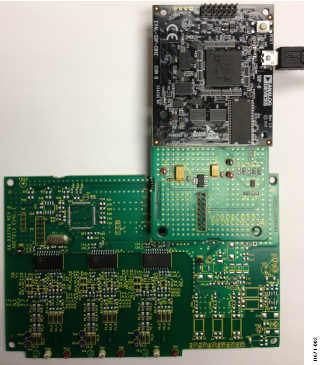

The ADE7913 evaluation kit includes three boards that together allow the performance of the ADE7913 isolated sigma delta ADC to be evaluated in a context very close to an actual three phase meter implementation. The ADE7913 evaluation kit includes evaluation software, written in LabVIEW®, that provides access to the registers of every ADE7913 using a PC interface.
The file contains the evaluation board schematic, the bill of materials of the board, the layout files and the ADE7913 evaluation software installation files.
Documentation & Resources
-
UG-571: Evaluating the ADE7913 Isolated Sigma-Delta ADC11/5/2013PDF1070 kB
-
Assembly Board10/22/2013PDF
-
Bill of Materials10/22/2013XLSX
-
Schematic10/22/2013PDF
-
Layers10/22/2013ZIP
-
Silk Screen10/22/2013ZIP
