Overview

Features and Benefits

Wide Range BMS System

  • Can operate from 36V to 48V, can handle currents up to 100A​

Battery Chemistry Compatibility

  • Supports multiple battery chemistries: Ni-MH, Li-ion, LiFePO4, Sodium-ion, and others

System Integration

  • Can be used with Arduino-based microcontroller board
  • Plug-and-play integration<

Monitoring Capabilities

  • Cell voltage accuracy: ±3.6mV
  • Temperature monitoring: Up to 8 sensors
  • SoC/SoH Coulomb counting

Connectivity and Software

  • Daisy-chaining ready for multi-board configurations
  • With comprehensive GUI that is compatible with any PC/laptop and enables real-time battery monitoring and diagnostics

Product Details

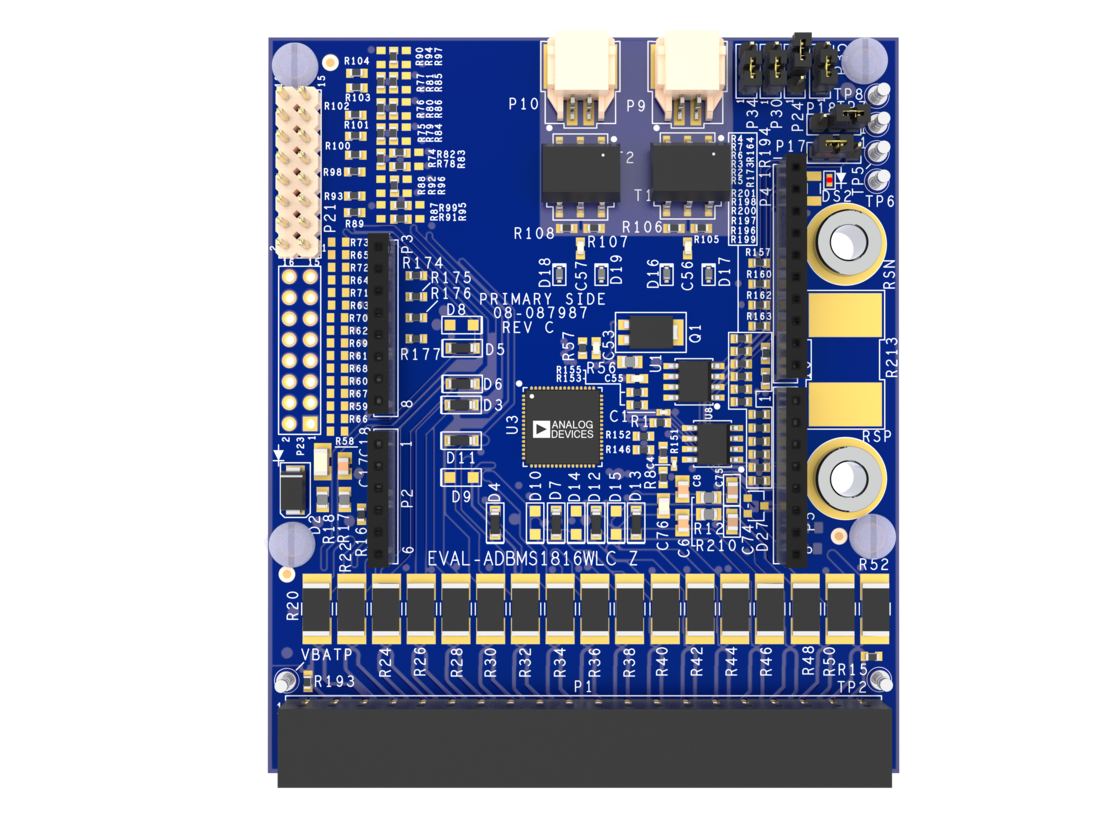

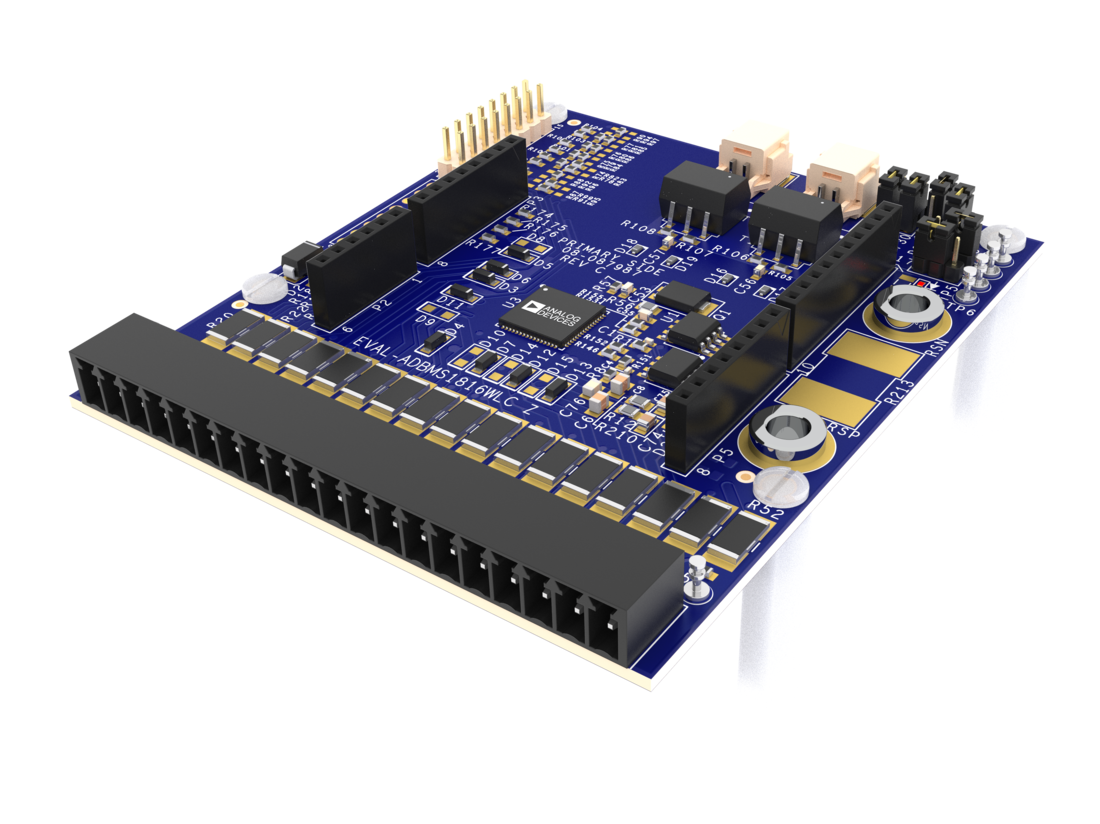

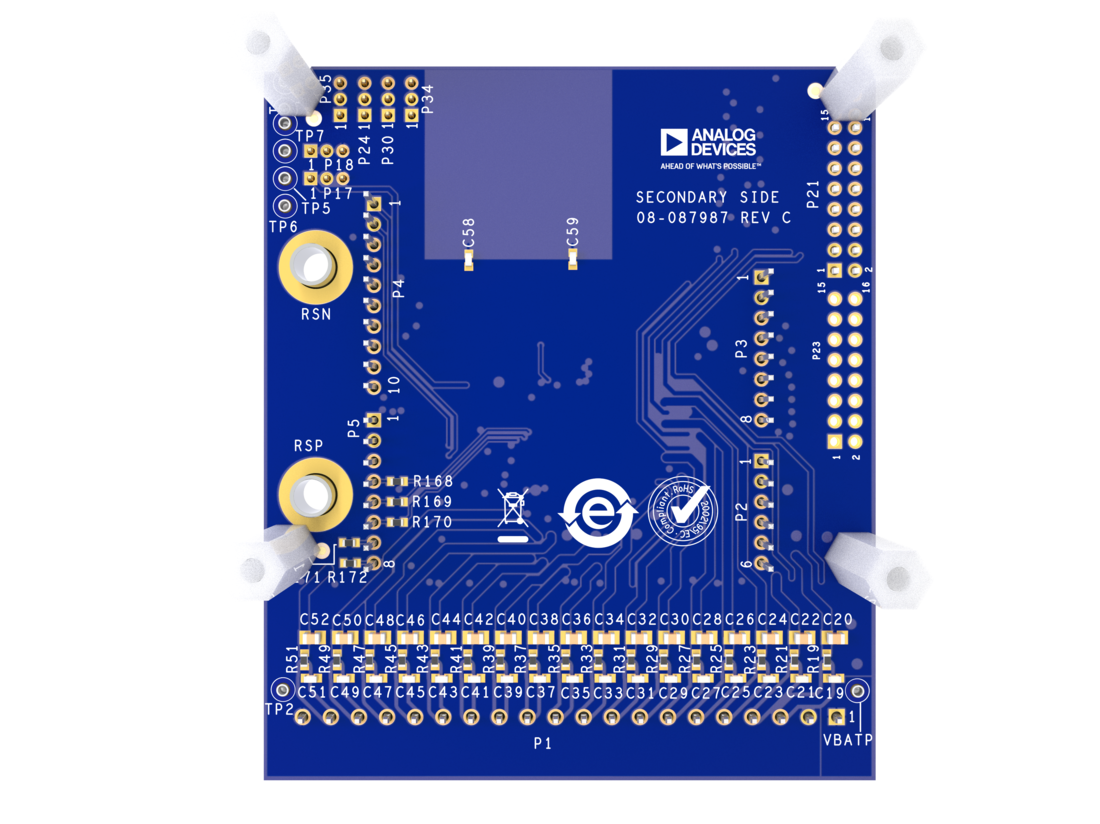

The EVAL-ADBMS1816WLC is an expansion and evaluation platform designed to work in conjunction with the AD-BMSE2E3WLC-48V Baseboard, providing additional cell-monitoring capability for battery packs used in Electric 2-Wheeler (E2W), Electric 3-Wheeler (E3W), and Light Electric Vehicle (LEV) applications.

The board is built around the ADBMS1816W battery-monitoring IC, which enables precise measurement of battery cell voltages. Designed for seamless integration, the EVAL-ADBMS1816WLC Daughter Board connects to the AD-BMSE2E3WLC-48V Baseboard through isoSPI communication, supporting scalable and daisy-chain-ready battery management architectures.

The design includes Arduino-compatible headers, dedicated cell connectors, and robust communication interfaces that simplify hardware setup and system expansion. When combined with the AD-BMSE2E3WLC software ecosystem, firmware examples, and GUI tools, the daughter board enables real-time cell-voltage monitoring, diagnostics, data visualization, and rapid evaluation of battery management algorithms for a wide range of rechargeable battery chemistries and energy-storage applications.

APPLICATIONS

  • Medium to High Performance Electric and Hybrid 2- or 3-Wheeler Vehicles
  • Light Electric Vehicles
  • BMS Battery Research and Development
  • Adaptive Battery Type System Monitoring
  • Portable Energy Storage Systems

For those interested in purchasing the Solution Kit, which includes the baseboard as well as the other accessories needed for full reference design evaluation, please visit the AD-BMSE2E3WLC-SL page.

Applicable Parts

Documentation & Resources

  • View All (2)
  • Design & Integration File (1)
  • User Guide (1)
    • Document Type

    Software

    ACE Software

    ACE Installer Software 1.30.3369.1491 [Jul 10 25]
    Analysis | Control | Evaluation (ACE) Software ​requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.​
    ACE Plug-in for Board ADBMSE2E3WLC 1.2026.3330839 [Aug 12 26]
    ACE Plug-in for evaluating the ADBMS1816 16-channel battery stack monitor​

    Evaluation Software

    AD-BMSE2E3WLC-SL Firmware (Rev. 1.0.0)
    Reference firmware for the ADBMS1816 16-channel battery stack monitor, built on the ADI no-OS framework. Provides selectable no-OS examples - basic measurement, cell balancing, DCC balancing, fixed-point SoC/SoH fuel gauging, and IIO host interaction — for cell/aux voltage and pack measurement over isoSPI.​
