AD-FMCOMMS8-EBZ Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Quad transmitters
Quad receivers
Quad input Observation Receiver for DPD
Max Rx BW: 200 MHz
Max Tunable Tx synthesis BW: 450 MHz
Max Observation Rx BW: 450MHz
Tuning range: 75 MHz to 6000 MHz
Fully integrated fractional-N RF synthesizers
Multi-chip phase synchronization for all RF LO and baseband clocks
Includes schematics, layout, BOM, HDL, Linux drivers and application software
Suitable for high channel density applications

Product Details

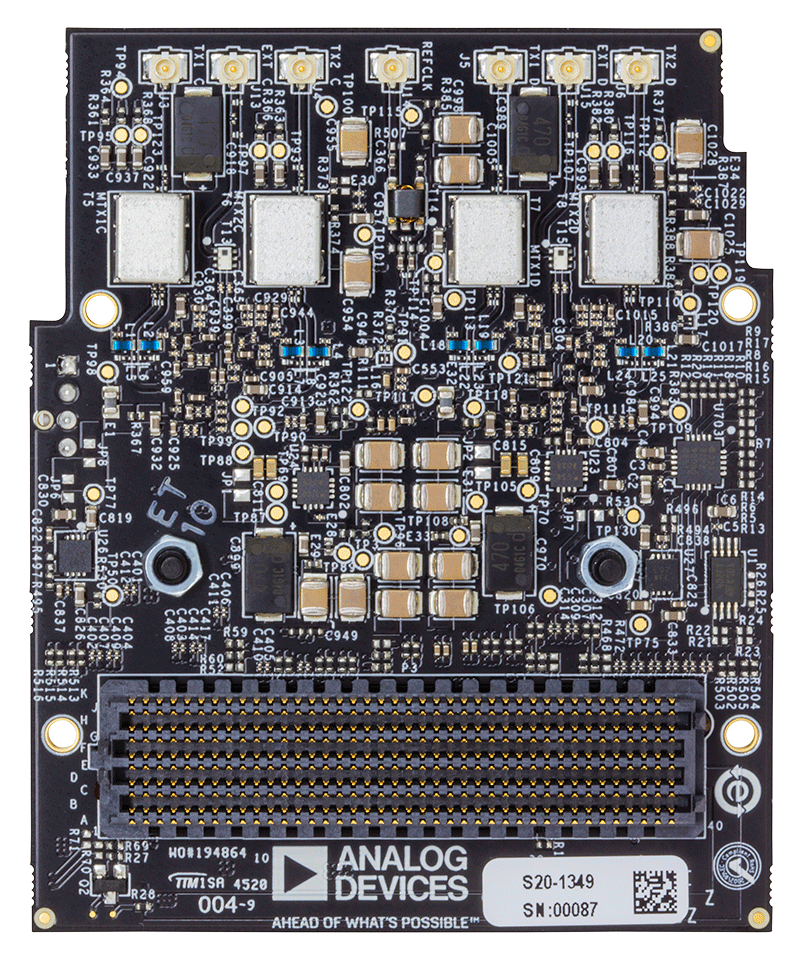

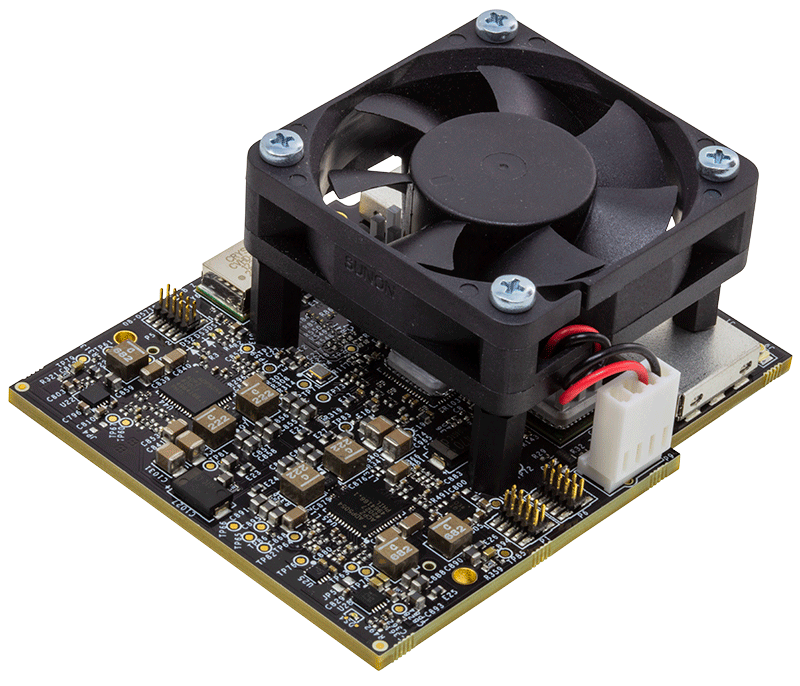

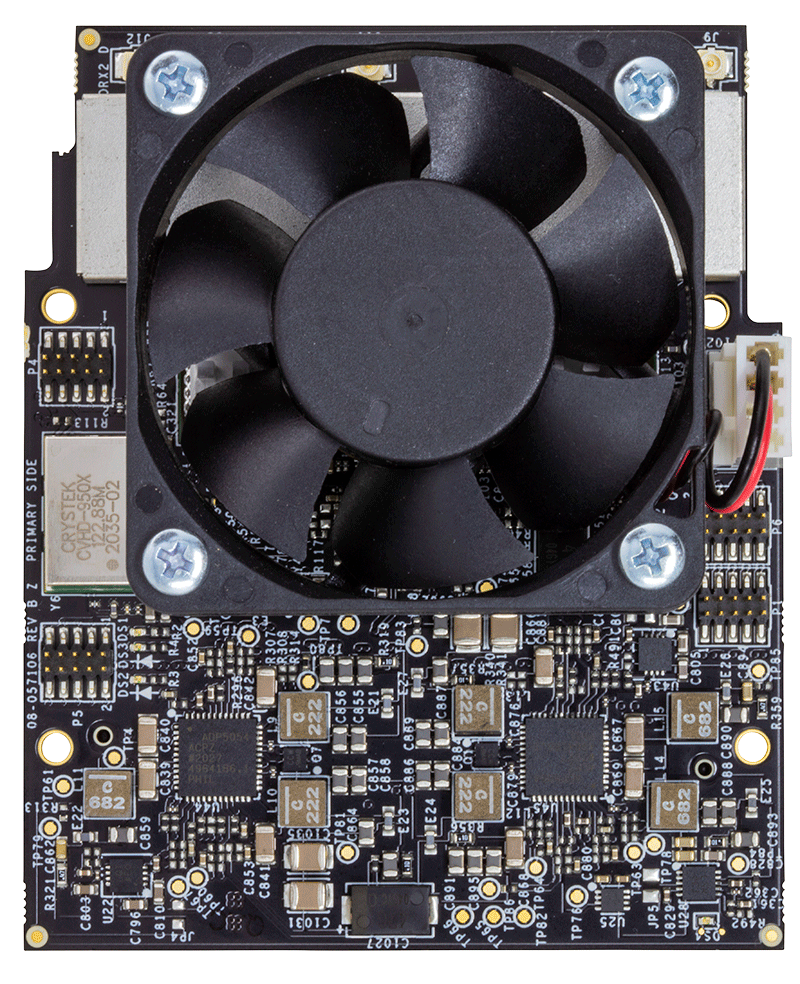

The AD-FMCOMMS8-EBZ is an integrated RF design containing two Analog Devices ADRV9009 wideband transceivers. It complies with VITA 57.1 mechanical dimensions 84mm × 69mm, but not full compliance with keep out areas. This allows easy connection to a compatible FPGA development board that supports FMC HPC mechanical connector and JESD204B bus interface. It can be used for prototyping with up to 4 Transmit and Receive channels that can be synchronised in phase and frequency. Additionally it can be used with the ADRV9009-ZU11EG RF-SOM system allowing for 8 phase and frequency synchronised Transmit and Receive channels for complex multi-stream applications ensuring end-to-end deterministic latency.
