Overview

Features and Benefits

  • Single supply operation from +12V on the Zedboard FMC connector
  • Digital Isolation
  • Power Isolation
  • On-board power blocks and reference sources

Product Details

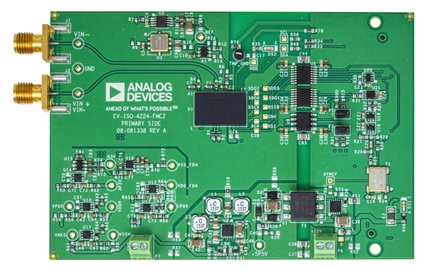

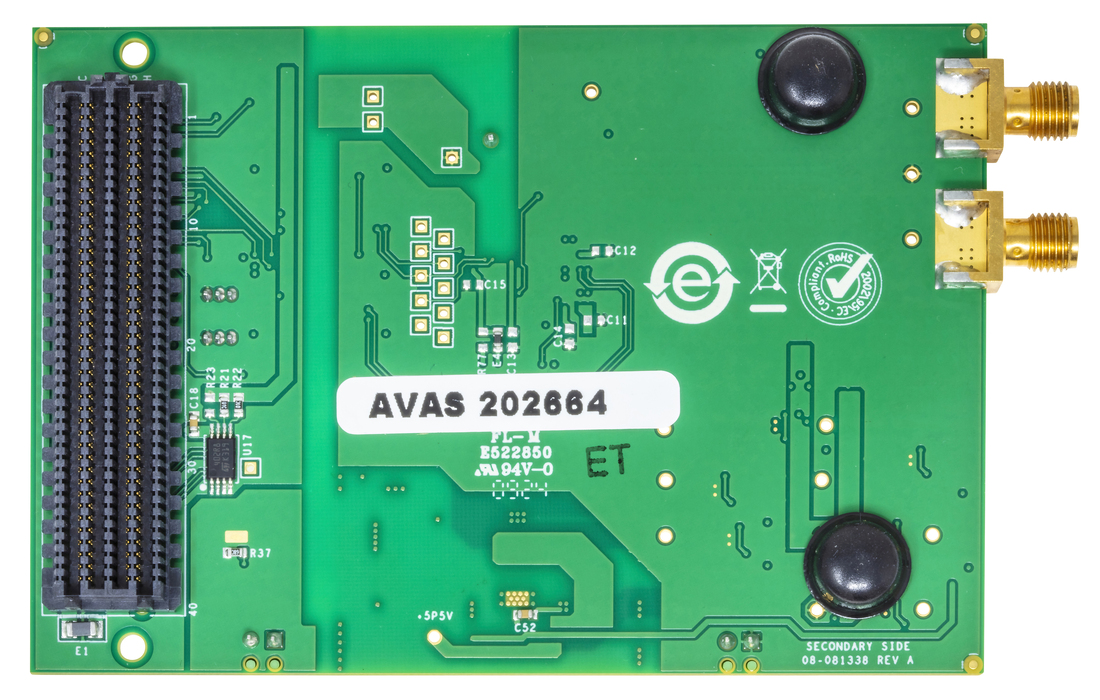

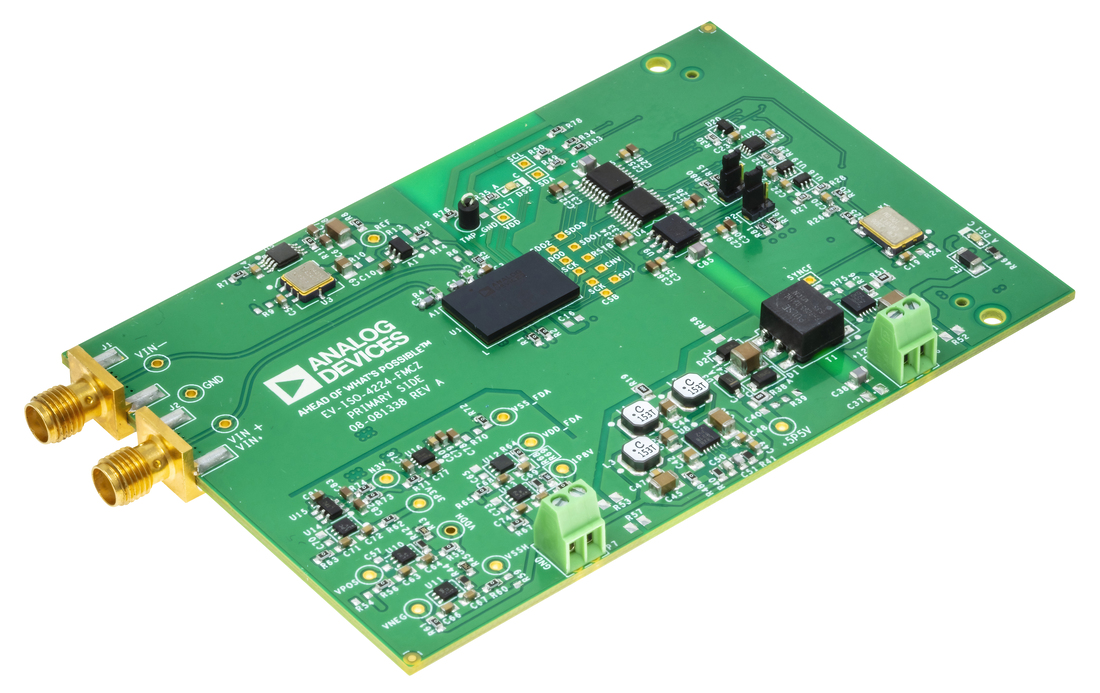

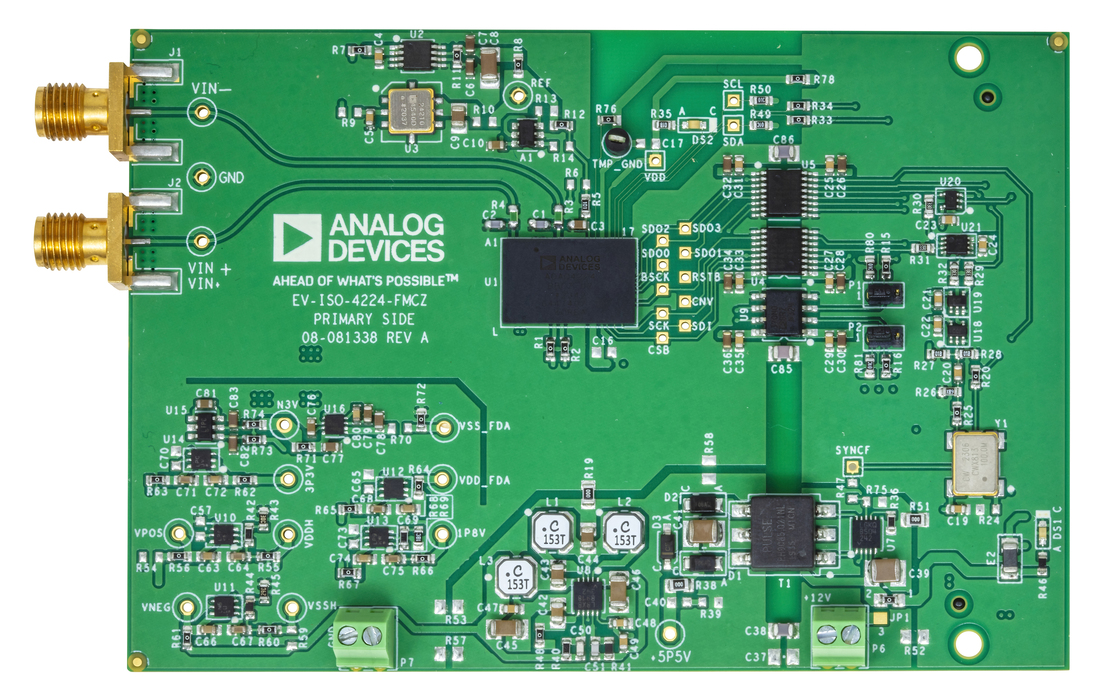

The EV-ISO-4224-FMCZ is an isolated digital and power reference design for the ADAQ4224, a 24-bit, 2MSPS μModule Data Acquisition Solution. On the EV-ISO-4224-FMCZ, the electrically isolated temperature sensor of the ADAQ4224 is connected to the controller side and has a separate ground potential versus the data acquisition signal path ground. The EV-ISO-4224-FMCZ has the power management blocks to generate all the necessary supply rails and reference voltage for the operation of the ADAQ4224 μModule.

Applications

  • Instrumentation & Measurement
  • Automated Test Equipment, Electronic, Test & Measurement
  • Precision Measurement

Applicable Parts

Package Contents

  • EV-ISO-4224-FMCZ reference design board
  • Micro-SD memory card (with adapter) containing system board boot software and Linux OS
  • Required - ZedBoard (system controller board) - Available from a 3rd Party

Documentation & Resources

  • View All (3)
  • User Guide (1)
  • Data Sheet (1)
  • Evaluation Design File (1)
    • Document Type

    Software

    ACE Software

    ZIP
    32 MB
    ACE plug-in for Board.ADAQ422X 1.2024.41400 [Oct 11 24]
    The Board.ADAQ422X plug in supports the EVAL-ADAQ4224-FMCZ and EV-ISO-4224-FMCZ boards. ADAQ4224 is a 24-Bit, 2 MSPS,μModule Data Acquisition Solution.
    EXE
    157 MB
    ACE Installer Software 1.30.3323.1470 [Jan 10 25]
    Analysis | Control | Evaluation (ACE) Software. Requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.
    ACE software page >

    Related Hardware (1)

    Daughter Boards
