DC814A2-K
LTC6908-2 Demo Board | Buffer Board with Associated DIP-8 Clock Board
Top
Overview
Product Details
Demonstration circuit DC814 provides a simple evaluation circuit for Linear Technology’s resistor-set and fixed frequency silicon oscillators.
Documentation & Resources
-

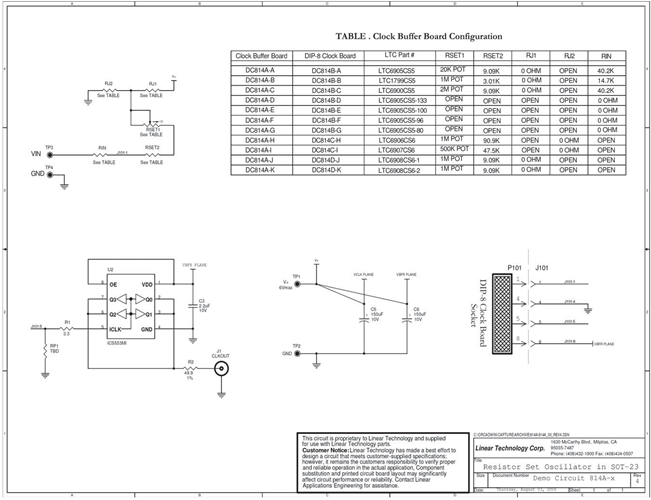

DC814A - Schematic9/2/2014PDF339K
-
DC814A - Demo Manual9/24/2009PDF1M
-
DC814A - Design File9/24/2009ZIP2M
