Overview

Product Details

Demonstration circuit 703 features the LTC3459 10V micropower synchronous boost converter. The circuit in DC703 is designed to generate an 8V output from a 1.8V to 5.5V input voltage range. The maximum output current is 40mA and is dependent on the input voltage.

Markets and Technologies

Applicable Parts

Documentation & Resources

  • View All (3)

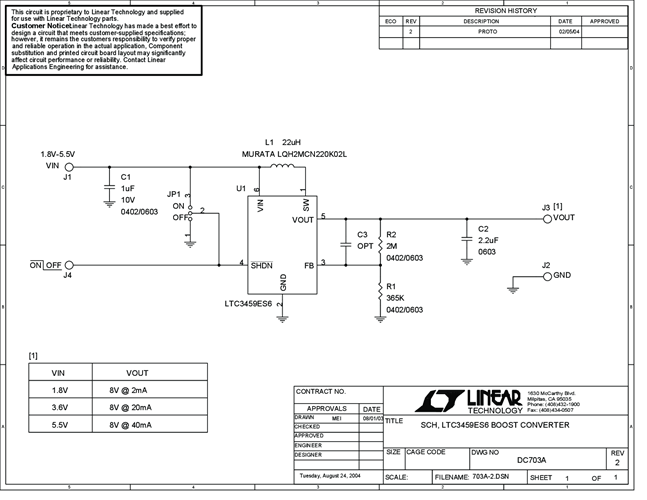

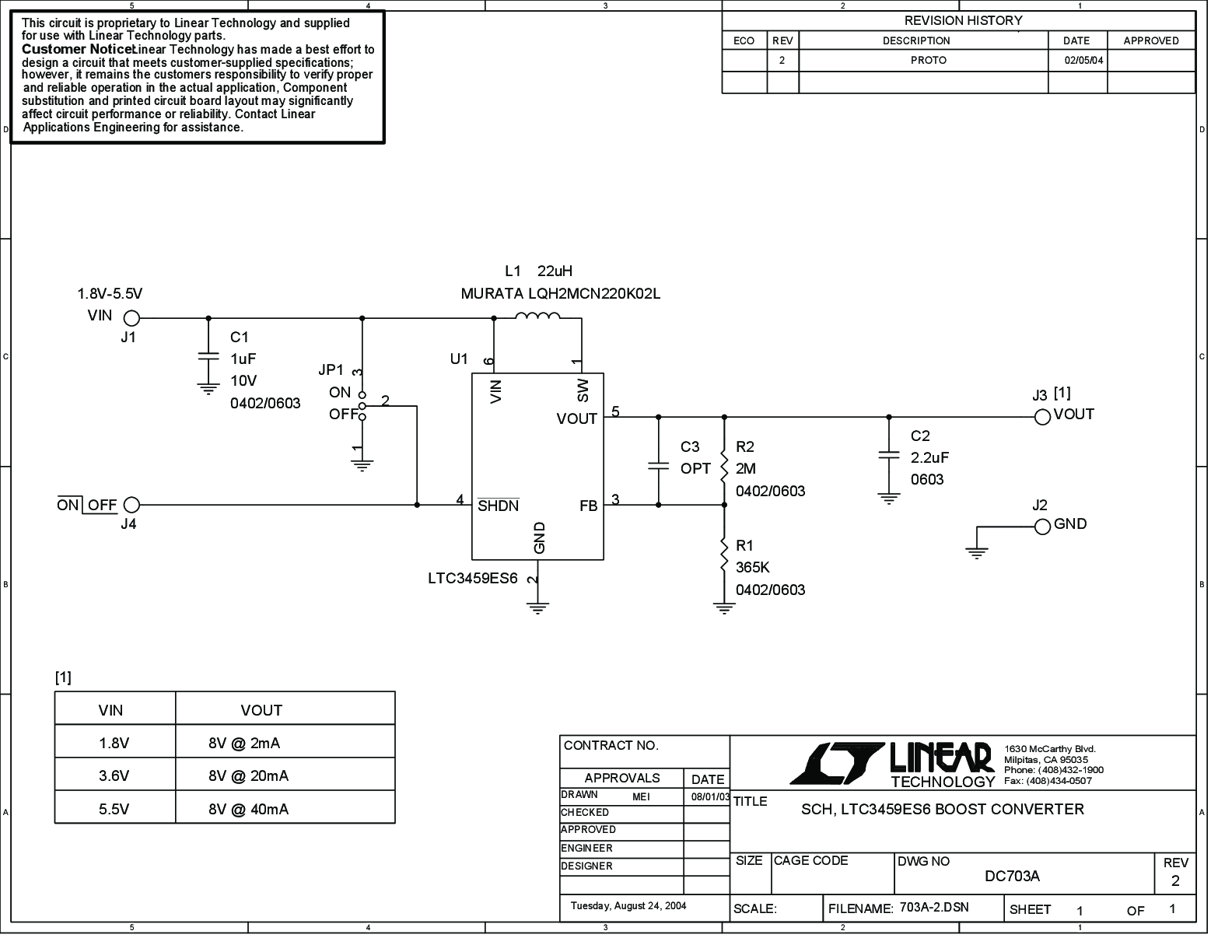

  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
    • Document Type
