DC536B-A
LTC4211CMS Demo Board | 7A Electronic Circuit Breaker and Hot Swap Controller
Top
Overview
Product Details
Demonstration circuit 536B is a hot swap controller with multifunction current control featuring the LTC4211. The DC536B-A is configured to operate with up to 7A load and DC536B-B up to 20A load.
Applicable Parts
Documentation & Resources
-
Hot Swap Controllers8/2/2023PDF0 M
-

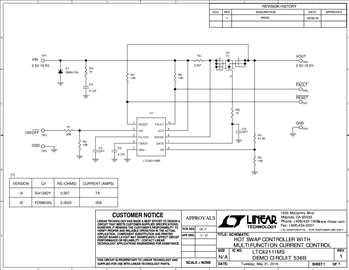

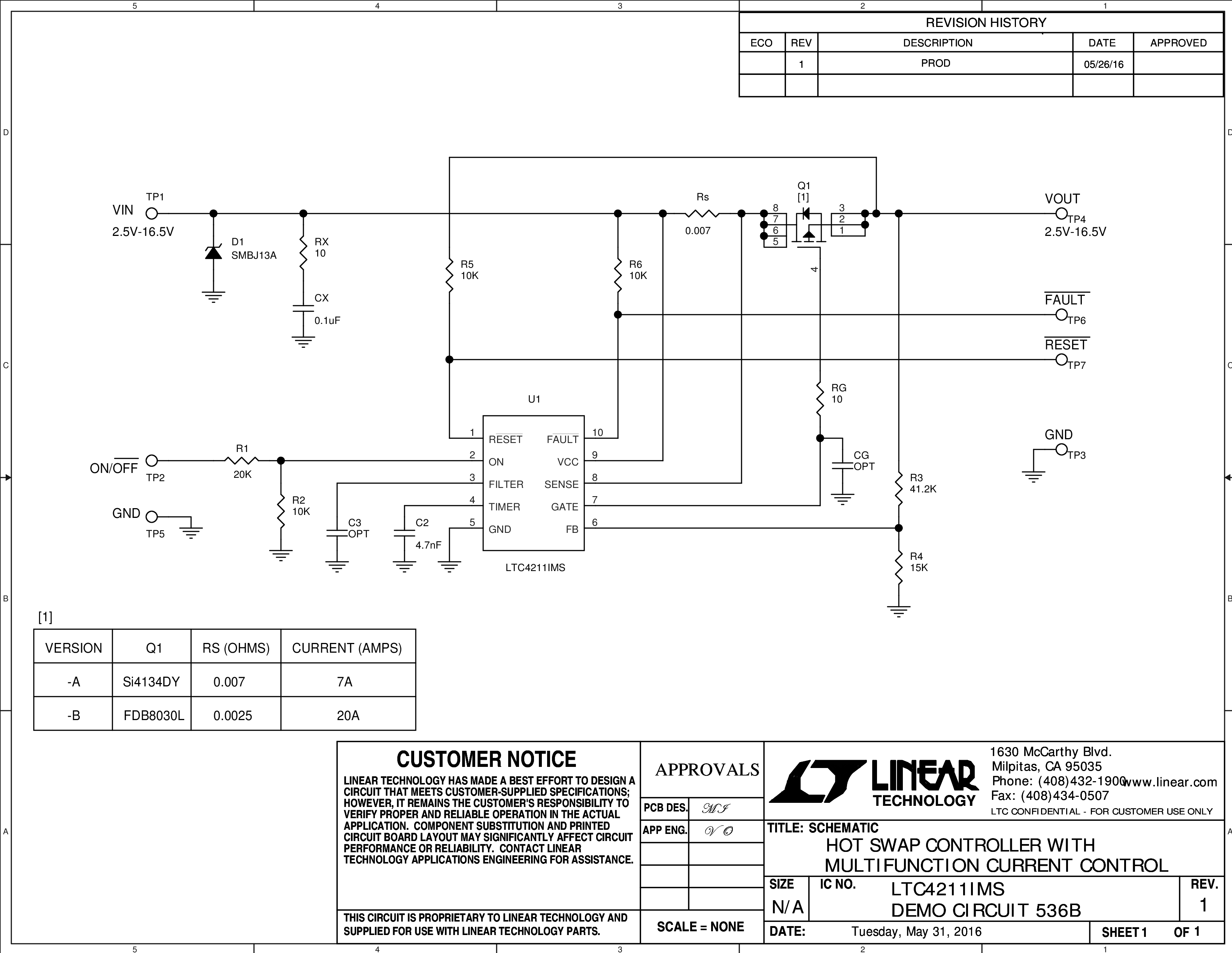

DC536B - Schematic1/27/2017PDF28K
-
DC536B - Demo Manual1/27/2017PDF277K
-
DC536B - Design Files1/27/2017ZIP2M
