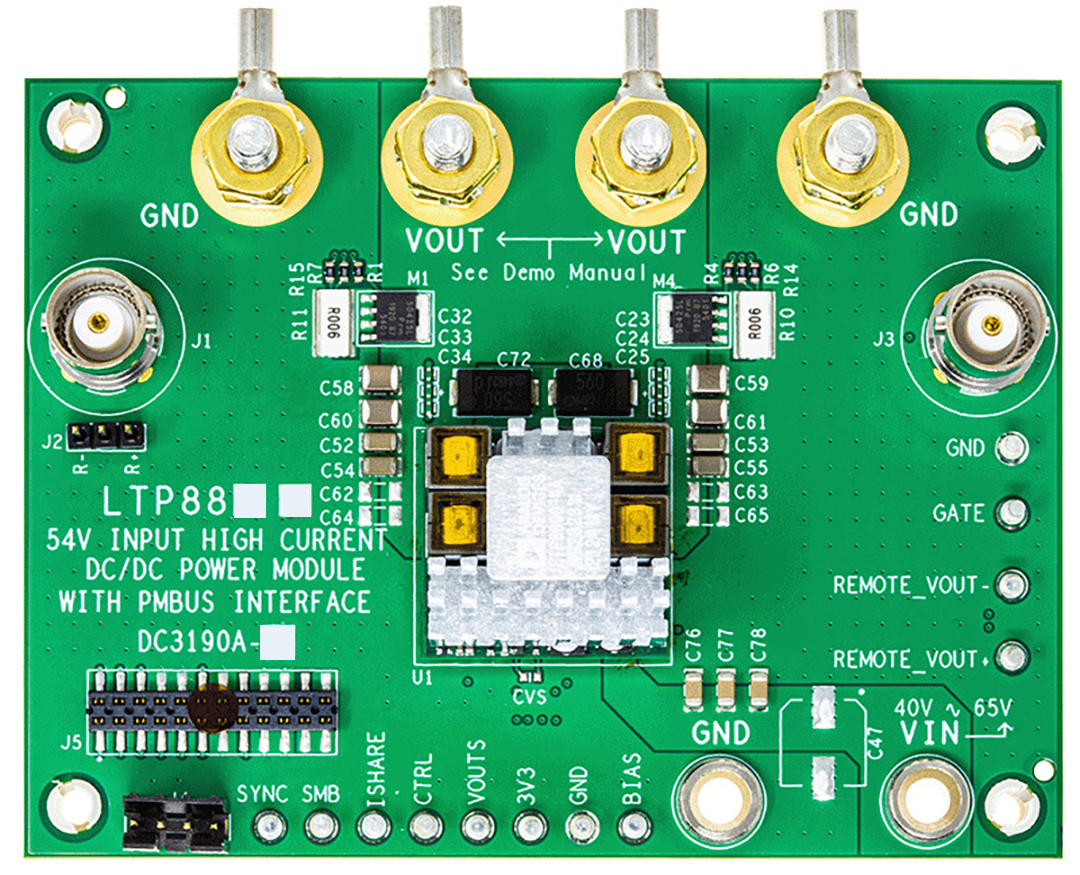

Demonstration circuit 3190A-D is a high current, high density, high efficiency open-frame μModule® regulator with 45V to 65V input range. The demo board has a LTP8803-1A μModule regulator which provides microprocessor 1.15V voltage from 54V power distribution architecture with digital power system management. The maximum output current for the demo board is 160A. Please see LTP8803-1A data sheet for more detailed information.
DC3190A-D powers up to default settings and produces power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status. DC2086A can optionally be used to program EEPROM of unpowered modules and ICs with a small 4-pin connector.
Applicable Parts
Documentation & Resources
-
DC3190A-D - Schematic3/23/2023PDF513K
-
DC3190A-D - Demo Manual (Rev. 0)3/23/2023PDF1M
-
DC3190A-D - Design Files3/23/2023ZIP17 M
