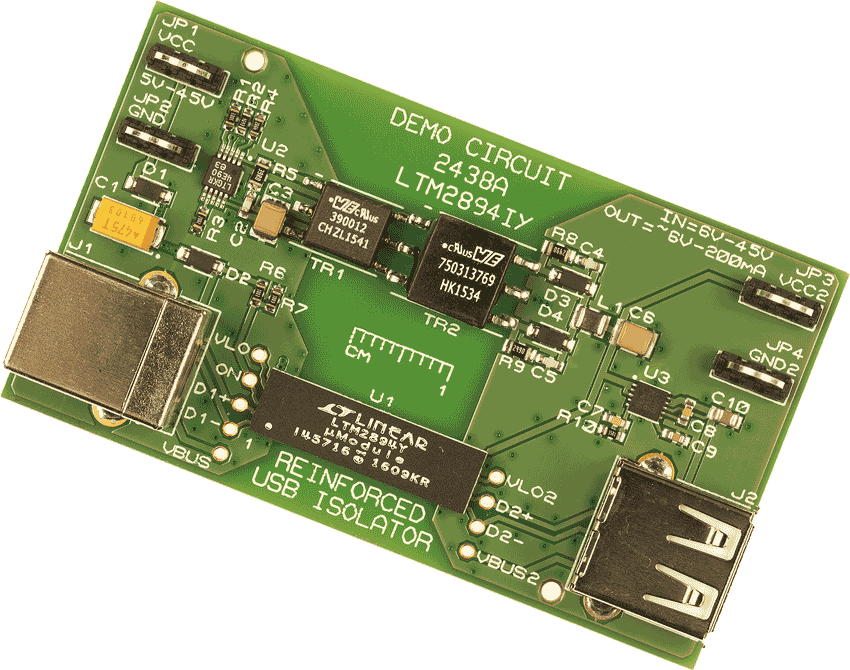

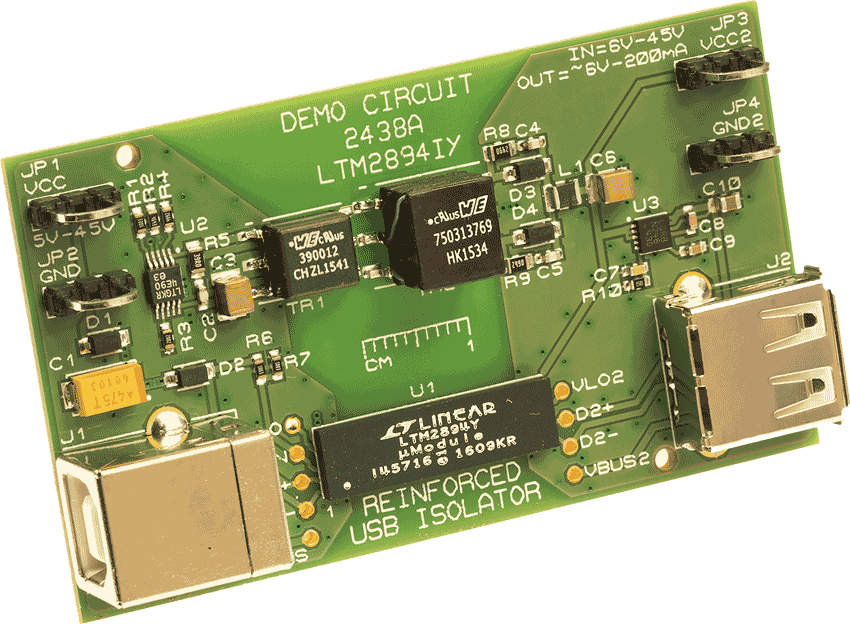

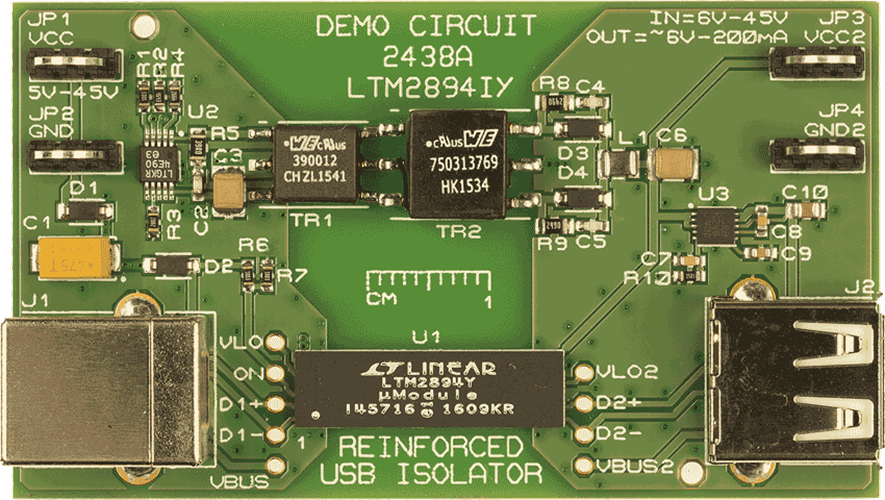

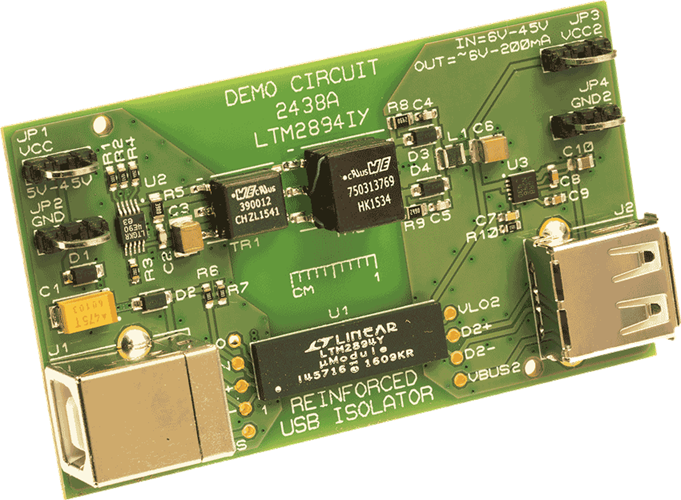

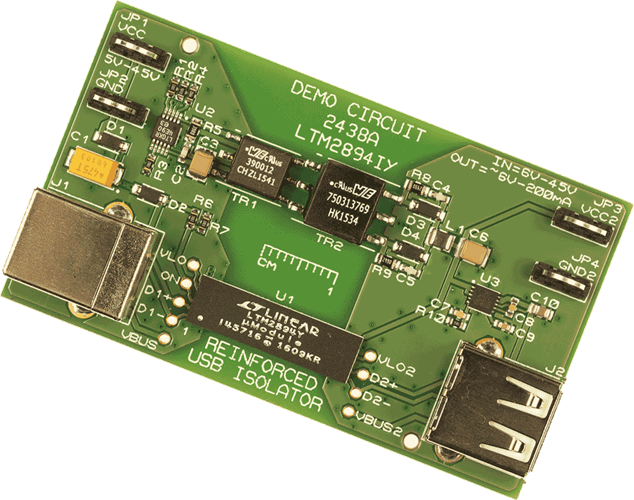

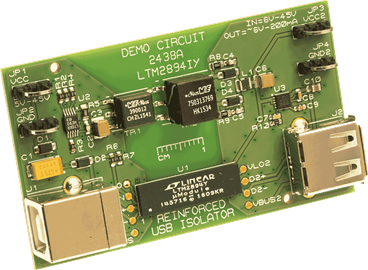

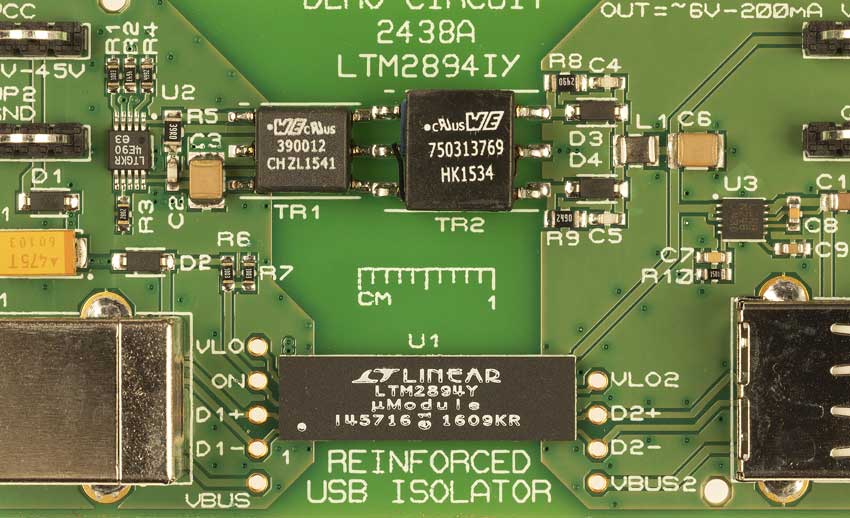

DC2438A
LTM2894 Demo Board | USB µModule Isolator
Top
Overview
Product Details

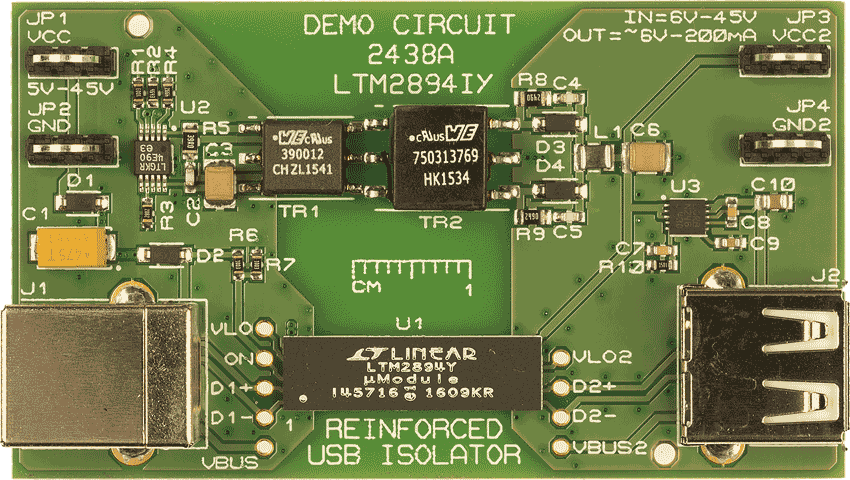

Demonstration circuit 2438A is an isolated USB data transceiver featuring the LTM2894. The demo circuit features an EMI optimized circuit configuration, including an isolated DC-DC converter, and printed circuit board layout. All components for data signaling and isolation are integrated into the LTM2894 using LTC’s isolator μModule® technology. The demo circuit operates from a supply on VCC and/or VBUS. The DC-DC converter generates an unregulated isolated output voltage on VCC2 and regulated 5V for USB communication on VBUS2.
Documentation & Resources
-

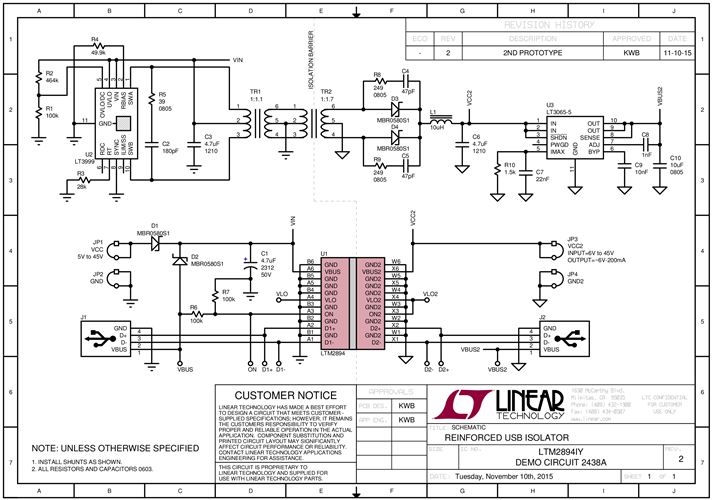

DC2438A - Schematic1/26/2017PDF22K
-
DC2438A - Demo Manual1/26/2017PDF350K
-
DC2438A - Design Files1/26/2017ZIP450K
