DC2317A
LTC7103 Demo Board | VIN = 5V to 100V with VOUT = 5V at 2.3A @ 400kHz
Top
Overview
Product Details

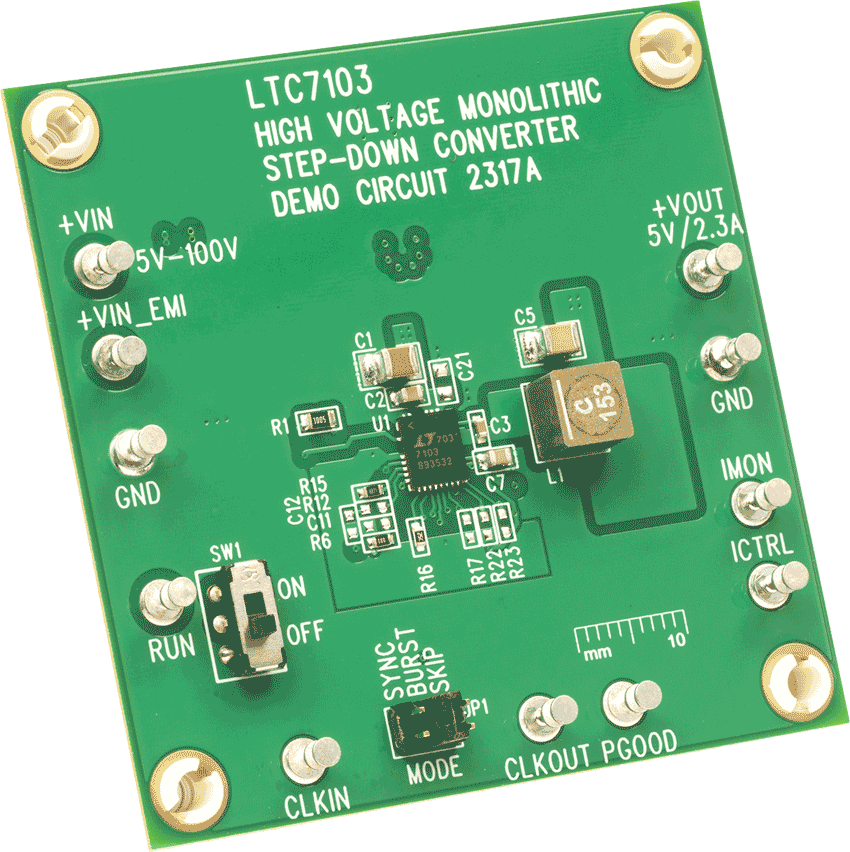

Demonstration circuit 2317A is a 100V monolithic DC/ DC step-down regulator featuring the LTC7103. The demo board is designed for a 5V/2.3A output from a 5V to 100V input at 400kHz switching frequency. The wide input range makes it suitable for automotive, industrial, medical instrument, and telecom applications. This buck regulator has a peak efficiency of 93.5% at 12VIN, 88.3% at 48VIN and 81.5% at 100VIN.
Applicable Parts
Documentation & Resources
-
DC2317A - Schematic7/13/2017PDF36K
-
DC2317A - Demo Manual7/13/2017PDF1 M
-
DC2317A - Design Files7/13/2017ZIP2M
