DC2298A
LTC3884 Demo Board I Programming Clamshell Socketed Demo Board
Top
Overview
Product Details

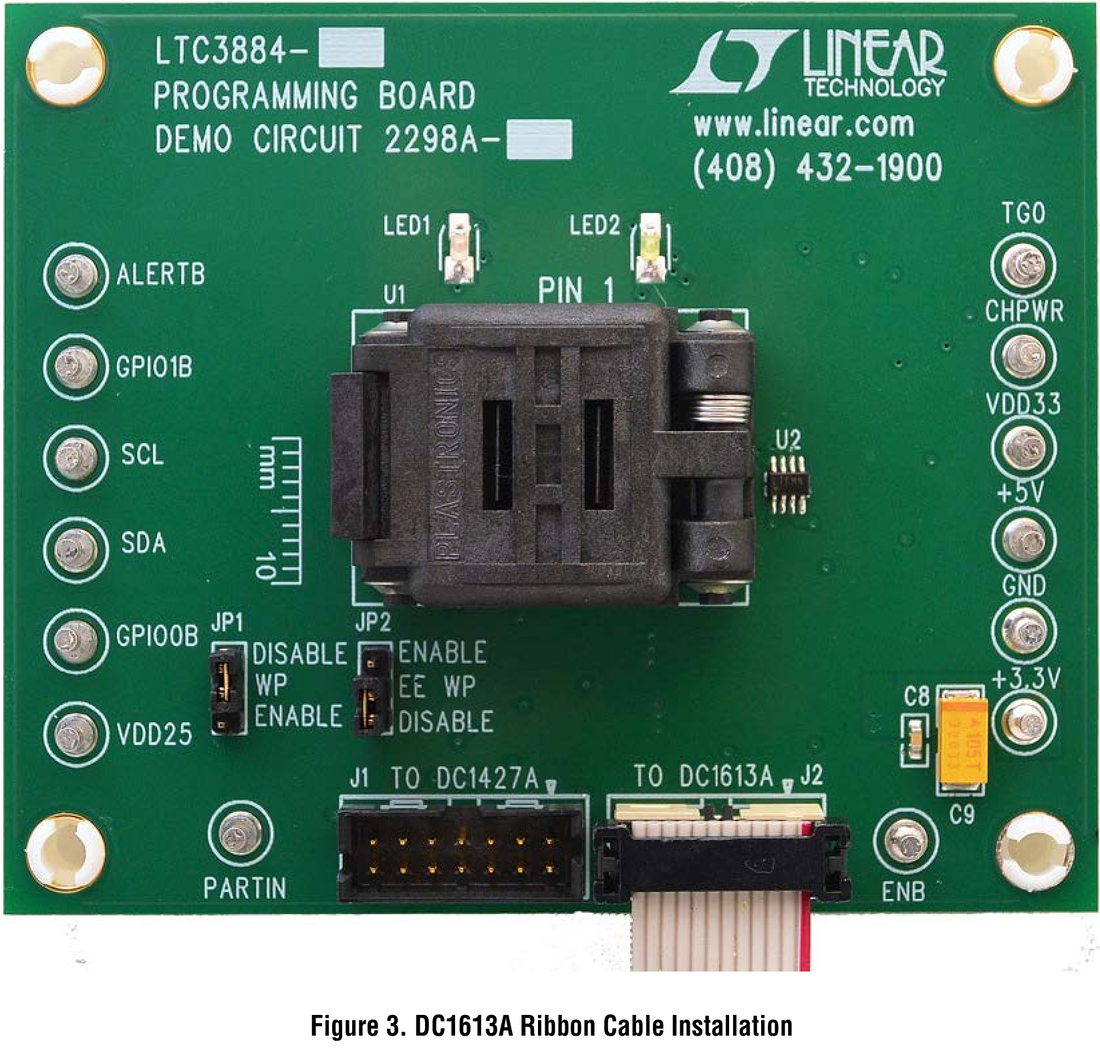

Demonstration circuit 2298A contains the circuitry needed to program and verify the EEPROM of the LTC3884 in the UK package and that is its only purpose. The DC2298A is shipped with a LTC3884 installed in the clamshell style programming socket and its EEPROM contains the factory default configuration. The LTpowerPlay® #.proj file that corresponds to the factory default can be found in the GUI.
Applicable Parts
Documentation & Resources
-
DC2298A - Schematic8/30/2016PDF54K
-
DC2298A - Demo Manual8/30/2016PDF0M
-
DC2298A - Design Files8/30/2016ZIP938K
