DC2254A-A
LTC2956-1 Demo Board | Wake-Up Timer with Pushbutton Control, EN Pin
Top
Overview
Product Details
Demonstration circuits 2254A-A and 2254A-B feature the LTC2956-1 and LTC2956-2, respectively. The LTC2956 is a micropower, wide input voltage range, configurable wake-up timer with pushbutton control. It periodically wakes up and turns on a connected system to perform tasks like monitoring temperature or capturing images. After completing the task, the LTC2956 turns the system off to conserve power. The wake-up timer period can be adjusted from 250ms to 39 days.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

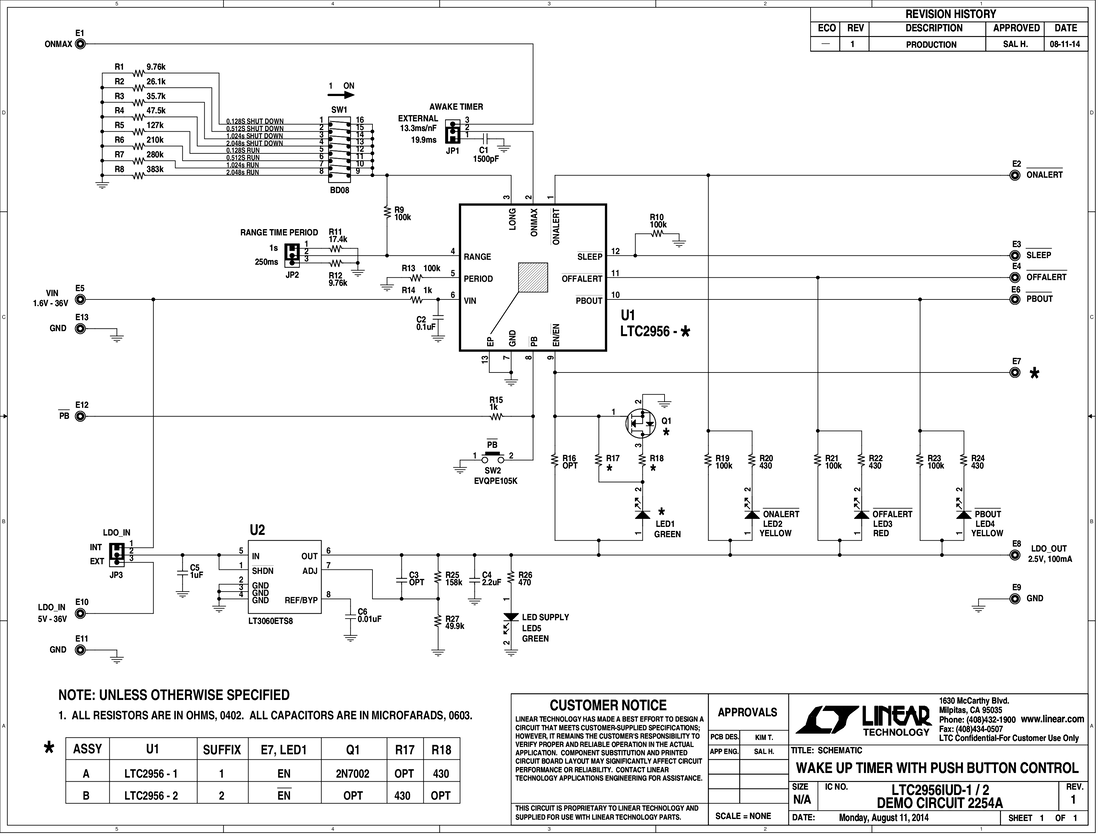

DC2254A - Schematic3/9/2015PDF38K
-
DC2254A - Demo Manual3/9/2015PDF269K
-
DC2254A - Design Files3/9/2015ZIP891K
