Overview

Product Details

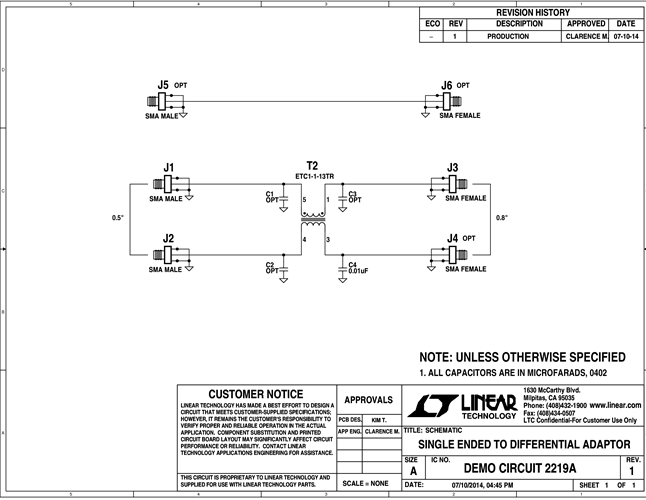

Demonstration circuit 2219 is an adaptor board to be used with high speed ADCs. It is designed to receive a single-ended signal on J3 and output a differential signal on J1 and J2. This is done with a balun transformer with a range from 5MHz to 3000MHz. The spacing of J1 and J2 is 0.5".

Documentation & Resources

  • View All (3)
  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
    • Document Type

    Related Hardware (3)

    Daughter Boards

    COMPATIBLE PRODUCT EVALUATION BOARDS

    This controller board was designed to be used in conjunction with various ADI component evaluation boards as part of a customer evaluation environment. The following boards are compatible with the LinearLabs tools and this controller board.
    Fully Differential Amplifiers (1)
    X+
    Standard High Speed A/D Converters (1)
    X+
