DC2183A-A
LTC2107 Demo Board | 16-Bit, 210Msps High Performance ADC with DDR LVDS Outputs, 1MHz < Ain < 70MHz, (Requires DC1371)
Top
Overview
Product Details
Demonstration circuit 2183A supports the LTC2107, a high speed and high dynamic range ADC. It was specially designed for applications that require a single-ended AC coupled input. DC2183 supports the LTC2107 using the DDR LVDS output mode.
Applicable Parts
Documentation & Resources
-

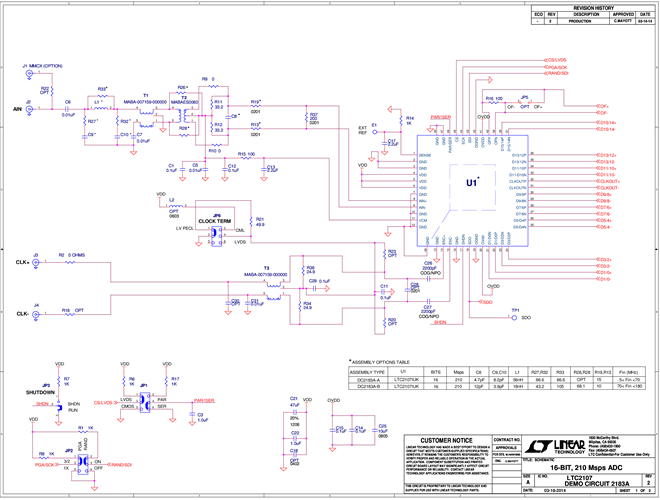

DC2183A - Schematic7/28/2014PDF128K
-
DC2183A - Demo Manual7/28/2014PDF568K
-
DC2183A - Design Files7/28/2014ZIP2M
