DC1780A-C
LTM4620EV Demo Board | LTM4620 (x4) PolyPhase µModule Buck, 4.5V ≤ VIN ≤ 16V, VOUT = 1.0V/1.2V/1.5V/1.8V/2.5V @ 100A
Top
Overview
Product Details
Demonstration circuit 1780A-C features poly phase design using the LTM4620EV, the high efficiency, high density, dual 13A, switch mode step-down power module regulator. The input voltage is from 4.5V to 16V. The output voltage is jumper selectable from 1.0V to 2.5V. DC1780A-C can deliver nominal 100A output current with 4× LTM4620s in parallel. Output current derating is necessary for certain VIN, VOUT, and thermal conditions.
Applicable Parts
Documentation & Resources
-

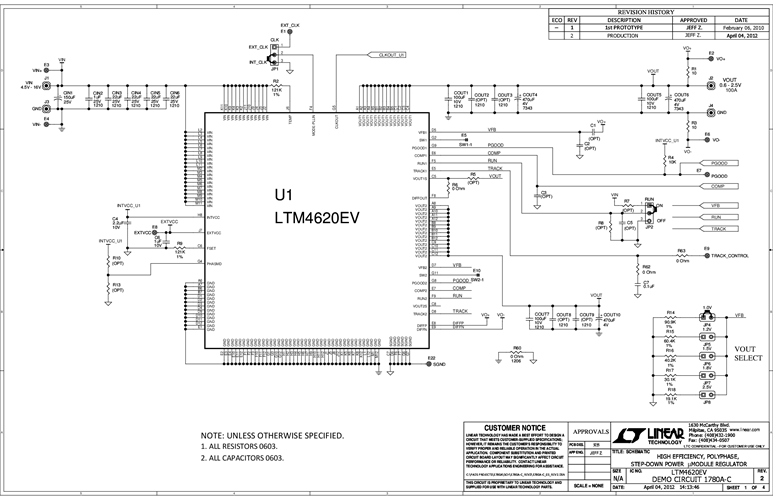

DC1780A-C - Schematic8/3/2012PDF219K
-
DC1780A-C - Demo Manual8/3/2012PDF608K
-
DC1780A-C - Design Files8/3/2012ZIP4M
