Demonstration circuit 1527 is a monolithic step-down DC/DC switching regulator featuring the LT3971. The switching frequency is adjustable up to 2MHz. The demo circuit is designed for 3.3V, 1.2A output from a 4.5V to 38V input. The circuit consumes only 2.8μA of quiescent current.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

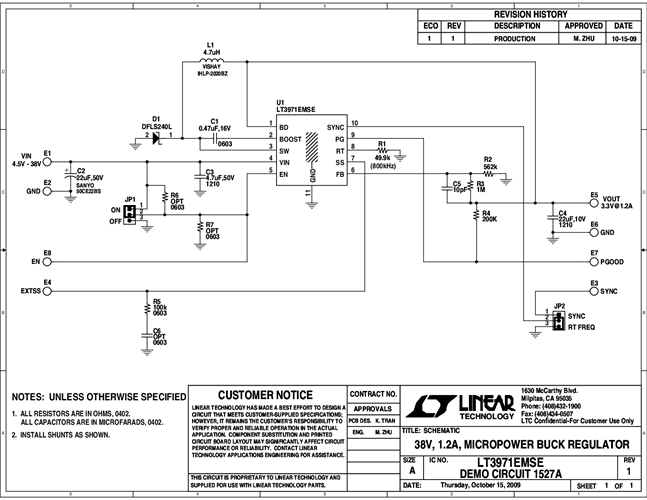

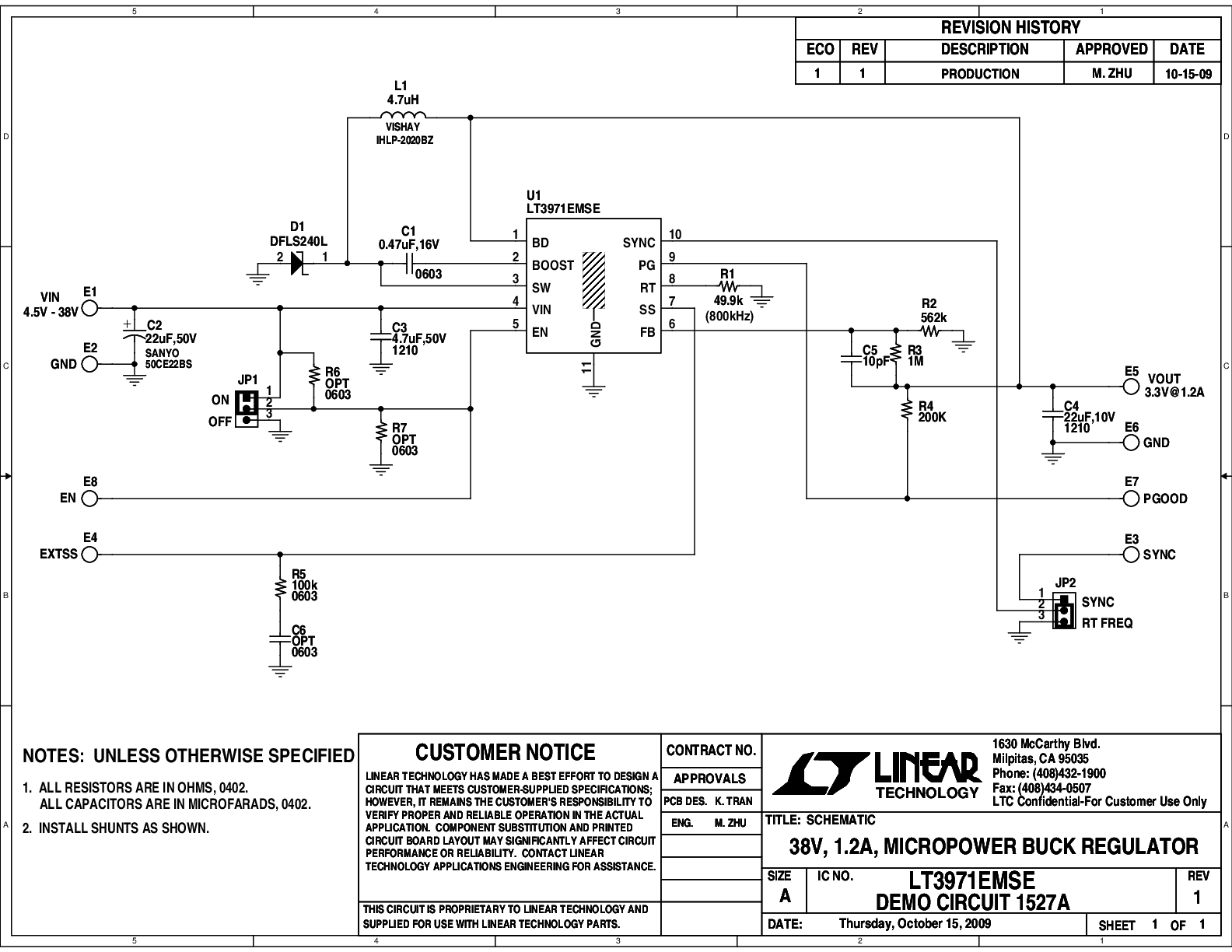

DC1527A - Schematic4/15/2010PDF37K
-
