DC1431A-B
LTC5541IUH Demo Board | Optimized for RF = 1.3GHz to 2.3GHz, LO = 1.4GHz to 2GHz, IF = 190MHz
Top
Overview
Product Details
DC1431A-B: Demo Board for the LTC5541 1.3GHz to 2.3GHz High Dynamic Range Downconverting Mixer.
Applicable Parts
Documentation & Resources
-

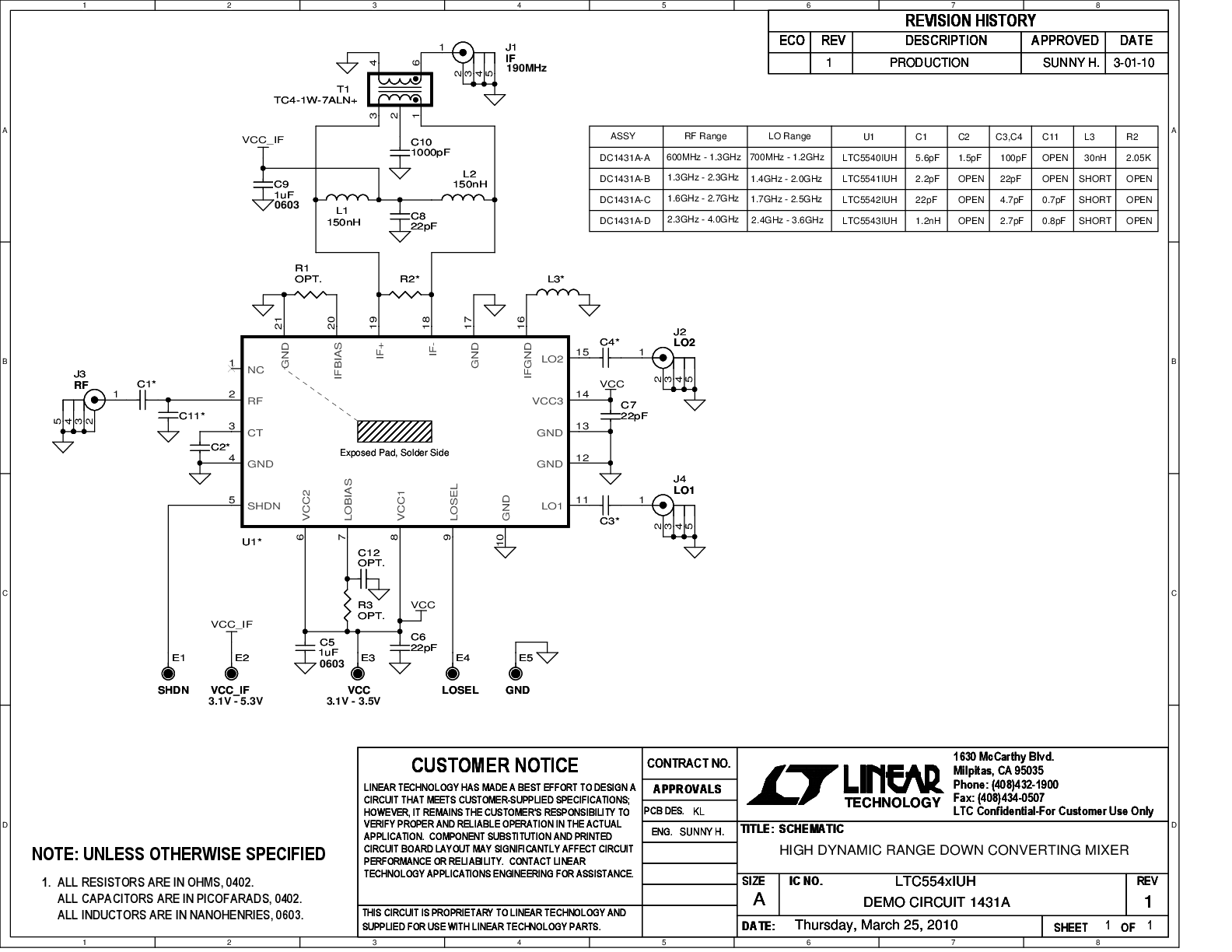

DC1431A - Schematic4/15/2010PDF49K
-
DC1431A-B - Demo Manual4/30/2010PDF977K
-
DC1431A - Design Files4/15/2010ZIP874K
