DC1428A
LT3645EMSE Demo Board | VIN = 5V to 36V, VOUT1 = 3.3V @ 300mA, VOUT2= 2.5V @ 200mA
Top
Overview
Product Details
Demonstration circuit 1428A features the dual output LT3645 step-down regulator plus linear regulator. The circuit is designed to convert a 5V to 36V (55V transients) input source to 3.3V at 500mA using the buck regulator and this output is linear regulated down to provide 2.5V at 200mA. Thus the two outputs provide 300mA (buck) and 200mA (LDO).
Applicable Parts
Documentation & Resources
-

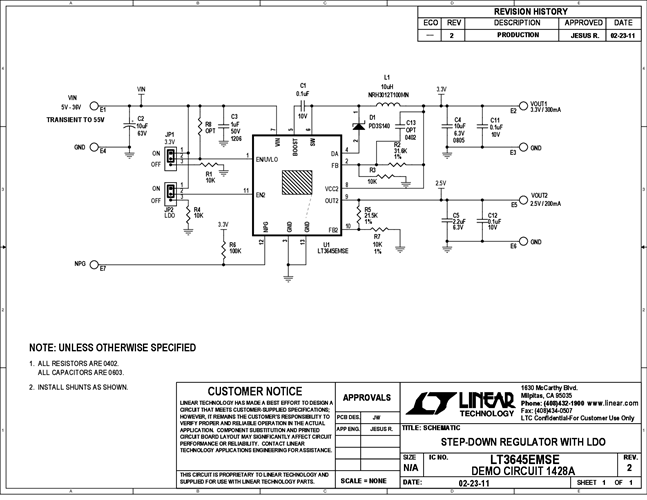

DC1428A - Schematic5/4/2012PDF37K
-
DC1428A - Demo Manual6/13/2011PDF153K
-
DC1428A - Design Files6/13/2011ZIP623K
