DC1312A
LT3689EUD Demo Board | 4.5V ≤ VIN ≤ 36V (60V Transients), VOUT = 3.3V @ 700mA
Top
Overview
Product Details
Demonstration circuit 1312 is a monolithic 700mA step-down regulator withpower-on reset and watchdog timer featuring the LT3689. The board operates with inputs from 4.5V up to 36V and withstands transients up to 60V. The output is 3.3V, 700mA. The power-on reset and watchdog timer periods are independently adjustable using external capacitors.
Applicable Parts
Documentation & Resources
-

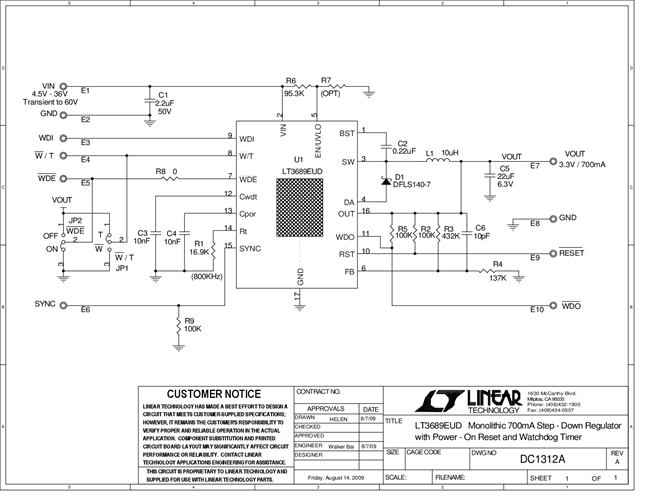

DC1312A - Schematic10/7/2009PDF29K
-
DC1312A - Demo Manual10/7/2009PDF296K
-
DC1312A - Design Files10/7/2009ZIP607K
