DC1122A
LT3681EDE Demo Board | Integrated Boost/Catch Diodes, 4.5V ≤ VIN ≤ 34V, VOUT = 3.3V @ 2A
Top
Overview
Product Details
Demonstration circuit 1122 features the LT3681 in a 500kHz step-down converter circuit, designed for 3.3V/2A output from a 4.5V to 34V input. The LT3681’s integrated boost diode and catch diode reduce the parts count.
Applicable Parts
Documentation & Resources
-

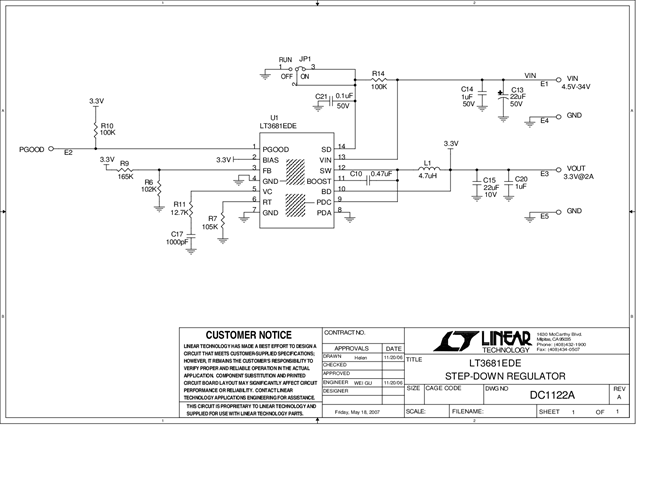

DC1122A - Schematic9/24/2009PDF25K
-
DC1122A - Demo Manual9/24/2009PDF186K
-
DC1122A - Design File9/24/2009ZIP473K
