Overview

Features and Benefits

  • For Automotive Applications up to 3A
  • Triple Layout for D-Pak, D2-Pak or S-8 MOSFETs
  • 0.093-inch Turret Holes Accommodate 12 AWG Wire
  • LEDs Show Input, Outputs, Fault and Enable
  • Easily Modified for up to 20A

Product Details

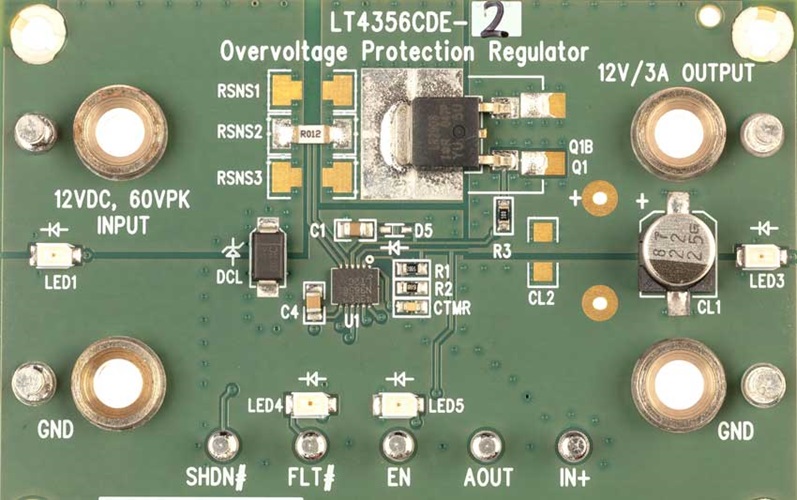

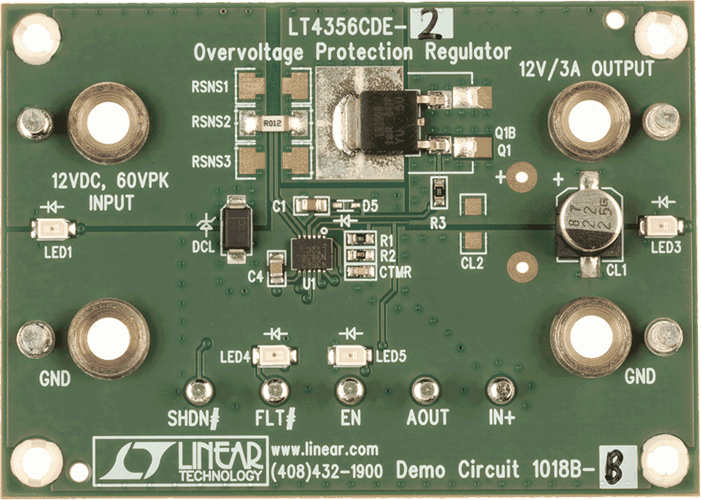

Demonstration Circuit DC1018B-B showcases the LT4356-2 Surge Stopper in a 12V, 3A application. Input transients of up to 60V are limited to 16V at the output; sustained overvoltage conditions cause the limiter to trip off and retry after the overvoltage is removed.

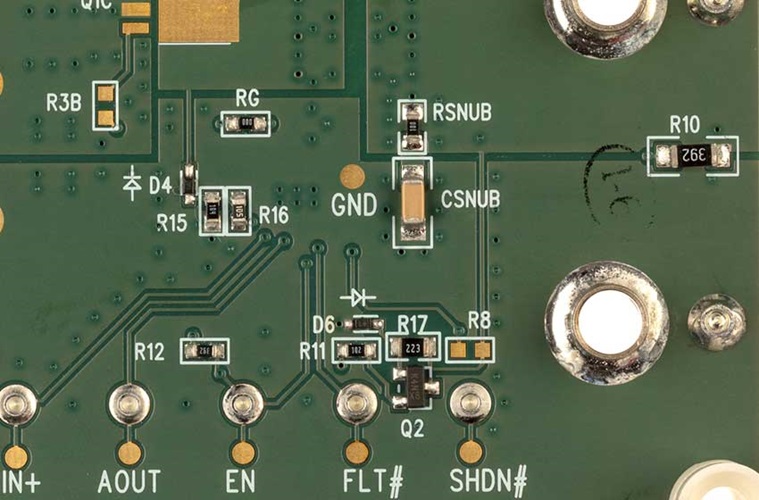

LEDs indicate the presence of +12V input and output, as well as state of the fault output, FLT# and enable output, EN.

Input and output connections are made by 93 mil turrets which if removed, accommodate insertion of up to 12 gauge wires for in-situ testing.

Design files for this circuit board are available below.
