Overview

Features and Benefits

  • Input Supply Range from 3V to 20V
  • Adjustable Output Voltage Range between 0.8V and12V
  • Delivers up to 3.5A Output Current (up to 2.5A for the ADPL12002)
  • Frequency Synchronization Input
  • 99% Duty Cycle Operation with Low Dropout
  • Voltage-Monitoring PGOOD Output with UV/OV Feature
  • Proven Printed Circuit Board (PCB) Layout
  • Fully Assembled and Tested

Product Details

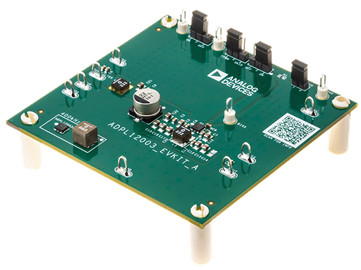

The ADPL12003 evaluation kit (EV kit) provides a proven design to evaluate the ADPL12002/ADPL12003, high input-voltage, mini buck converter in a 15-pin, 17-pin flip-chip quad flat no-lead (FC2QFN) package. Various test points and jumpers are included for evaluation. The ADPL12003 EV kit comes with the ADPL12003AFLB+ installed (3.3V, 1.5MHz). This EV kit can be used to evaluate all variants of the ADPL12002/ADPL12003 with minimal component changes.

Applicable Parts

Getting Started

Required Equipment

  • ADPL12003 EV Kit
  • Power Supply (PS)
  • Voltmeter
  • Electronic Load
