Overview

Features and Benefits

  • JTAG Programming
  • Serial (UART) Programming
  • USB Powered
  • Xilinx JTAG Compatible

Product Details

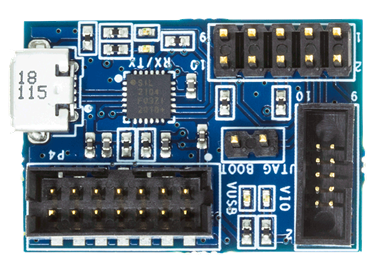

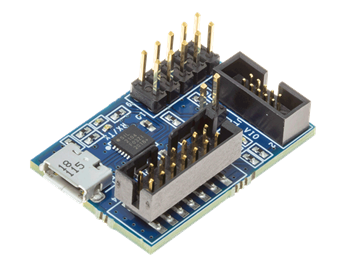

The ADALM-UARTJTAG is a small form factor JTAG and serial programmer board. For many embedded designs we did not include the Serial or JTAG programmability for space and cost reasons. So if you need to reprogram the devices, than you’ll need this small breakout board to do so.

Package Contents

  • ADALM-UARTJTAG
  • 10-pin Ribbon Cable
