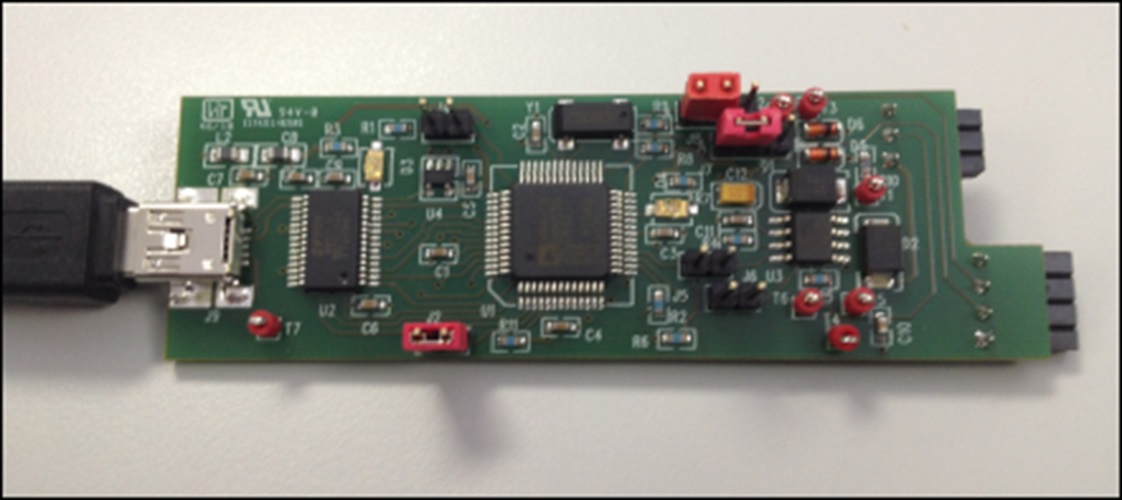

USB-I2C_LIN-CONV-Z

Serial Downloader USB-I²C/LIN-CONV-Z for I²C and LIN

Top

Overview

Product Details

Product Details

This adaptor is for use on devices with I²C or LIN download capability. It can be used for download, debug and general purpose communication via I²C or LIN. It enables debugging of parts and can be used with the applicable ADI downloaders. For devices with UART download capability, use EVAL-ADUC-CABLE1.

Documentation & Resources

User Guide

UG-176: Evaluation Board User Guide for ADuC7023
7/21/2010

PDF

486 K

Evaluation Design File

MicroConverter Development Tools
2/14/2015

Software

View All (1)
Evaluation Software (1)

Evaluation Software

Downloader using USB-I2C/LIN-CONV-Z

Specifically for Eval-ADuC7023 Evaluation Board (zip)

Utility to Allow Use P0.4/P0.5 of ADuC7023 on Evaluation Board (zip)

USB-I2C/LIN-CONV-Z - Adaptor, supporting in-circuit programming using I2C, LIN protocol 4 and LIN protocol 6

I2CWSD.exe for downloading to ADuC702x parts with suffix 1.

LINHWSD.exe for downloading to ADuC7033 parts

LINBWSD.exe for downloading to ADuC7032 parts

LINMWSD for downloading to ADuCM33x parts

Related Hardware (3)

Daughter Boards

EVAL-ADUC7020
ADUC7019/20/21/22 Quick Start Development System
EVAL-ADUC7036
ADuC7036 QuickStart Plus Development System
EVAL-ADUC7039
ADuC7039 QuickStart Plus Development System
