ADIS16260/PCB
ADIS16260 Daughter Board
Top
Overview
Product Details

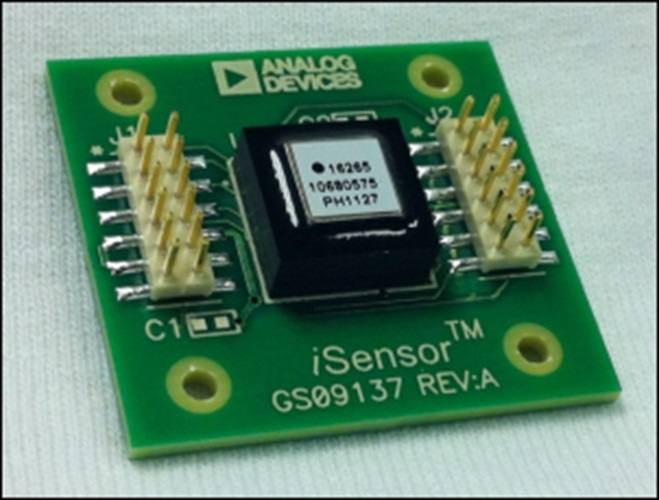

The ADIS16260/PCBZ is a breakout board that provides (1) ADIS16260BCCZ and (1) interface PCB to simplify the process of prototyping during the early stages of system design and evaluation. The ADIS16260BCCZis a fully-calibrated, digital MEMS gyroscope, which provides a serial peripheral interface (SPI) for all digital communications. It is in a 20-lead, LGA package that minimizes board space but does not support typical prototype soldering processes. The interface PCB provides access to the ADIS16260BCCZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
UG-363: ADISUSB User Guide1/18/2012PDF671 kB
-
ADIS16260/ADIS16265/PCBZ Data Sheet (Rev. E)6/14/2016PDF395 K
-
LabVIEW Reference Design for ADIS16260 and ADIS162656/14/2016
-
iSensor® Evaluation Tool6/10/2016
-
ADISUSBZ iSensor® PC-USB Evaluation System (Rev. PrA)12/19/2014PDF1 M
-
Linux Reference Design for ADIS1626511/10/2011WIKI
-
ADIS1626x Evaluation Board/Tool Overview10/26/2009PDF999 kB
-
iSensor® Evaluation Tools Presentation12/18/2008PDF1405 kB
