Overview
Features and Benefits
- Enables quick breadboarding/protoyping
- Easily configurable for unidirectional or bidirectional operation
- Includes provision for current sense resistor
- Easy connection to test equipment
Product Details

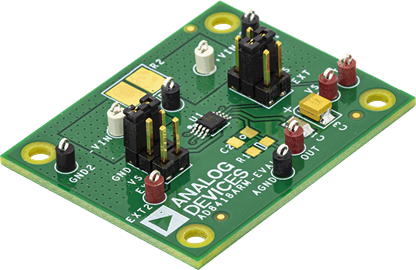

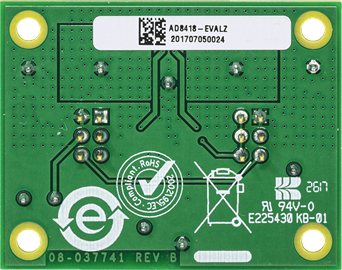

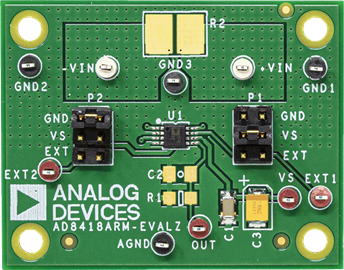

The AD8418-EVALZ is designed to aid in the evaluation of current sense amplifiers.Enables quick breadboarding/protoyping and is easily configurable for unidirectional or bidirectional operation.
The AD8418-EVALZ accommodates the AD8418 in an MSOP package.
The AD8418 data sheet for this device should be consulted in conjunction with this evaluation board user guide documentation.
Documentation & Resources
-
AD8418: Evaluation Board for the Current Sense Amplifier5/22/2014WIKI
-
Customer & Whole Product Support12/12/2024
