VSC060
Enhanced High-Density I²C Backplane Controller
Enhanced I²C Serial Backplane Controller
Part Details
- Up to 96 Bits of User-Definable, Bidirectional, General-Purpose I/O (5V Tolerant)
- Slave Mode I²C Serial Interface
- Integrated Port Bypass, Clock Recovery, and Signal Detect Support for Up to 16 Drives
- Eight Programmable Fan-Speed-Monitoring Inputs
- Eight Programmable Pulse-Width-Modulated Fan Control Outputs
- Pairing of GPIO Pins for Direct Input/Output Signal Routing/Buffering
- Two Clock Input Ranges: 8.0MHz to 12.5MHz (Crystal or External Clock Source) or 32.0MHz to 75.0MHz (External Clock Source)
- Pin-Programmable Addressing for Up to 16 Devices on a Single Serial Bus

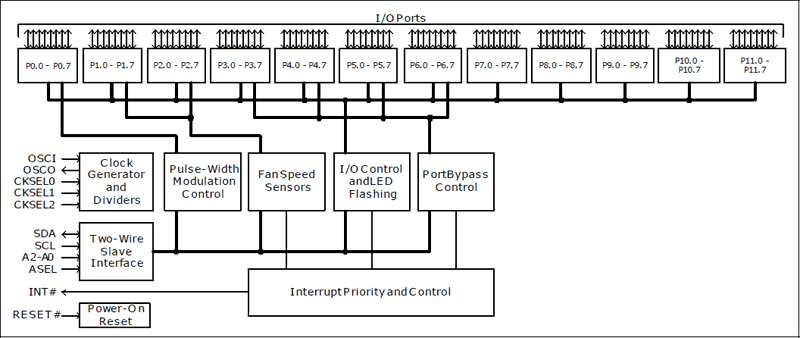

The VSC060 enhanced high-density I²C backplane controller is a CMOS integrated circuit that enables a system designer to reduce system cost by integrating all the digital logic typically required in a storage enclosure. The VSC060 can be used in any embedded control application including parallel SCSI, Fibre Channel, SAS, or SATA where the monitoring and control of a large number of digital I/O signals is required. Programming the VSC060 is easy through a convenient programming model, which reduces the overall duration of the design-in cycle. Data is read and written to the device over an addressable (3-bit) I²C serial interface, allowing multiple VSC060 devices on a single I²C bus.
To receive additional supporting documentation for this device, email .
Applications
- Disk-Based Backup Storage
- Enterprise Storage Environments
- Fabric Attached Storage (FAS) Systems
- Fixed-Content Storage Systems
- JBOD Arrays
- Near-Line Storage Replacement Systems
- Network Attached Stroage (NAS) Systems
- Rack-Mounted Servers with RAID
- Storage Area Network (SAN) Appliances
Documentation
Data Sheet 1
Evaluation Design File 1
This is the most up-to-date revision of the Data Sheet.
