MXD1013

3-in-1 Silicon Delay Line

Not the part you were looking for?

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

Improved Second Source to DS1013
Available in Space-Saving 8-Pin µMAX Package
20mA Supply Current (vs. Dallas' 40mA)
Low Cost
Three Separate Buffered Delays
Delay Tolerance of ±2ns for MXD1013__010 through MXD1013__060
TTL/CMOS-Compatible Logic
Leading- and Trailing-Edge Accuracy
Custom Delays Available

Additional Details

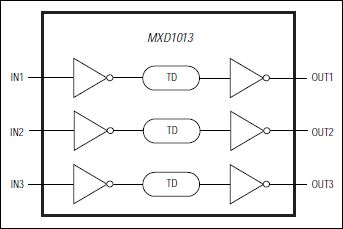

The MXD1013 contains three independent, monolithic, logic-buffered delay lines with delays ranging from 10ns to 200ns. Nominal accuracy is ±2ns for a 10ns to 60ns delay, ±3% for a 70ns to 100ns delay, and ±5% for a 150ns to 200ns delay. Relative to hybrid solutions, these devices offer enhanced performance and higher reliability, and reduce overall cost. Each output can drive up to ten standard 74LS loads.

The MXD1013 is available in multiple versions, each offering a different combination of delay times. It comes in the space-saving 8-pin µMAX® package, as well as a standard 8-pin SO and DIP. It is also offered in industry-standard 16-pin SO and 14-pin DIP packaging, allowing full compatibility with the DS1013 and other delay-line products.

Applications
