MAX96706

14-Bit GMSL Deserializer with Coax or STP Cable Input

Show More showmore-icon

Compact 1.6Gbps Deserializer with Eye-Width Monitor and CRC Protection of Video and Control Data for ADAS Applications

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.2)
Documentation View All Documentation
IBIS Model MAX96706 IBIS Model Download 6.98MB
Part Models 6
1ku List Price Starting From $3.40
Features
  • Ideal for Safety Camera Applications
    • Works with Low-Cost 50Ω Coax (100Ω STP) Cable
    • Error Detection of Video/Control Data
    • High-Immunity Mode for Robust Control-Channel EMC Tolerance
    • Retransmission of Control Data Upon Error
    • Best-in-Class Supply Current: 190mA (max)
    • Adaptive Equalization for 15m Cable at Full Speed
    • 32-Pin (5mm × 5mm) TQFN/SWTQFN Package
    • Horizontal- and Vertical-Sync Encoding and Tracking
  • High-Speed Deserialization for Megapixel Cameras
    • Up to 1.74Gbps Serial-Bit Rate
    • 6.25MHz to 87MHz × 12-Bit + H/V Data
    • 36.66MHz to 116MHz × 12-Bit + H/V Data (through Internal Encoding)
  • Multiple Modes for System Flexibility
    • 9.6kbps to 1Mbps Control Channel in UART, I2C (with Clock Stretch), or UART-to-I2C Modes
    • 2:1 Input Mux for Camera Selection
    • 15 Hardware-Selectable I2C-Device Addresses
    • Pairs with Any Maxim GMSL Serializer
    • Crosspoint Switch Maps Data to any Output
  • Reduces EMI and Shielding Requirements
    • Spread-Spectrum Serial-Input Tracking and Transfer to the Parallel Output
    • 1.7V to 1.9V Core and 1.7V to 3.6V I/O Supply
  • Peripheral Features for System Verification
    • Built-In PRBS Receiver for BER Testing
    • Eye-Width Monitor Allows In-System Test of High-Speed Serial Link
    • Dedicated “Up/Down” GPI for Camera Frame Sync Trigger and Other Uses
  • Meets AEC-Q100 Automotive Specification
    • -40°C to +115°C Operating Temperature Range
    • ±8kV Contact and ±15kV Air IEC 61000-4-2 and ISO 10605 ESD Protection
Additional Details
show more Icon

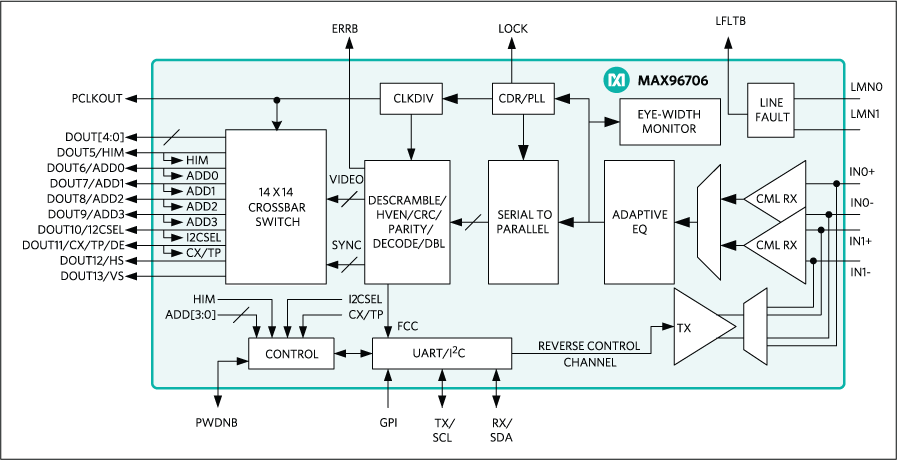

The MAX96706 is a compact deserializer especially suited for automotive camera applications. Features include adaptive equalization and an output crosspoint switch. An embedded control channel operates at 9.6kbps to 1Mbps in UART, I2C, and mixed UART/ I2C modes, allowing programming of serializer, deserializer (SerDes), and camera registers, independent of video timing.

The deserializer can track data from a spread-spectrum serial input. The serial input meets ISO 10605 and IEC 61000-4-2 ESD standards. The core supply range is 1.7V to 1.9V and the I/O supply range is 1.7V to 3.6V. The device is available in a 32-pin (5mm × 5mm) TQFN and SWTQFN package with 0.5mm lead pitch and operates over -40°C to +115°C temperature range.

Applications

  • Automotive Camera Applications
Show More Arrow image
file View Data Sheet (Rev.2)
Documentation View All Documentation
IBIS Model MAX96706 IBIS Model Download 6.98MB
Part Models 6
1ku List Price Starting From $3.40
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX96706

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 11/29/2018
English

MAX96706: 14-Bit GMSL Deserializer with Coax or STP Cable Input Data Sheet (Rev.2)

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/20/2024
English
GMSL1 Channel Specification (Rev.2) redirect icon

1.62 M

download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 06/01/2017
English
Design Solutions 24 - GMSL SerDes Enables ADAS redirect icon

209.71K

download

Download PDF

PDF Vector

HTML

UPDATED 06/01/2018
English
How to Use GMSL Line-Fault Detection for Power Over Coax redirect icon

PDF Vector

HTML

UPDATED 08/20/2018
Japanese
Power over CoaxにおけるGMSLラインフォルト検出の使用方法 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Video

1

Thumbnail Image

Video

2022-10-04

21:16

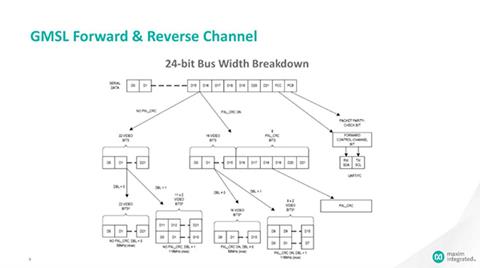

Fundamentals of GMSL SerDes Technology

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX96706GTJ+ 32-TQFN-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX96706GTJ+T 32-TQFN-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX96706GTJ/V+ 32-TQFN-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX96706GTJ/V+T 32-TQFN-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX96706GTJ/VY+ 32-TQFN_SW-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX96706GTJ/VY+T 32-TQFN_SW-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 17, 2018

- 1722C

ASSEMBLY

MAX96706GTJ+

PRODUCTION

MAX96706GTJ+T

PRODUCTION

pdf

pcn_1722c

external-icon

Apr 10, 2020

- 1950

ASSEMBLY

MAX96706GTJ/VY+

PRODUCTION

MAX96706GTJ/VY+T

PRODUCTION

pdf

pcn_1950

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 17, 2018

- 1722C

arrow down

ASSEMBLY

MAX96706GTJ+

PRODUCTION

MAX96706GTJ+T

PRODUCTION

pdf

pcn_1722c

external-icon
Apr 10, 2020

- 1950

arrow down

ASSEMBLY

MAX96706GTJ/VY+

PRODUCTION

MAX96706GTJ/VY+T

PRODUCTION

pdf

pcn_1950

external-icon

Software & Part Ecosystem

Evaluation Kits 2

MAX96708COAXEVKIT

Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

zoom

MAX96708COAXEVKIT

Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

download icon

Download

 print icon

Print
MAX96708COAXEVKIT
Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

Features and Benefits

  • Accepts GMSL Serial Data through FAKRA Connectors as Inputs and Outputs 16-Bit Parallel Output Data
  • Power Over Coax (POC) Capable
  • Windows Vista- and Windows 7-Compatible Software
  • USB-Controlled Interface (Cable Included)
  • USB Powered
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX96706/MAX96708 evaluation kit (EV kit) provides a proven design to evaluate the MAX96706 and MAX96708 high-bandwidth gigabit multimedia serial link (GMSL) deserializers with spread spectrum and fullduplex control channel, through the use of a standard FAKRA coax or STP cable. The EV kit also includes Windows Vista®- and Windows 7-compatible software that provides a simple graphical user interface (GUI) for exercising features of the device. The EV kit comes with a MAX96706GTJ+ or MAX96708GTJ+ IC installed.

For complete GMSL evaluation, using a standard FAKRA coaxial cable, order the MAX96706 or MAX96708 EV kit and a companion serializer board (e.g., the MAX96705 or MAX96711 EV kit, referenced in this document). For testing with STP cable, also order the MAXCOAX2STP-HSD adapter kit and refer to its data sheet. Only one adapter kit is required per link (connecting the serializer and deserializer boards).

Applications

  • Automotive Camera Applications

MAX96706COAXEVKIT

Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

zoom

MAX96706COAXEVKIT

Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

download icon

Download

 print icon

Print
MAX96706COAXEVKIT
Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

Features and Benefits

  • Accepts GMSL Serial Data through FAKRA Connectors as Inputs and Outputs 16-Bit Parallel Output Data
  • Power Over Coax (POC) Capable
  • Windows Vista- and Windows 7-Compatible Software
  • USB-Controlled Interface (Cable Included)
  • USB Powered
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX96706/MAX96708 evaluation kit (EV kit) provides a proven design to evaluate the MAX96706 and MAX96708 high-bandwidth gigabit multimedia serial link (GMSL) deserializers with spread spectrum and fullduplex control channel, through the use of a standard FAKRA coax or STP cable. The EV kit also includes Windows Vista®- and Windows 7-compatible software that provides a simple graphical user interface (GUI) for exercising features of the device. The EV kit comes with a MAX96706GTJ+ or MAX96708GTJ+ IC installed.

For complete GMSL evaluation, using a standard FAKRA coaxial cable, order the MAX96706 or MAX96708 EV kit and a companion serializer board (e.g., the MAX96705 or MAX96711 EV kit, referenced in this document). For testing with STP cable, also order the MAXCOAX2STP-HSD adapter kit and refer to its data sheet. Only one adapter kit is required per link (connecting the serializer and deserializer boards).

Applications

  • Automotive Camera Applications

Evaluation Kits2

MAX96708COAXEVKIT

Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable

MAX96706COAXEVKIT

Evaluation Kit for the MAX96706/MAX96708 with Coax or STP Cable
