MAX9476

Low-Jitter, 8kHz Reference Clock Synthesizer Outputs 35.328MHz

Clock Generator is Optimized for xDSL CO Line Cards and Telecom Systems Requiring Low-Jitter Clock Outputs

Viewing:

Overview

8kHz Input-Reference CLK
4ps_RMS (typ) Output Jitter
High-Jitter Rejection on the Reference CLK
Synthesizer Locks to the 8kHz Reference with a ±100ppm Range
Output Frequency: 35.328MHz
Six Buffered LVTTL Low-Jitter Outputs
One 8kHz Reference CLK Relay Output
+3.3V Supply Operation
24-Pin TSSOP Package

The MAX9476 low-cost, high-performance clock synthesizer with an 8kHz input reference clock provides six buffered LVTTL clock outputs at 35.328MHz. The clock synthesizer can be used to generate the clocks for systems using T1, E1, T3, E3, and xDSL.

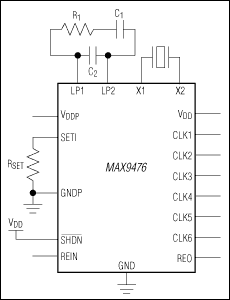

The MAX9476 features a phase-lock loop (PLL) that uses a voltage-controlled crystal oscillator (VCXO). The internal PLL phase locks the external crystal (35.328MHz) to the 8kHz input reference clock. In addition, this device generates a jitter-suppressed output that provides a better source for the reference clock relay.

The MAX9476 is available in a 24-pin TSSOP package and operates over the extended operating temperature range of -40°C to +85°C and a single +3V to +3.6V power-supply range. For using lower value external crystals, refer to the MAX9486 data sheet.
