MAX9272A

NOT RECOMMENDED FOR NEW DESIGNS

MAX9272A

28-Bit GMSL Deserializer for Coax or STP Cable

Rugged 1.5Gbps Deserializer Flexibly Drives Up to 28 Bits on Coax or STP Cables in a Small 7mm × 7mm TQFN Package

NOT RECOMMENDED FOR NEW DESIGNS

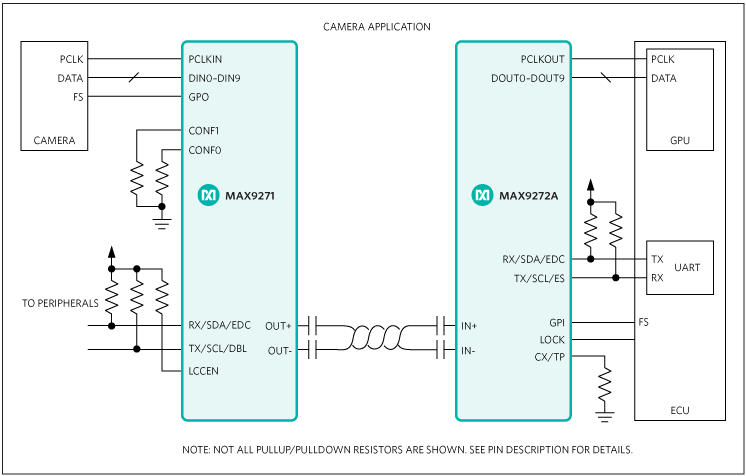

MAX9272A: Typical Operating Circuit slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

Ideal for Camera Applications
- Works with Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP
- Error Detection/Correction
- 9.6kbps to 1Mbps Control Channel in I²C-to-I²C Mode with Clock-Stretch Capability
- Best-in-Class Supply Current: 90mA (max)
- Double-Rate Clock for Megapixel Cameras
- Cable Equalization Allows 15m Cable at Full Speed
- 48-Pin (7mm x 7mm) TQFN-EP Package with 0.5mm Lead Pitch
High-Speed Data Deserialization for Megapixel Cameras
- Up to 1.5Gbps Serial-Bit Rate with Single or Double Output: 6.25MHz to 100MHz Clock
Multiple Control-Channel Modes for System Flexibility
- 9.6kbps to 1Mbps Control Channel in UART-to-UART or UART-to-I²C Modes
Reduces EMI and Shielding Requirements
- Input Programmable for 100mV to 500mV
- Single-Ended or 50mV to 400mV Differential
- Programmable Spread Spectrum on the Parallel Output Reduces EMI
- Tracks Spread Spectrum on Serial Input
Peripheral Features for Camera Power-Up and Verification
- Built-In PRBS Checker for BER Testing of the Serial Link
- Two GPIO Ports
- Dedicated “Up/Down” GPI for Camera Frame Sync Trigger and Other Uses
- Remote/Local Wake-Up from Sleep Mode
Meets Rigorous Automotive and Industrial Requirements
- -40°C to +105°C Operating Temperature
- ±10kV Contact and ±15kV Air IEC 61000-4-2 ESD Protection
- ±10kV Contact and ±30kV Air ISO 10605 ESD Protection

Additional Details

The MAX9272A compact deserializer is designed to interface with a GMSL serializer over 50Ω coax or 100Ω shielded twisted-pair (STP) cable. The device pairs with the MAX9271 or MAX9273 serializers.

The parallel output is programmable for single or double output. Double output strobes out half of a parallel word on each pixel clock cycle. Double output can be used with GMSL serializers that have the double-input feature.

The device features an embedded control channel that operates at 9.6kbps to 1Mbps. Using the control channel, a microcontroller (µC) can program the serializer/deserializer and peripheral device registers at any time, independent of video timing. Two programmable GPIO ports and a continuously sampled GPI input are available.

For use with longer cables, the device has a programmable equalizer. Programmable spread spectrum is available on the parallel output. The serial input meets ISO 10605 and IEC 61000-4-2 ESD standards. The core supply range is 1.7V to 1.9V and the I/O supply range is 1.7V to 3.6V. The device is available in a 48-pin (7mm x 7mm) TQFN-EP package with 0.5mm lead pitch and operates over the -40°C to +105°C temperature range.

Applications

Automotive Camera Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Technical Documents 2

MAX9272A: 28-Bit GMSL Deserializer for Coax or STP Cable Data Sheet (Rev.0) 05/21/2014

GMSL1 Channel Specification (Rev.2) 09/20/2024

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX9272AGTM+	48-TQFN-7X7X0.75	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX9272AGTM+T	48-TQFN-7X7X0.75	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX9272AGTM+
Pin/Package Drawing
48-TQFN-7X7X0.75
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX9272AGTM+T
Pin/Package Drawing
48-TQFN-7X7X0.75
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Companion Parts 1

Parts	Product Life Cycle	Description
Gigabit Multimedia Serial Link (GMSL) 1
MAX9271	PRODUCTION	16-Bit GMSL Serializer with Coax or STP Cable Drive

MAXCOAX2STP-HSD

Evaluation of Maxim Serializers/Deserializers with STP Cable

MAXCOAX2STP-HSD

Evaluation of Maxim Serializers/Deserializers with STP Cable

Features and Benefits

Allows Utilization of Coax EV Kits for Evaluating Operation with STP Cables, Eliminating Need to Purchase a Set of STP Evaluation Boards
Only One Adapter Kit Needed to Use with Coax EV Kits for Different Products

Buy Now View Details

Product Detail

The MAXCOAX2STP-HSD coaxial-to-STP cable adapter kit allows operation of coax evaluation kits (EV kits) for Maxim serializer/deserializer products with STP cables assembled with Rosenberger STP connectors. See Table 1 for a list of products currently supported.

The adapter kit includes one Serializer adapter board with two coax FAKRA female connectors and a Rosenberger male STP connector; one Deserializer adapter board with two coax FAKRA female connectors and a Rosenberger male STP connector; and a 2m STP cable assembled with two Rosenberger female STP connectors. The photo in Figure 1, in the full data sheet, shows the adapter kit components.
