MAX9175
670MHz LVDS-to-LVDS and Anything-to-LVDS 1:2 Splitters
Industry's First 670MHz Anything-to-LVDS Splitter
Top
Overview
Features and Benefits
- 1.0ps(RMS) Jitter (max) at 670MHz
- 80ps(P-P) Jitter (max) at 800Mbps Data Rate
- +3.3V Supply
- LVDS Fail-Safe Inputs (MAX9174)
- Anything Input (MAX9175) Accepts Differential CML/LVDS/LVPECL
- Power-Down Inputs Tolerate -1.0V and VCC + 1.0V
- Low-Power CMOS Design
- 10-Lead µMAX and Thin QFN Packages
- -40°C to +85°C Operating Temperature Range
- Conform to ANSI TIA/EIA-644 LVDS Standard
- IEC 61000-4-2 Level 4 ESD Rating
Product Details
The MAX9174/MAX9175 are 670MHz, low-jitter, low-skew 1:2 splitters ideal for protection switching, loopback, and clock and signal distribution. The devices feature ultra-low 1.0ps(RMS) random jitter (max) that ensures reliable operation in high-speed links that are highly sensitive to timing errors.
The MAX9174 has a fail-safe LVDS input and LVDS outputs. The MAX9175 has an anything differential input (CML/LVDS/LVPECL) and LVDS outputs. The outputs can be put into high impedance using the power-down inputs. The MAX9174 features a fail-safe circuit that drives the outputs high when the input is open, undriven and shorted, or undriven and terminated. The MAX9175 has a bias circuit that forces the outputs high when the input is open. The power-down inputs are compatible with standard LVTTL/LVCMOS logic. The power-down inputs tolerate undershoot of -1V and overshoot of VCC + 1V. The MAX9174/MAX9175 are available in 10-pin µMAX and 10-lead thin QFN with exposed pad packages, and operate from a single +3.3V supply over the -40°C to +85°C temperature range.
Applications

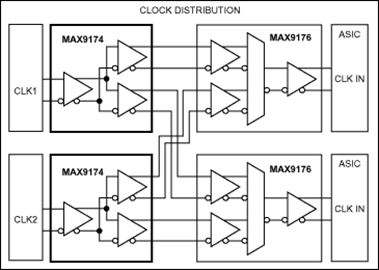

- Clock Distribution
- Loopback
- Protection Switching
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
