MAX9155

PRODUCTION

Low-Jitter, Low-Noise LVDS Repeater in an SC70 Package

Part Models
2
1ku List Price
Starting From $2.75
Viewing:

Part Details

  • Tiny SC70 Package
  • Ultra-Low Jitter
    • 23psP-P Added Deterministic Jitter
    • (223-1 PRBS)
    • 0.6psRMS Added Random Jitter
  • 0.5ns (min) Transition Time Minimizes Radiated Noise
  • 200Mbps Guaranteed Data Rate
  • Fail-Safe Circuit Sets Output High for Undriven Inputs (Open, Terminated, or Shorted)
  • Low 10mA Supply Current
  • Low 6mA Supply Current in Fail-Safe
  • Conforms to ANSI/EIA/TIA-644 LVDS Standard
  • High-Impedance Inputs and Outputs in Power-Down Mode
MAX9155
Low-Jitter, Low-Noise LVDS Repeater in an SC70 Package

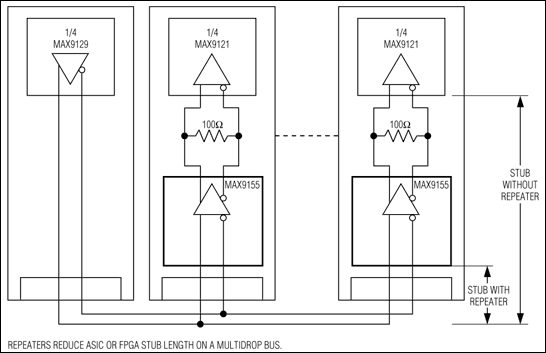

MAX9155: Typical Operating Circuit
