MAX9130

PRODUCTION

Single 500Mbps LVDS Line Receiver in SC70

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: Starting From $2.96

Viewing:

Overview

Space-Saving SC70 Package (50% Smaller than SOT23)

Guaranteed 500Mbps Data Rate

Low 250ps (max) Pulse Skew

High-Impedance LVDS Inputs When Powered Off Allow Hot Swapping

Conforms to ANSI TIA/EIA-644 LVDS Standard

Single +3.3V Supply

Fail-Safe Circuit Sets Output High for Undriven Inputs (Open, Terminated, or Shorted)

Low 150µA (typ) Supply Current in Fail-Safe Mode

The MAX9130 is a single low-voltage differential signaling (LVDS) line receiver ideal for applications requiring high data rates, low power, and low noise. The device is guaranteed to receive data at speeds up to 500Mbps (250MHz).

The MAX9130 accepts an LVDS differential input and translates it to an LVTTL/LVCMOS output. The fail-safe feature sets the output high when the inputs are undriven and open, terminated, or shorted. The device supports a wide common-mode input range, allowing a ground potential difference and common-mode noise between the driver and the receiver. The MAX9130 conforms to the ANSI/TIA/EIA-644 LVDS standard.

The MAX9130 operates from a single +3.3V supply, and is specified for operation from -40°C to +85°C. It is available in a space-saving 6-pin SC70 package. Refer to the MAX9110/MAX9112 data sheet for single/dual LVDS line drivers. Refer to the MAX9115 for a lower speed (200Mbps) single LVDS line receiver in SC70.

Applications

Cell Phone Base Stations

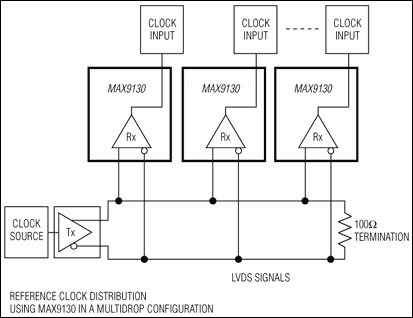

Clock/Data Distribution
Digital Cross-Connects
DSLAM
Network Routers and Switches

Part Models: 3
1ku List Price: Starting From $2.96

Documentation

Data Sheet 1

MAX9130: Single 500Mbps LVDS Line Receiver in SC70 Data Sheet (Rev.0) 11/14/2001

Reliability Data 1

MAX9130 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX9130EXT+	Single Chip Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX9130EXT+T	Single Chip Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX9130EXT/GG8	Single Chip Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 1

MAX9130 IBIS Model
