MAX9115

Single LVDS Line Receiver in SC70

Viewing:

Overview

Space-Saving SC70 Package (50% Smaller than SOT23)
Guaranteed 200Mbps Data Rate
Low 350ps (max) Pulse Skew
High-Impedance LVDS Inputs When Powered Off Allow Hot Swapping
Conforms to ANSI TIA/EIA-644 LVDS Standard
Single +3.3V Supply
Fail-Safe Circuit Sets Output High for Undriven Inputs (Open, Terminated, or Shorted)
Low 150µA (typ) Supply Current in Fail-Safe Mode

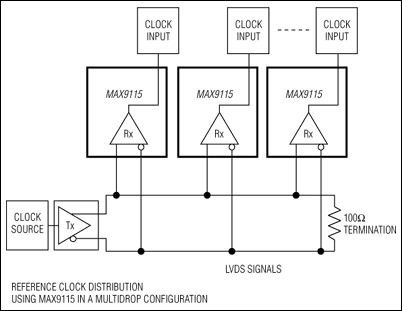

The MAX9115 is a single low-voltage differential signaling (LVDS) line receiver ideal for applications requiring high data rates, low power, and low noise. The device is guaranteed to receive data at speeds up to 200Mbps (100MHz).

The MAX9115 accepts an LVDS differential input and translates it to an LVTTL/LVCMOS output. The fail-safe feature sets the output high when the inputs are undriven and open, terminated, or shorted. The device supports a wide common-mode input range, allowing a ground potential difference and common-mode noise between the driver and the receiver. The MAX9115 conforms to the ANSI TIA/EIA-644 LVDS standard.

The MAX9115 operates from a single +3.3V supply, and is specified for operation from -40°C to +85°C. It is available in a space-saving 5-pin SC70 package. Refer to the MAX9110/MAX9112 data sheet for single/dual LVDS line drivers.

Applications
