MAX66301

DeepCover Secure Authenticator with SHA-3 and RFID Reader

Show More showmore-icon

Combines an Integrated RFID Reader for Contactless Communication at 13.56MHz and a SHA-3 Secure Authenticator Coprocessor

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $6.69
Features
  • Secure, Contactless Host Authenticator
    • ISO/IEC 15693 and 14443 Type A Standard Compliant
    • SHA-3 Engine to Run a Symmetric Key-Based Bidirectional Secure Authentication
    • Four 32-Byte Pages of User Memory
    • Four Main Secrets with Multiple Programmable Protection Options
    • 76-Byte Scratchpad in SRAM
    • True Hardware Random-Number Generator
    • Unique 64-Bit Serial Number
  • Design Flexibility Supports Diverse Applications
    • UART and SPI Interface Ports
    • Power-Down Mode Selectable by an Input Pin (Low, Standby Power)
    • Antenna Short-Circuit Protection
    • Compatible with 3.3V or 5V Supply Voltages
    • ±2kV HBM ESD Protection
  • Antenna Short-Circuit Protection Enhances System Ruggedness
  • Scalable 13.56MHz Analog Front-End Provides Support for Multiple Antenna Configurations
    • Single- or Double-Antenna Driver Using On-Off Keying (OOK) Modulation
    • User-Selectable ASK Uplink Modulations Index Adjustable from 7% to 30%
    • High-Output RF Power of up to 200mW
    • Multiple Receiver Inputs for High-Communication Reliability
    • Built-In Receiver Lowpass-Filter Cutoff Frequencies Selectable Between 400kHz and 1MHz
    • Selectable Built-In Receiver Highpass-Filter Cutoff Frequency: 100kHz, 200kHz, and 300kHz
    • Selectable Receive Gain from 0dB up to 40dB
    • Multiple Subcarrier Receiving Compatibility
    • (212kHz and 424kHz)
Additional Details
show more Icon

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

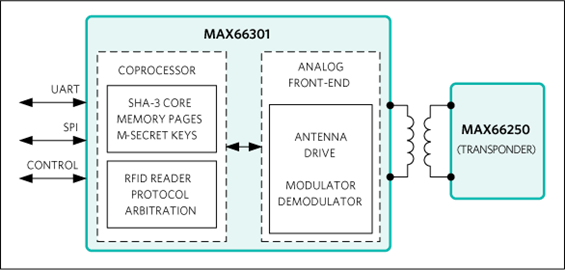

The MAX66301 DeepCover secure authenticator combines a highly integrated RFID reader for contactless communication at 13.56MHz and a SHA-3 secure authenticator coprocessor. The RFID IC reader covers both the ISO 14443 Type A and ISO 15693 standards. The authenticator coprocessor's engine is based on the FIPS 202 standard and supports secure challenge-and-response authentication when paired with peripherals such as the MAX66250 transponder. An embedded host processor can easily interface with the MAX66301 using its UART or SPI interface.

APPLICATIONS

  • Secure Access Control
  • Asset-Tracking Readers
  • Authentication of Consumables
    • Readers in Printers (Ink Cartridge)
    • Blood Glucose Meters/Monitors
  • Handheld Reader Modules
Part Models 2
1ku List Price Starting From $6.69

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX66301ETN+
  • HTML
  • HTML
MAX66301ETN+T
  • HTML
  • HTML
Evaluation Kit

Evaluation Kits 1

reference details image

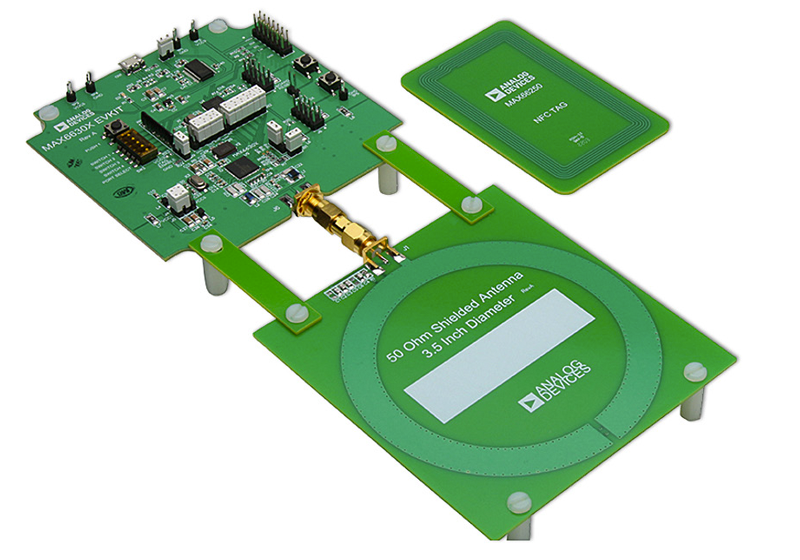

MAX66301-25XEVKIT
